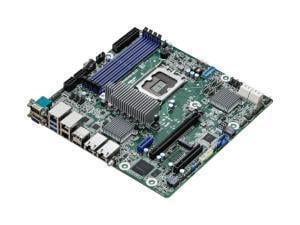

Asrock Rack z690 Micro-ATX motherboard, 2x 10Gbe, 2x 1GBe, IPMI

Asrock Rack z690 Micro-ATX motherboard, 2x 10Gbe, 2x 1GBe, IPMI overview

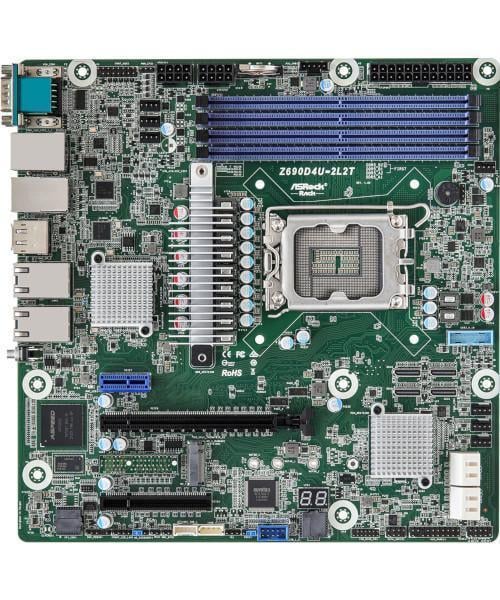

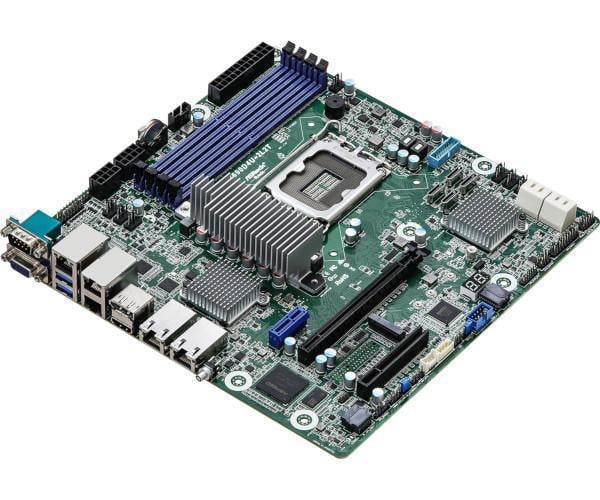

Z690D4U-2L2T

- DDR5 non-ECC up to 4400MT/s
- Intel Socket LGA1700 : Support for Intel ® Core™ Processors
- Dual Channel DDR5 : 4*DIMMs Memory Module Support
- Supports 1 M.2 (PCIe3.0 x4) - 2 RJ45 (10GbE) by Intel® X710
- 2 RJ45 (1GbE) by Intel® i210
- Up to 8 SATA 6Gb/s
- Remote Management (IPMI)

CPU Support	Supports Intel® Core™ 14th Gen, 13th & 12th Gen Intel® Core™, Pentium® and Celeron® series processors
CPU Socket	LGA1700
Chipset	Z690
Memory Support	4 DIMM slots (2DPC) Dual Channel Technology Supporting up to 192GB on Intel® Core™ 14th Gen, 13th Gen Intel® Core™ processors Supporting up to 128GB on 12th Gen Intel® Core™ processors Supports up to 4400 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU
Expansion Slots	CPU: PCIe x 16: SLOT6: PCIe4.0 x16* SLOT6 auto-switch to PCIe4.0 x8 when SLOT4 occupied PCIe x 8: SLOT4: PCIe4.0 x8 Chipset: PCIe x 1: SLOT7: PCIe3.0 x1
Onboard Graphics	ASPEED AST2600 1 DB15 (VGA) Intel® Integrated Processor Graphics: 1 HDMI, 1 DisplayPort
Storage	Chipset>: 1 M-key (PCIe3.0x4) [PCH]; support 2280/2260/2242/2230 form factor 4 SATA 7-pin, 1 OCuLink for 4 SATA
RAID	RAID 0/1/5/10 support for SATA storage devices
USB Rear I/O	2 Type A (USB3.2 Gen1)
USB Internal Connectors	1 (19-pin, 2 USB3.2 Gen1) 1 (9-pin, 2 USB2.0)
LAN	2 RJ45(10GbE) 2 RJ45(1GbE) 1 dedicated IPMI

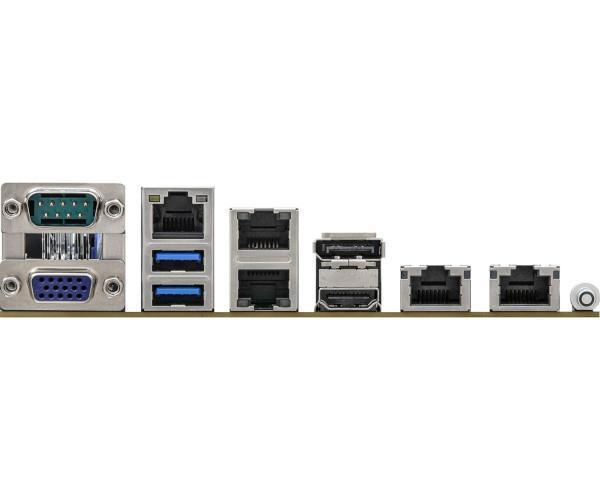

Back Panel Connectors	UID Button/LED: 1 x button w/ LED VGA Port: 1 x DB15 (VGA), 1 x HDMI, 1 x DisplayPort Serial Port: 1 x DB9 (COM) USB 3.2 Gen1 Port: 2 x Type A (USB3.2 Gen1) RJ45: 2 x RJ45(10GbE), 2 x RJ45(1GbE), 1 x dedicated IPMI
Internal Connectors	Fan and Cooling 7 x system fan (PWM) headers Power 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Storage 1 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors USB 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 headers Miscellaneous 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x Trusted Platform Module header
Form Factor	Micro-ATX 244mm x 244mm
Operating System Support	Microsoft® Windows®: Windows® 10 (64 bit) Windows® 11 (64 bit) Linux: RedHat Enterprise Linux Server 8.5 (64 bit) CentOS 8.5 (64 bit) SUSE SLES 15.2 (64 bit) UBuntu 21.10 (64 bit)
