90MB1GX0-M0EAY0, Micro ATX, AM5, DDR5, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 1 x M.2, 4 x SATA, 1 x 1 Gb LAN, HDMI, Display Port
£95.70 inc vat
£79.75 ex vat
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME A620AM-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| CPU Support | Supports AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD A620A Chipset |
| Memory Support | 2 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports Memoru Overclocking to 7600Mhz+ (8000 Series) & 7200Mhz (9000 + 7000 Series) NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620A Chipset 1 x PCIe 3.0 x1 slot |
| Onboard Graphics | 1 x HDMI 1 x DisplayPort NOTE: Display support varies on CPU |
| Storage | 6 x SATA 6Gb/s 1 x M.2 Key M, 2280/2260/2242, (PCIe 4.0 x4 Mode) |
| RAID | AMD RAIDXpert2 Technology*
Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types. |
| USB Rear I/O | Rear USB 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| USB Internal Connectors | USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| LAN | 1 x Realtek 1Gb Ethernet |

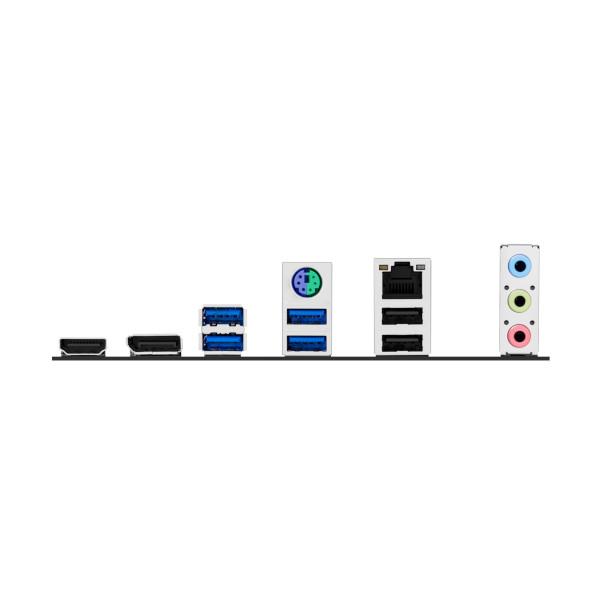

| Back Panel Connectors | 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port |
| Internal Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 1 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| Form Factor | Micro-ATX 226mm x 221mm |
