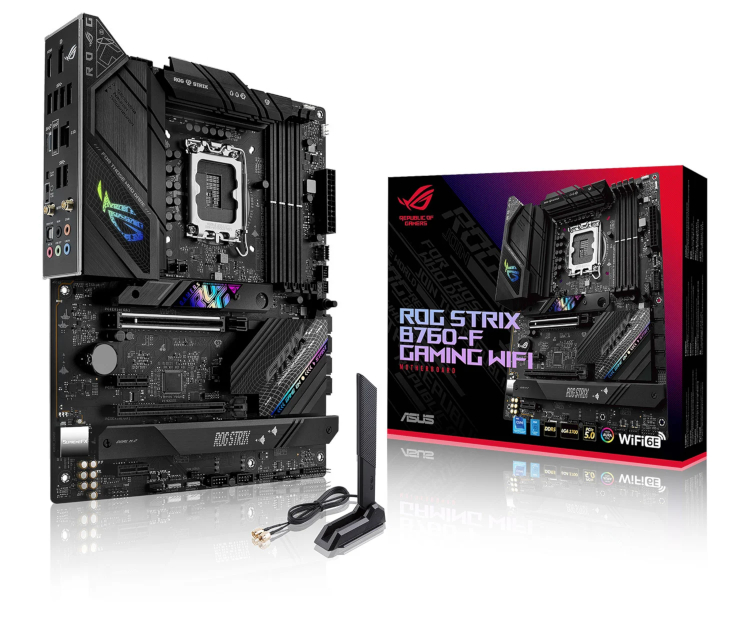

ROG Strix B760-F Gaming WIFI, ATX, LGA1700, DDR5, 1 x PCIe 5.0 x 16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 3 x M.2, 2.5GB LAN, WIFI 6E
£228.98
£183.98 inc vat
£153.32 ex vat
You save £45.00
Leap into the future with the ROG Strix B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyperfast WiFi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.
CPU Support | 13th Gen Intel Core processors 12th Gen Intel Core processors |
Chipset | Intel B760 |
Memory Support | 4 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports memory overclocking up to 7800MHz+ NOTE: Actual Memory data rate varies on CPU |
Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 3.0 x16 (x4 Speed) 2 x PCIe 3.0 x1 |
Onboard Graphics | 1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU |
Storage | 4 x SATA 6Gb/s 2 x M.2 Key M, 2242/2260/2280, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280/22110, (PCIe 4.0 x4 Mode) |
RAID | 0/1/5/10 |
USB Rear I/O | 1 x USB 3.2 Gen 2x2 Type-C 1 x USB 3.2 Gen 2 Type-A 6 x USB 3.2 Gen 1 Type-A |
USB Internal Connectors | 1 x USB 3.2 Gen 2 (Supports 1 x USB 3.2 Gen 2 Type-C) 1 x USB 3.2 Gen 1 headers (Supports up to 2 x USB 3.2 Gen 1) 2 x USB 2.0 headers (Supports up to 4 x USB 2.0) |
Thunderbolt | Thunderbolt (USB4) header |
RGB LED Connectors | 3 x Addressable Gen 2 headers 1 x Aura RGB header |
Audio | ROG SupremeFX (ALC4080) 8-Channel (7.1) HD Audio |
LAN | 1 x Intel 2.5GB LAN |
WIRELESS | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 6 x USB 3.2 Gen 1 ports (6 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
Internal Connectors | Fan and Cooling Connectors 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Connectors 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage Connectors 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB Headers 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header 1 x Thermal Sensor header |
Form Factor | ATX 305mm x 244mm |
