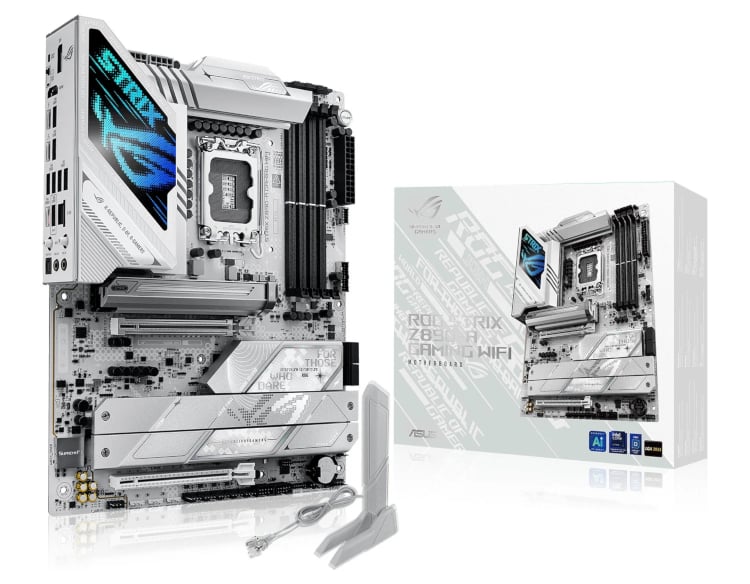

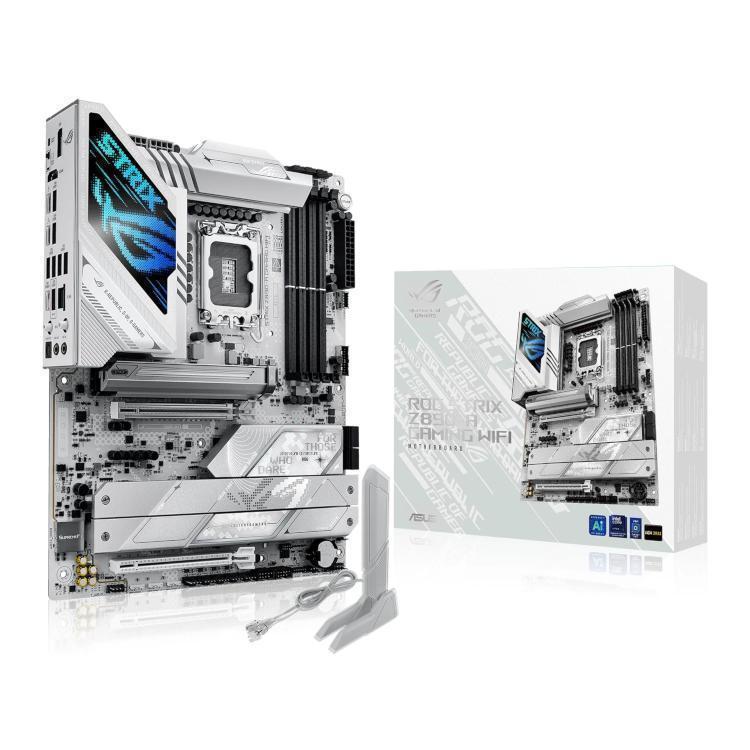

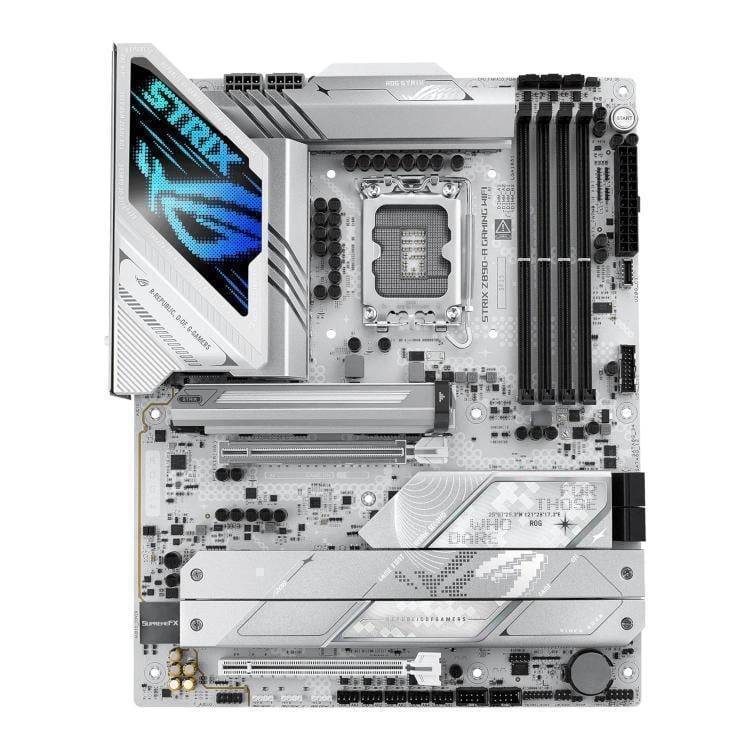

ROG STRIX Z890-A GAMING WIFI, ATX, LGA1851, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 5 x M.2, 4 x SATA, 1 x 2.5 Gb LAN, Wi-Fi 7, USB4
£433.98
£379.98 inc vat
£316.65 ex vat
You save £54.00
Or £16.41 for 24 monthswith 10% deposit of £38.00
With Thunderbolt 4, PCIe 5.0, and Polymo lighting, the ROG Strix Z890-A delivers lightning-fast data transfers, exceptional connectivity and a customizable aesthetic that can be subtle or bold. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Chipset | Z890 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up 192GB Supports up to 8600 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x HDMI 2.1 1 x DisplayPort 2 x Type-C Thunderbolt 4 NOTE: Display support varies on CPU |
| Storage |
Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s |
| RAID | SATA & NVMe Devices: RAID 0/1/5/10* *NOTE: M.2 slot from CPU only supports RAID 0/1/5 |
| USB Rear I/O | 2 x Thunderbolt 4 ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) |
| USB Internal Connectors | 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen2 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Audio cover |
| LAN | 1 x Intel 2.5Gb Ethernet |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4 |

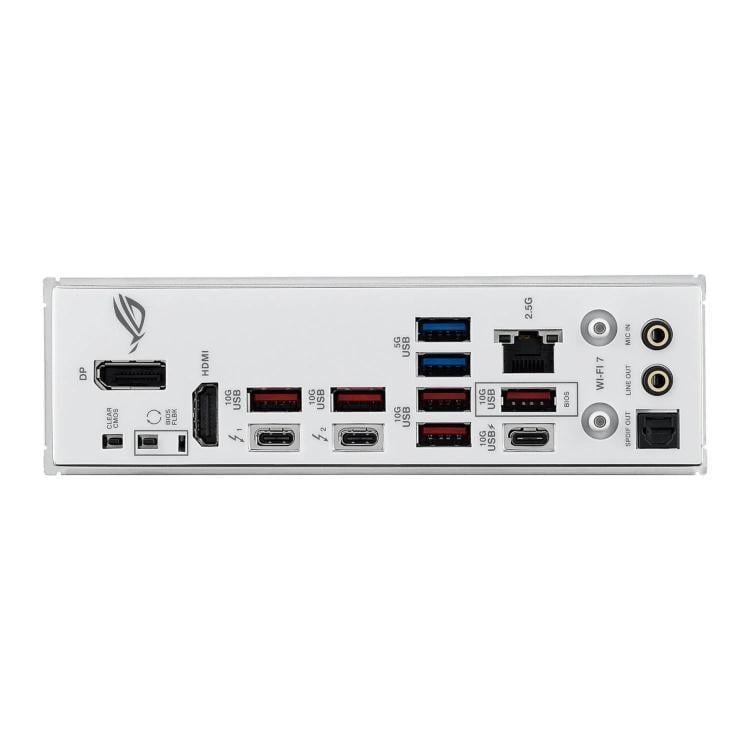

| Back Panel Connectors | 2 x Thunderbolt 4 ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD/PPD Fast-charge) 2 x USB 5Gbps ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal Connectors |
Fan and Cooling 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
