Micro-ATX, AM4, DDR4, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2, 4 x SATA, 1 x HDMI, 1 x VGA, 1 x LAN, 2 x USB 2.0, 4 x USB 3.2
£77.99 inc vat
£64.99 ex vat
AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+
Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology
Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
| CPU Support | Supports AMD Ryzen 1000/2000/3000/4000/5000 Series Desktop Processors |
| Chipset | AMD A520 Chipset |
| Memory Support | 4 x DDR4 memory slots supporting up 128GB Dual Channel Technology Supports up to 4866Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | AMD Ryzen Desktop Processors 1 x PCIe 3.0 x16 slot AMD A520 Chipset 2 x PCIe 3.0 x1 slotz |
| Onboard Graphics | 1 x D-Sub (VGA) 1 x DisplayPort 1.2 1 x HDMI 2.1 NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) |
| RAID | Sata Raid Support: RAID 0/1/10 |
| USB Rear I/O | 2 x USB 2.0 4 x USB 3.2 Gen1 Type-A |
| USB Internal Connectors | 2 x USB 2.0 Header 1 x USB 3.2 Gen1 Header |
| RGB LED Connectors | 2 x Addressable Gen 2 headers |
| Audio | Realtek ALC887 7.1 HD Audio |
| LAN | 1 x Realtek 1GB LAN |
| WIRELESS | Wi-Fi 5 Wi-Fi 5 (802.11ac) Bluetooth® v5 |

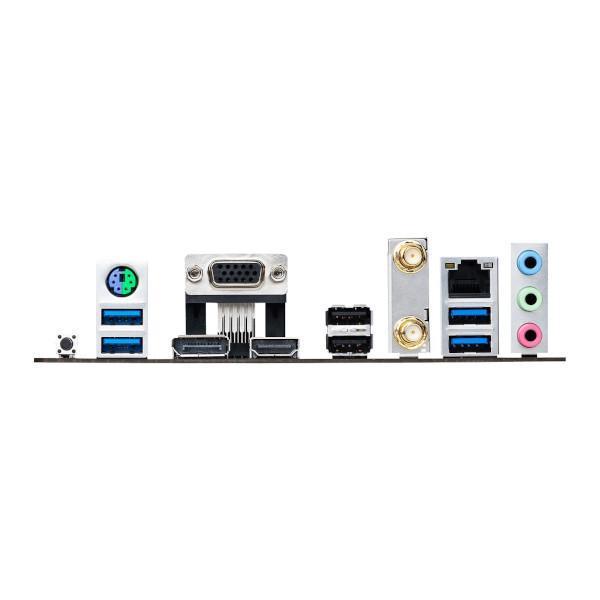

| Back Panel Connectors | 1 x BIOS Flashback Button 1 x D-Sub (VGA) 1 x DisplayPort 1 x HDMI 1 x Headphone-Out 1 x Line In 1 x Mic-In 1 x PS/2 Keyboard/Mouse Combo 1 x RJ-45 2 x USB 2.0 4 x USB 3.2 Gen1 Type-A 1 x WiFi Module |
| Internal Connectors |
Fan and Cooling 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) Storage 1 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 2.0 Header 1 x USB 3.2 Gen1 Header Miscellaneous 2 x Aura Addressable Gen2 Header 2 x Aura RGB Header 1 x Clear CMOS Header 1 x Front Panel Audio Header 1 x S/PDIF-Out Header 1 x Serial (COM) Header 1 x speaker header 1 x System panel connector 1 x TPM (SPI_TPM) header |
| Form Factor | Micro-ATX 244mm x 244mm |
