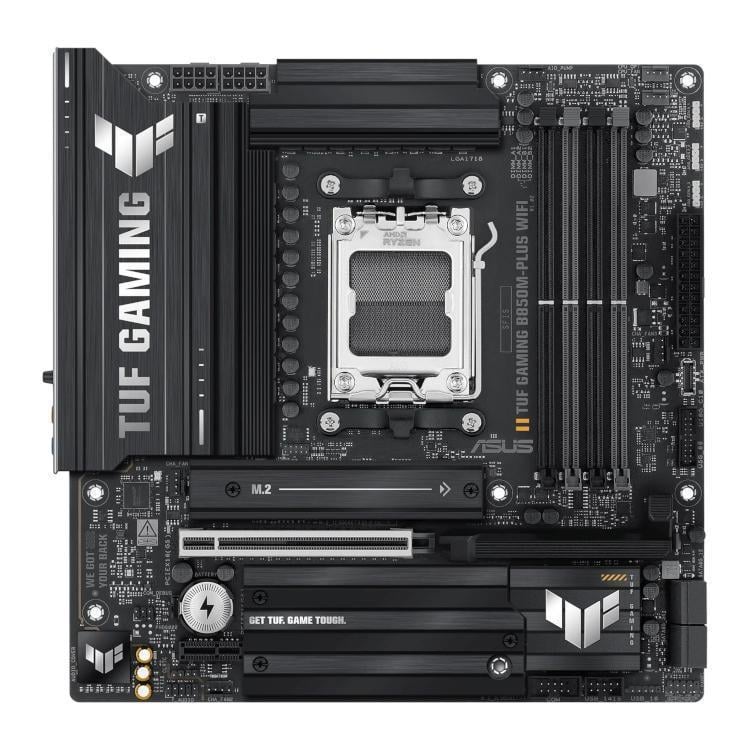

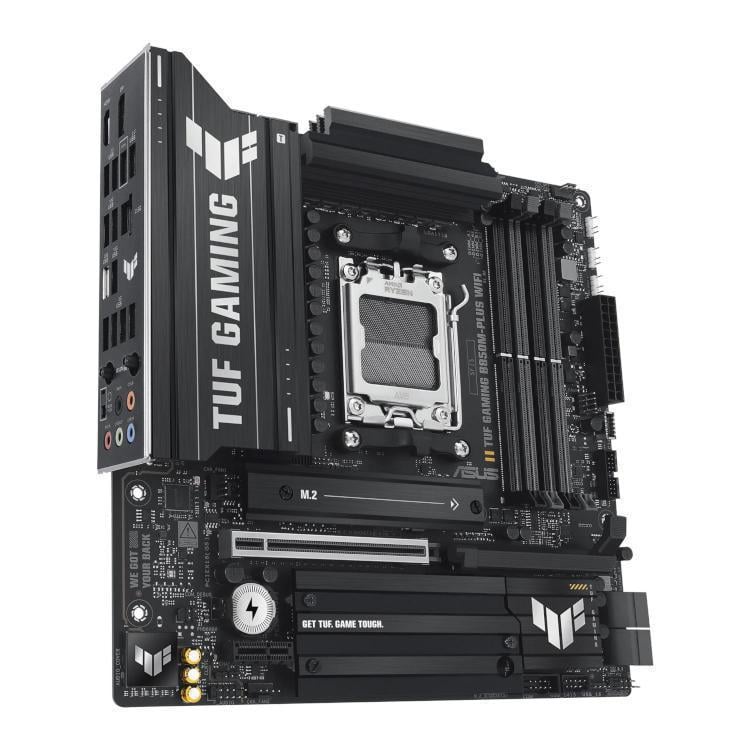

ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Chipset AM5 Micro ATX Motherboard - 90MB1IY0-M0EAY0

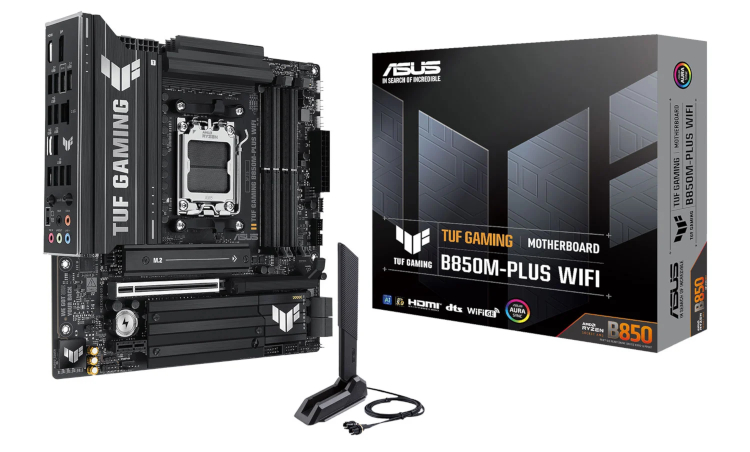

ASUS TUF GAMING B850M-PLUS WIFI AMD B850 Chipset (AM5) Micro ATX Motherboard overview

TUF GAMING B850M-PLUS WIFI

ASUS TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

CPU Support	Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD B850 Chipset
Memory Support	4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8000Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x1
Onboard Graphics	1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU
Storage	4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series-Pheonix Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) NOTE: For full M.2 PCIe configuration support please visit motherboard manufacturer website support page
RAID	AMD Ryzen 9000 Series Desktop Processors RAID 0/1/5/10 AMD Ryzen 8000 Series-Pheonix Desktop Processors RAID 0/1 AMD Ryzen 7000 Series Desktop Processors RAID 0/1/10
USB Rear I/O	1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
USB Internal Connectors	1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
RGB LED Connectors	3 x Addressable Gen 2 headers
Audio	Realtek ALC1220P 7.1 Surround Sound High Definition Audio
LAN	1 x Realtek 2.5Gbps LAN controller
WIRELESS	Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4

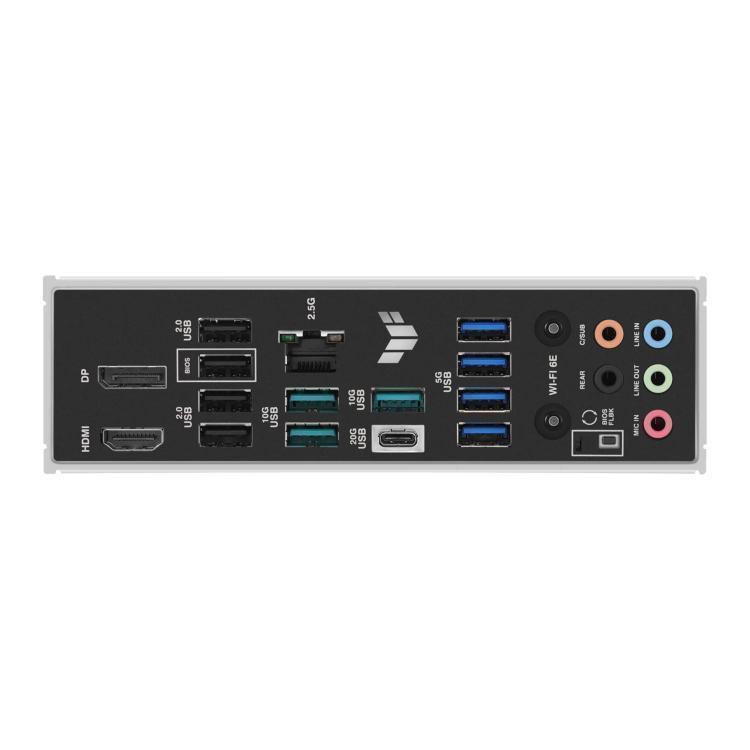

Back Panel Connectors	1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button
Internal Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header
Form Factor	Micro ATX 244mm x 244mm
