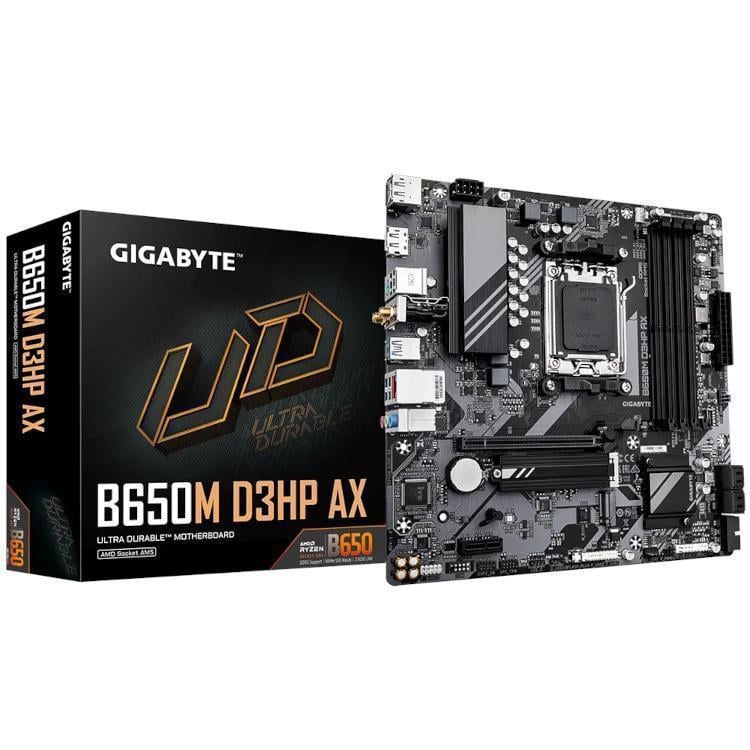

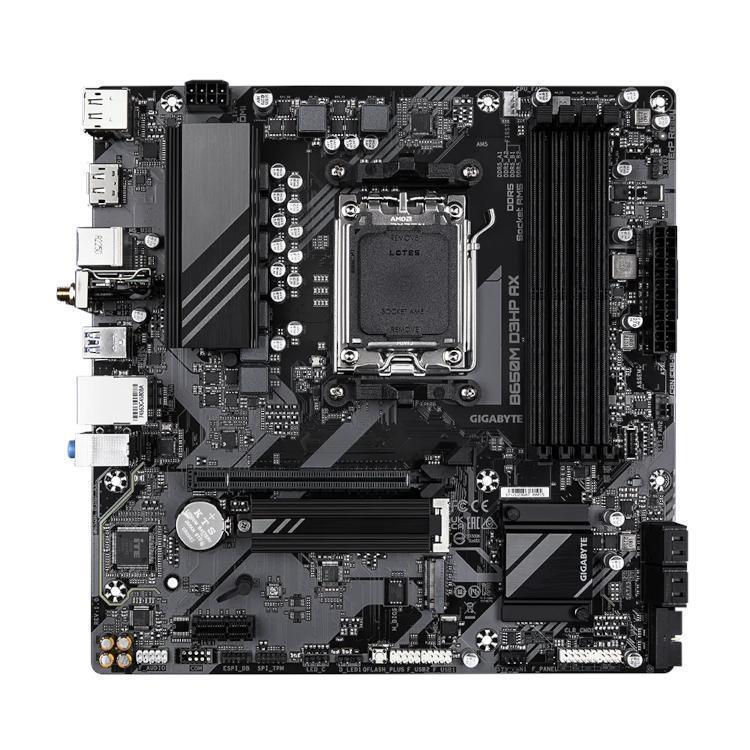

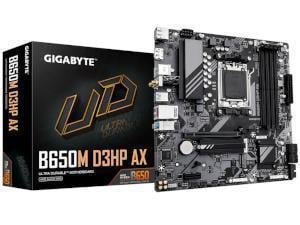

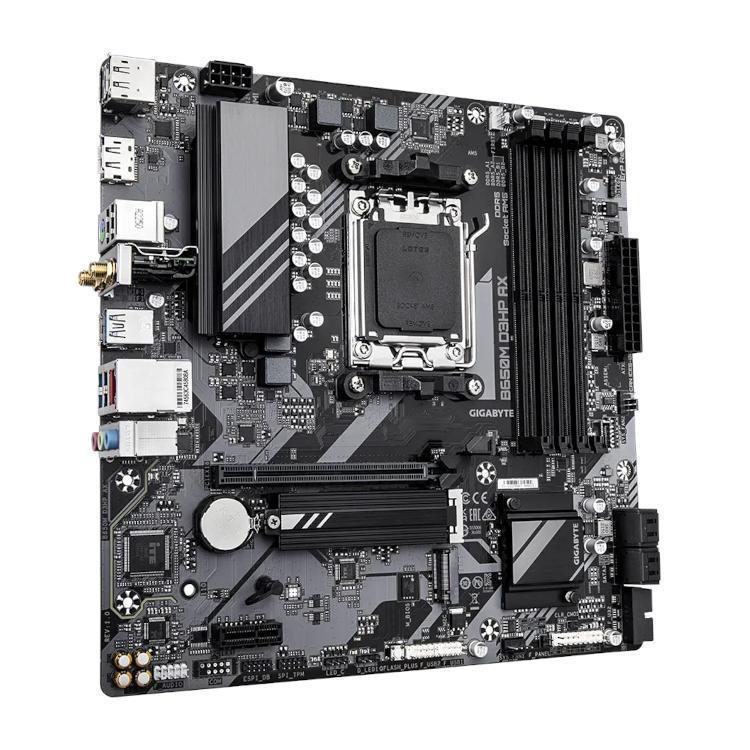

B650M D3HP AX, Micro ATX, AM5, DDR5, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 2 x M.2, 2.5GB LAN, WIFI 6E
£119.99
£109.98 inc vat
£91.65 ex vat
You save £10.01
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8000Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 (x8/4 Speed) (Ryzen 8000 CPUs) AMD B650 Chipset 1 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x HDMI 2.1 2 x DisplayPort 1.4 NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M2A_CPU slot (Key M), type 2580 (supports PCIe 4.0 x4/x2 mode) AMD Ryzen 8000 Series Desktop Processors M2A_CPU slot (Key M), type 2580 (supports PCIe 4.0 x4/x2 mode) AMD X870 Chipset M2C_SB slot (Key M), type 22110/2280 (supports PCIe 4.0 x4/x2 mode) |
| RAID | SATA & NVMe Devices: RAID 0/1/10 |
| USB Rear I/O | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support 3 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 port (1 x Type-A) |
| USB Internal Connectors | 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 2 x Addressable headers 1 x RGB LED strip header |
| Audio | Realtek CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | 1 x Realtek 2.5Gbps LAN controller |
| WIRELESS | Wi-Fi 6E WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless Bluetooth v5.3 |

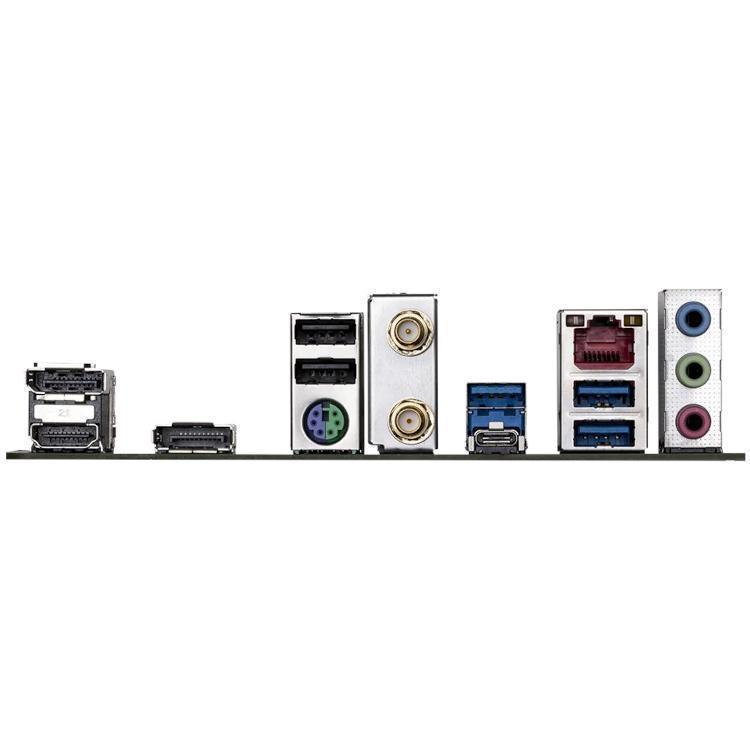

| Back Panel Connectors |
1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks |
| Internal Connectors |
Fan and Cooling Related 1 x CPU fan header 2 x system fan headers Power Related 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Miscellaneous 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | Micro ATX 244mm x 244mm |
