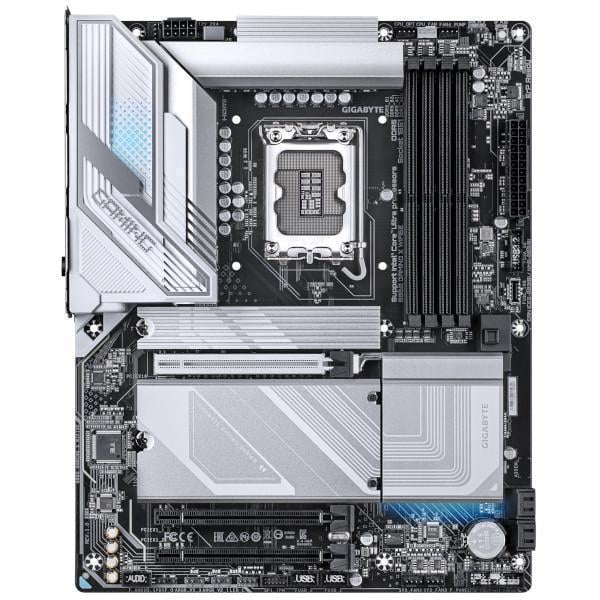

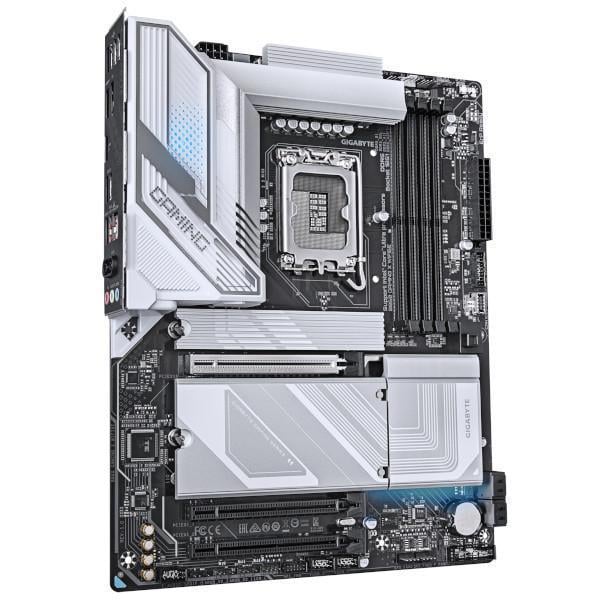

B860 EAGLE WIFI6E, ATX, LGA1851, DDR5, 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 3 x M.2, 2.5 Gbe LAN, Wi-Fi 6E
£169.99 inc vat
£141.66 ex vat
- DDR5 OC up to 90660MT/s
- Intel Socket LGA1851 : Support for Intel ® Core™ Ultra Processors
- Digital twin 12+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with Intel XMP™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Ultra-Fast Storage : 3 x M.2 slots, including 1 PCIe 5.0 x4
- Fast Networking : 1 x 2.5 GbE LAN & Wi-Fi 6 with directional Ultra-high gain antenna
| CPU Support | Intel ® Core™ Ultra Processors |
| CPU Socket | LGA1851 |
| Chipset | B860 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up to 256GB Supports up to 9066 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2) |
| Onboard Graphics | - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz |
| Storage | CPU>: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) - 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB Rear I/O | - 1 x USB4® USB Type-C® port - 1 x USB 3.2 Gen 2 Type-A port (red) - 2 x USB 3.2 Gen 1 ports |
| USB Internal Connectors | - 1 x USB Type-C® port with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 1 ports - 4 x USB 2.0/1.1 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | 1 x Realtek® 2.5GbE LAN |
| WIRELESS | Intel ® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |

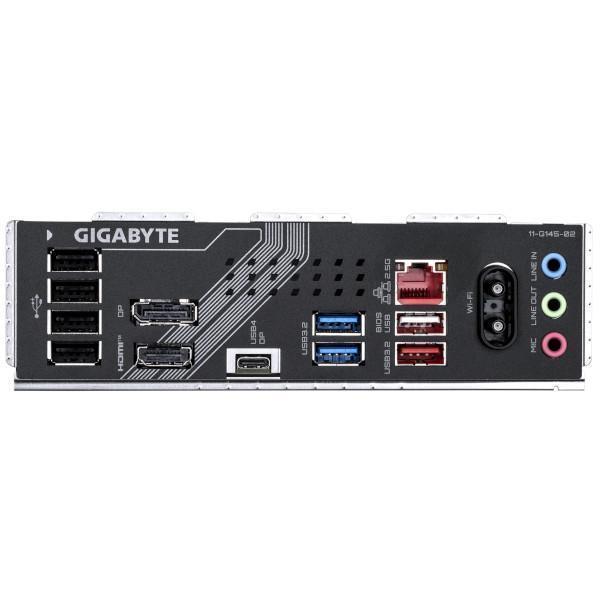

| Back Panel Connectors | 1 x HDMI port 1 x DisplayPort 1 x USB4® USB Type-C® port 2 x USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 2 Type-A port (red) 5 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
| Internal Connectors |
Fan and Cooling 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump headers Power 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connectors Storage 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors USB 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Miscellaneous 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
