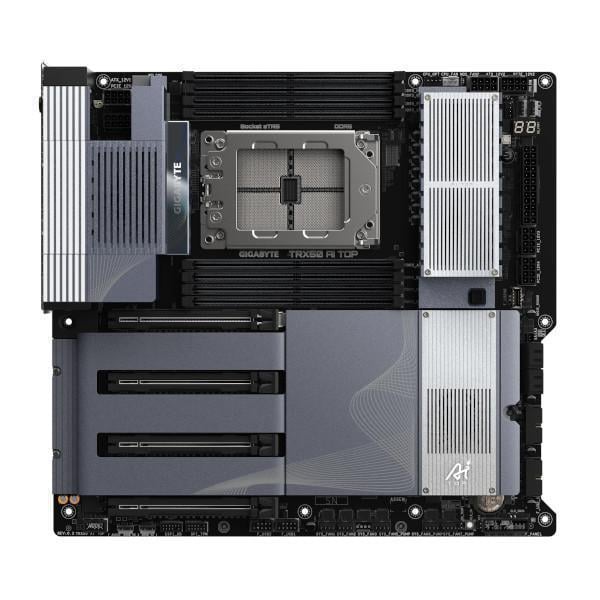

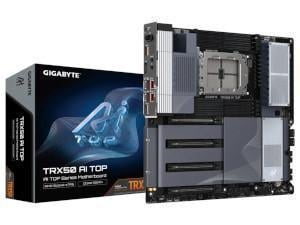

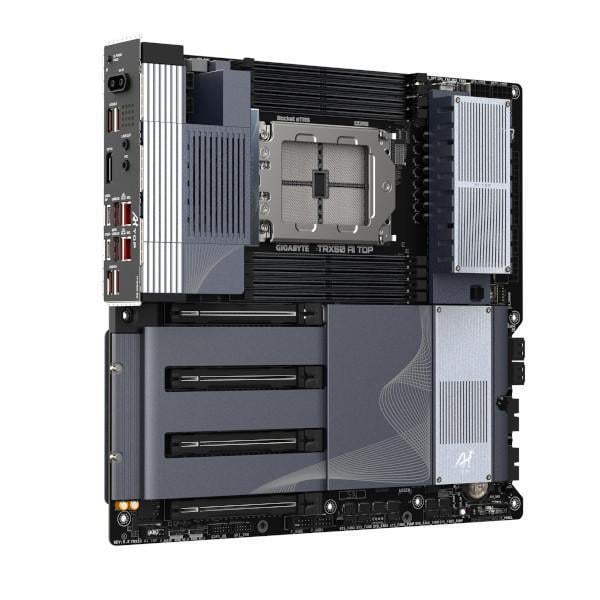

TRX50 AI TOP, E-ATX, TRX50, DDR5, 4 x PCIe 5.0 x16, 4 x M.2, 2 x 10 Gb LAN, Wi-Fi 7
£939.98 inc vat
£783.32 ex vat
Or £40.61 for 24 monthswith 10% deposit of £94.00
| CPU Support | AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors AMD Ryzen™ Threadripper™ 9000 Series Processors AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors AMD Ryzen™ Threadripper™ 7000 Series Processors |
| Chipset | AMD TRX50 Chipset |
| Memory Support | 8 x DDR5 memory slots supporting up 2TB AMD Ryzen™ Threadripper™ PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture AMD Ryzen™ Threadripper™ 9000/7000 Series Processors support Quad Channel memory architecture Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS) NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen Threadripper PRO 9000-WX & PRO 7000-WX Series Processors 3 x PCI Express 5.0 x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3) 1 x PCI Express 5.0 x16 slot (PCIEX16_4) AMD Ryzen Threadripper 9000 & 7000 Series Processors 3 x PCI Express 5.0 x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3) 1 x PCI Express 4.0 x16 slot (PCIEX16_4) |
| Storage | 4 x SATA 6Gb/s AMD Ryzen Threadripper PRO 9000-WX/PRO 7000-WX/9000 Series Processors M2C_CPU slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M2B_CPU slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M2A_CPU slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M2D_CPU slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen Threadripper 7000 Series Processors M2C_CPU slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M2B_CPU slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M2A_CPU slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Note: * The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 9000/7000 Series Processors. |
| RAID | SATA Devices: RAID 0/1 NVMe Devices: RAID 0/1/10 |
| USB Rear I/O | 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB4® USB Type-C® ports on the back panel 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| USB Internal Connectors | 1 x USB Type-C® port with USB 3.2 Gen 2x2 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers 1 x RGB LED strip header |
| Audio | Realtek® ALC4080 CODEC Support for DTS:X® Ultra High Definition Audio 2-channel |
| LAN | 2 x Marvell® AQtion AQC113C 10GbE LAN chip |
| WIRELESS | Wi-Fi 7 802.11a, b, g, n, ac, ax, be Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.3 |

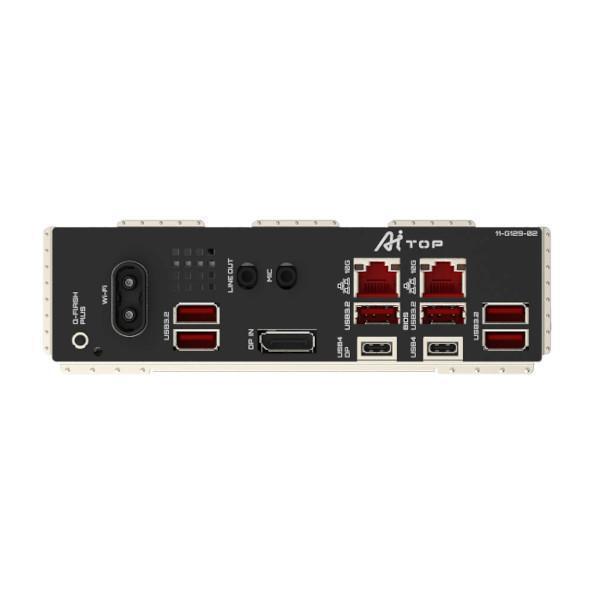

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4® USB Type-C® port (DisplayPort) 1 x USB4® USB Type-C® port 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 port 2 x audio jacks |
| Internal Connectors |
Fan and Cooling Related 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 4 x system fan/water cooling pump headers Power Related 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 4 x PCIe power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers Miscellaneous 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Clear CMOS button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
| Form Factor | E-ATX 305mm x 330mm |
