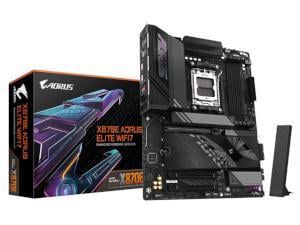

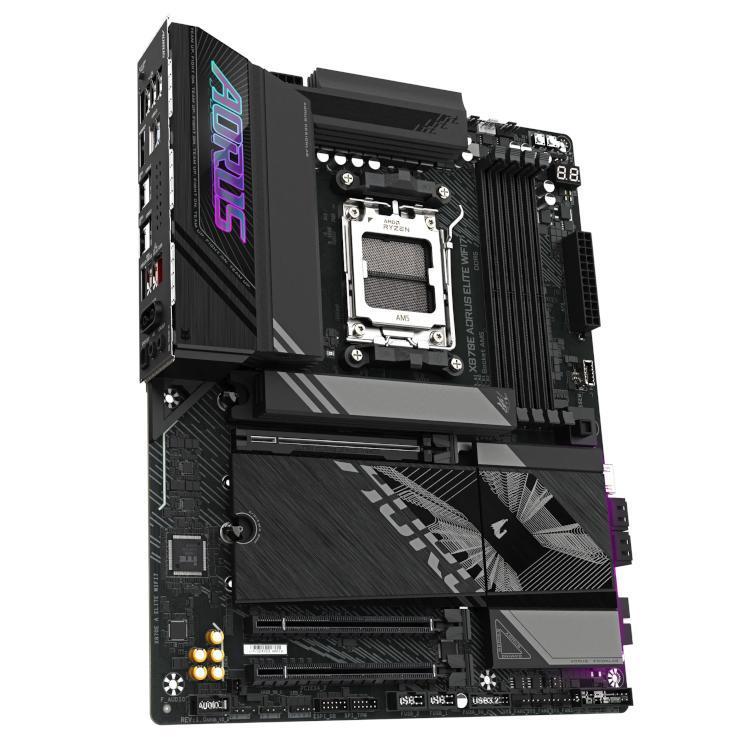

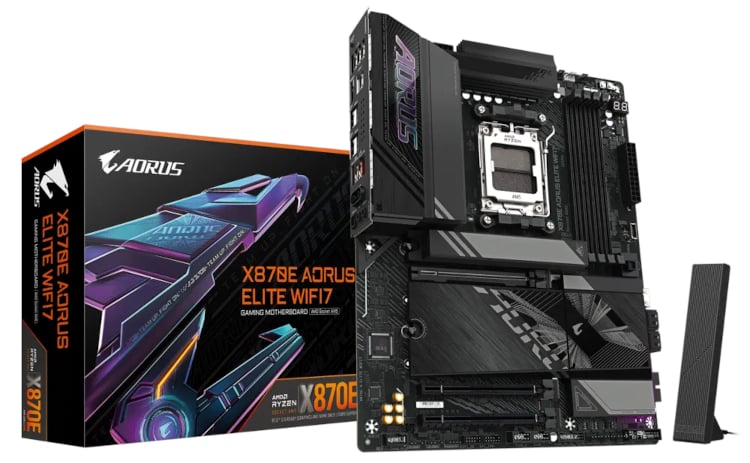

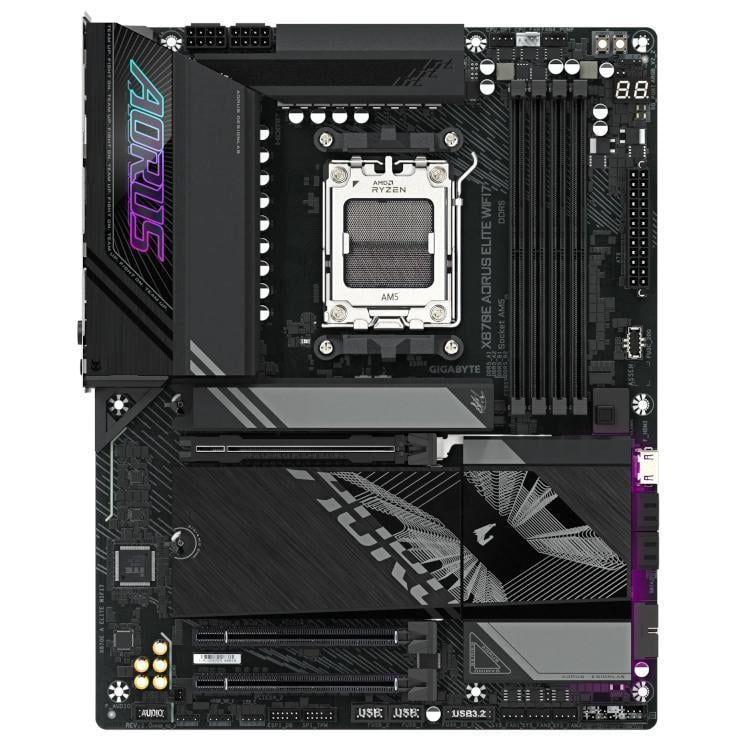

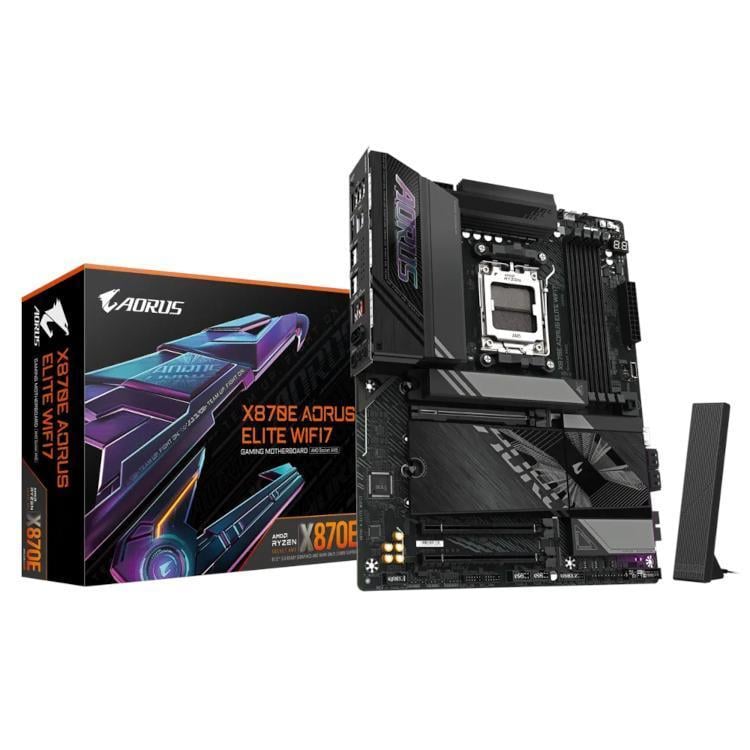

X870E AORUS ELITE WIFI7, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 4 x M.2, 1 x 2.5 Gb LAN, Wi-Fi 7, USB 4.0, HDMI
£269.99 inc vat
£224.99 ex vat
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8200Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 (x8/x4 Speed) (Ryzen 8000 CPUs) AMD X870 Chipset 1 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 3.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x HDMI 2.1 2 x USB4 Type-C Display Outputs (Supports DisplayPort 1.4a) 1 x front HDMI port NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M2A_CPU slot (Key M), type 225110/22110/2580/2280 (supports PCIe 5.0 x4 mode) M2B_CPU slot (Key M), type 22110/2280 (supports PCIe 5.0 x4 mode) M2C_CPU slot (Key M), type 22110/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M2A_CPU slot (Key M), type 225110/22110/2580/2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M2D_SB slot (Key M), type 22110/2280 (supports PCIe 4.0 x4 mode) |
| RAID | SATA Devices: RAID 0/1/10 |
| USB Rear I/O | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 2 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 port (1 x Type-A) |
| USB Internal Connectors | 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps header supports 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers 1 x RGB LED strip header |
| Audio | Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | 1 x Realtek 2.5Gbps LAN controller |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Bluetooth v5.4 |

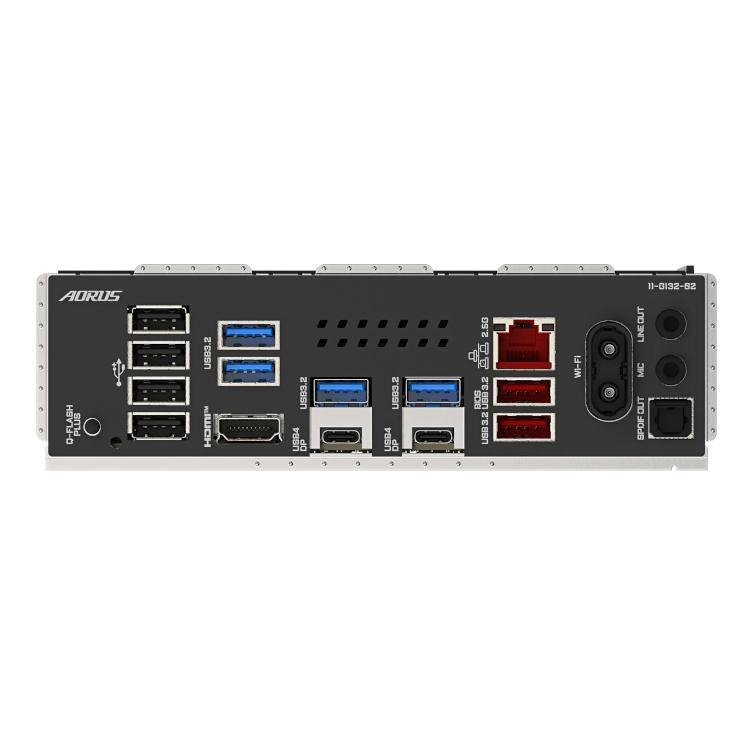

| Back Panel Connectors |
1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal Connectors |
Fan and Cooling Related 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump headers Power Related 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector 2 x USB 5Gbps header 2 x USB 2.0 headers Miscellaneous 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header 1 x HDMI port 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX 305mm x 244mm |
Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.
Get your order delivered the next working day for £7.99, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared.
Get your order delivered the next working day before 12:00pm for £10.98, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared. Some orders if via PayPal and the first customer order may not clear in time.
If you need your order at the weekend, for £12.58, you can specify the day you wish to have it delivered to you, Saturday or Sunday providing your order has been placed by 17:00 on the Friday before.
Economy delivery is available on all orders of any value being shipped within the UK.
Order Code: GIG-X87AEW
£269.99 inc vat
£224.99 ex vat
