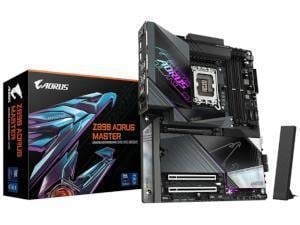

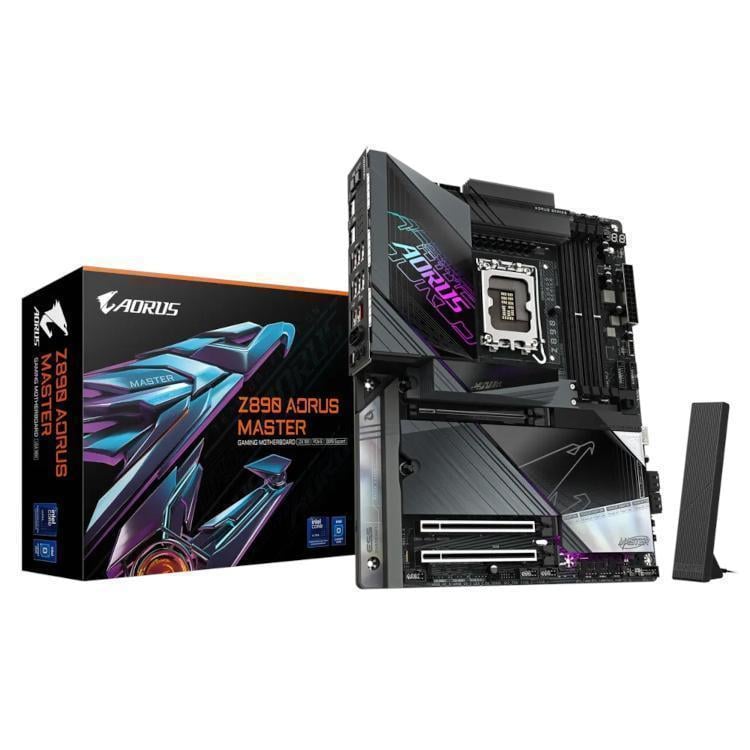

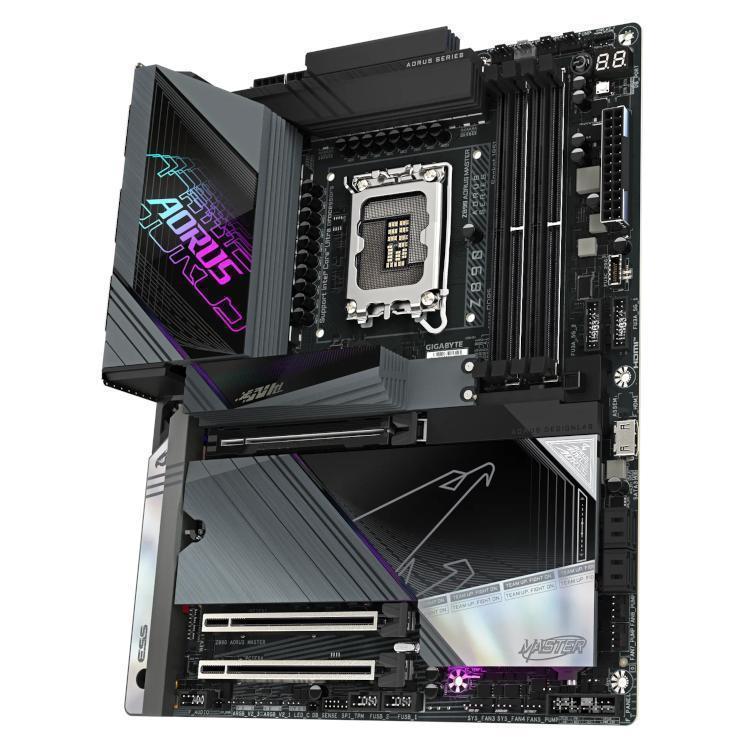

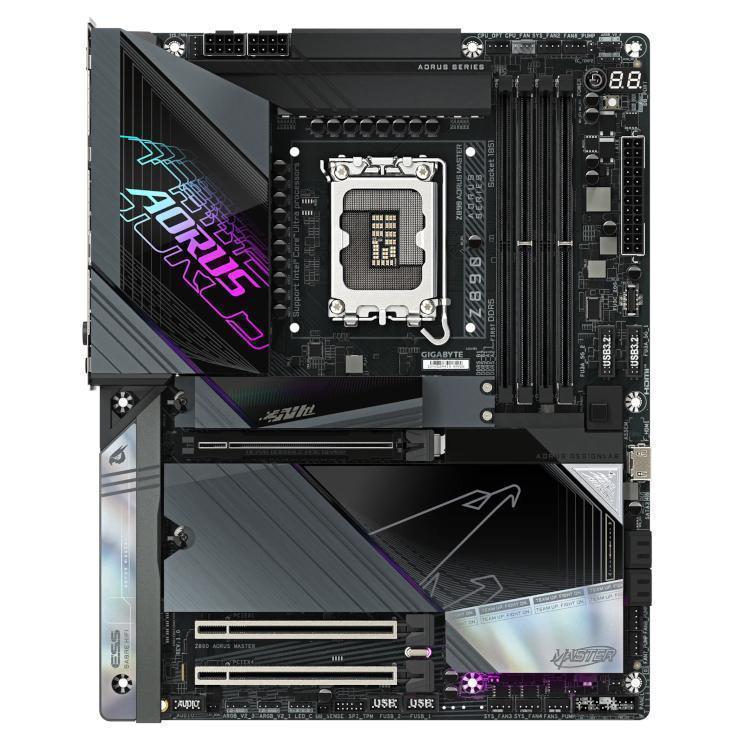

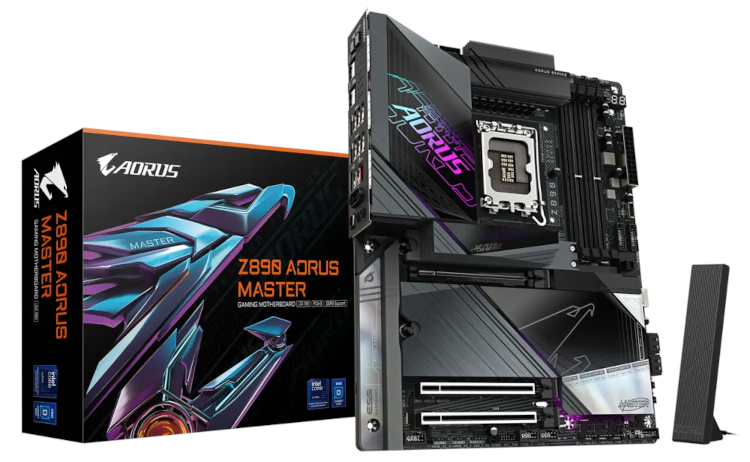

Z890 AORUS MASTER, ATX, LGA1851, DDR5, 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 5 x M.2, 4 x SATA, 1 x 10 Gb LAN, Wi-Fi 7, USB4
£469.99 inc vat
£391.66 ex vat
Or £20.30 for 24 monthswith 10% deposit of £47.00
The Z890 AORUS MASTER motherboard is a high-performance platform designed for enthusiasts and gamers seeking top-tier features. Powered by the Intel Z890 chipset and enhanced with AI technologies, it supports DDR5 memory up to DDR5-9500 for exceptional bandwidth and overclocking potential. Its robust VRM and advanced thermal design ensure stability under heavy workloads. High-speed connectivity options, including Thunderbolt 4 and Wi-Fi 7, offer fast data transfers. DIY-friendly features like EZ-Latch design simplify installation and upgrades. The Z890 AORUS MASTER is perfect for enthusiasts seeking power, convenience, and endurance.
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Chipset | Z890 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up 256GB Supports up to 9500 Mhz non-ECC, un-buffered memory Supports CUDIMM NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 4.0 x16 (x1 Speed) |
| Onboard Graphics | 2 x Type-C Thunderbolt 4 1 x Front HDMI Port NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| RAID | SATA & NVMe Devices: RAID 0/1/5/10 |
| USB Rear I/O | 2 x Intel Thunderbolt 4 (USB Type-C) ports 6 x USB 3.2 Gen 2 Type-A ports 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports |
| USB Internal Connectors | 1 x USB Type-C port with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| RGB LED Connectors | 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header |
| Audio | Realtek ALC1220 CODEC ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | 1 x Marvell AQtion AQC113C 10GbE LAN chip |
| WIRELESS | Wi-Fi 7 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 320MHz wireless standard |

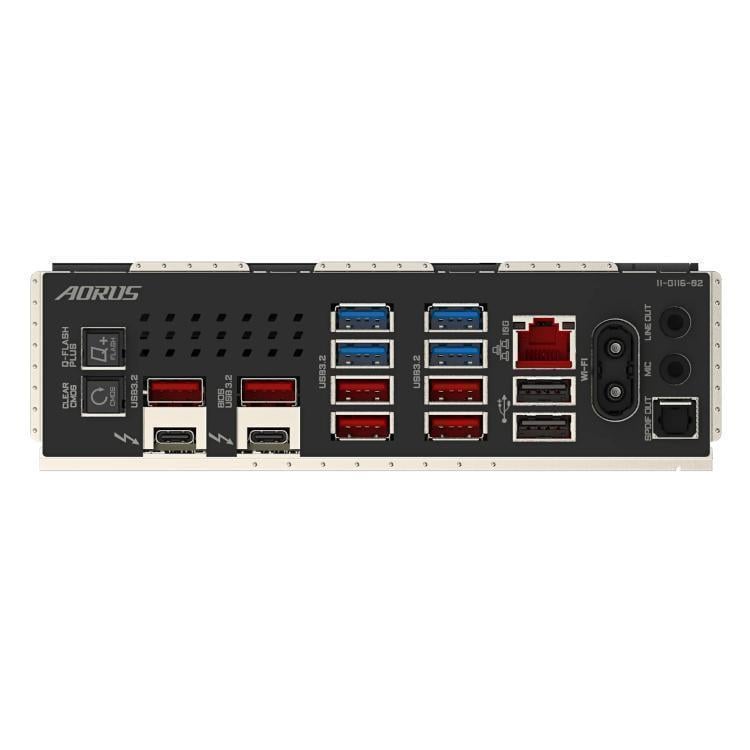

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x Intel Thunderbolt 4 connectors (USB Type-C ports) 6 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal Connectors |
Fan and Cooling 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump header Power 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Type-C port with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports Miscellaneous 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
