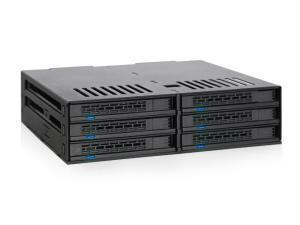

ICY DOCK MB326SP-B 6 6 Bay 2.5” SATA HDD / SSD Hot Swap Cage overview
Overview
The ExpressCage MB326SP-B brings to you our highly consumer-friendly enclosure made for anyone that requires high storage density. The MB326SP-B fits up to 6 x 2.5” SATA HDD/SSD (5mm - 9.5mm) into a single external 5.25” bay with the ability to hot swap for easy drive replacement. The ExpressCage name reflects the tool-less drive installation design that makes installing your drive just as simple as a tray-less device, and optional bottom tray screw holes are provided for extra protection and added stability. With dual 40mm cooling fans placed behind the unit and all around ventilation, your drives will stay cooler than the Arctic. The fan speed slider switch lets you choose between HIGH, LOW, or AUTO smart cooling, so you can set it based on your preference.
The ExpressCage MB326SP-B combined the stability of a tray system and the convenience of a tray-less system, makes it the perfect storage enclosure for power users and system builders.
Bringing high density 2.5” storage array into a desktop computer system, ICY DOCK’s ExpressCage MB326SP-B turns any standard external 5.25” bay into a hot-swappable drive enclosure cage and fits up to 6 x 2.5”SATA HDD/SSD between 5mm to 9.5mm in height. The MB326SP-B supports SATA III 6Gbps and is backward compatible with SATA II and SATA I drives. In addition, our active power feature keeps your enclosure powered down until a drive is inserted minimizing energy usage.
The magic of our ExpressTray simplifies the drive installation process, offering a more flexible, hassle-free drive installation and maintenance. To install a new drive, just place the hard drives or SSDs on the ExpressTray and then insert the tray into the ExpressCage and you are ready to go. To remove drive, you simply need to reverse the process. Pull on the rear tab of the tray to free up the drive and then remove the drive. Our reinforced latching system located on the ExpressTray is made extremely durable so you won’t have issues with them further down the road.
Furthermore, for applications where require extra drive stability and security, an optional bottom tray screw holes are provided for added drive protection. Ventilated slots in front of and beneath the tray help keep airflow extremely efficient to keep your drives icy cool.
Through careful planning and design, we’ve incorporated the most desired features into our ExpressCage MB326SP-B.
Dual 40mm cooling fans located rear of the unit keeps your drives cool by ventilating all 6 drives and dissipating heat through air vents surrounding the unit. Control the amount of air flow with included fan speed slide switch. Set the fan to HIGH for maximum airflow, LOW for whisper quiet operations, or AUTO for smart cooling (determines the temperature of the drive and changes the fan’s RPM accordingly to keep your drives cool).
Features
- Supports up to 6 x 2.5" SATA HDD/SSD into a single 5.25" bay
- Support SATA III 6Gbps
- Hot-swappable bays for quick drive installation
- Accommodates 2.5" drives with 5mm, 7mm & 9.5mm height
- Active Power Technology (APT) - only powers up if there is drive installed in the drive bay
- Removable ExpressTray system for tool-less, easy installation comparable to tray-less designs
- Optional bottom mounted screw holes for increased stability
- Blue indicator LED provided for each bay
- Dual 40mm fan for drive cooling
- 3 pin fan headers to support many aftermarket fan upgrades
- 2 x 15pin SATA power connection powers all 6 drives
- Locking latch design for both 7 pin SATA connector and 15 pin power adapter
- Fan speed control for HIGH, LOW, and AUTO (smart cooling) settings
- Metal case with heavy duty ABS tray and door latch
- Designed for power users and system builder applications, mainly space saving and hot swap usage and for 2.5” HDD or SSD
