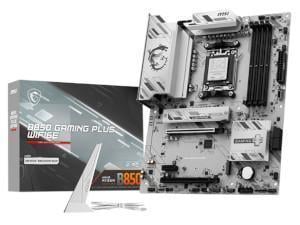

B850 GAMING PLUS WIFI PZ, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 2 x M.2, 4 x SATA, 1 x 2.5 Gb LAN, Wi-Fi 6E, Displayport
£149.99
£139.98 inc vat
£116.65 ex vat
You save £10.01

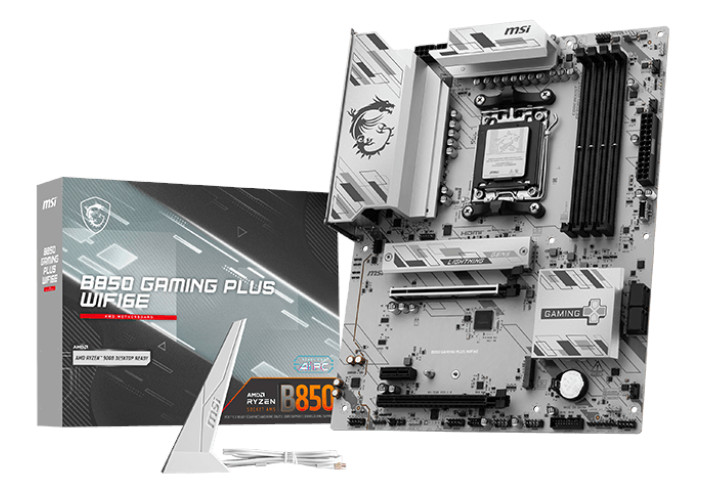

The B850 GAMING PLUS WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| CPU Socket | AM5 |
| Chipset | B850 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Memory Architecture Supporting up to 256GB Supports up to 8200+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) AMD Ryzen™ 8700/8600/8400 Series Desktop Processors PCI_E1 Gen PCIe 4.0 supports up to x8 (From CPU) AMD Ryzen™ 8500/8300 Series Desktop Processors PCI_E1 Gen PCIe 4.0 supports up to x4 (From CPU) AMD B650 Chipset PCI_E2 Gen PCIe 3.0 supports up to x1 PCI_E3 Gen PCIe 4.0 supports up to x4 |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU |
| Storage |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices AMD Ryzen™ 8000 Series Desktop Processors M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x2 , supports 2280/2260 devices AMD B650 Chipset 4 x SATA 6Gb/s |
| RAID | PCIe RAID 0/1 and SATA RAID 0/1/10 |
| USB Rear I/O | 4x USB 5Gbps Type A 3x USB 10Gbps Type A 1x USB 10Gbps Type C |
| USB Internal Connectors | 4x USB 2.0 2x USB 5Gbps Type A 1x USB 10Gbps Type C |
| RGB LED Connectors | 3 x Addressable Gen2 headers 1x RGB LED connector(JRGB) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® 8125D 2.5G LAN |
| WIRELESS | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |

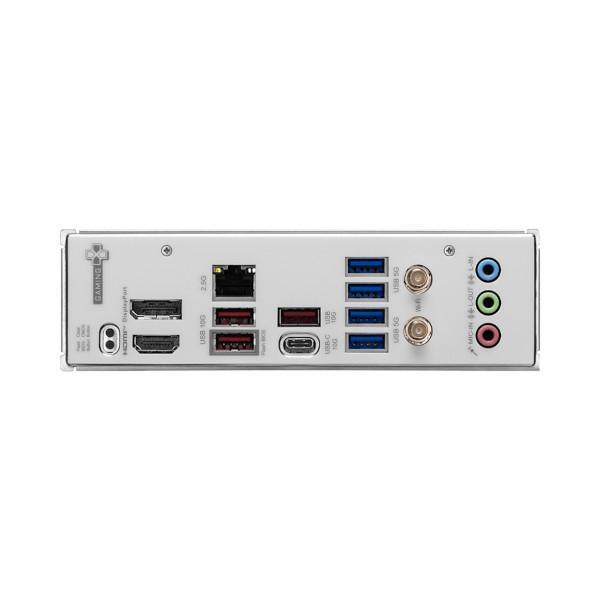

| Back Panel Connectors | 1x Clear CMOS Button 1x DisplayPort 1.4 1x 2.5G LAN 3x USB 10Gbps (Type-A) 1x Wi-Fi / Bluetooth 3x Audio connectors 1x Flash BIOS Button 1x HDMI™ 1x USB 10Gbps (Type-C) 4x USB 5Gbps (Type-A) |
| Internal Connectors |
Fan and Cooling 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan Power 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) Storage 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports Miscellaneous 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
