B760M GAMING PLUS WIFI, ATX, LGA1700, DDR5, 2 x PCIe 4.0 x16, 2 x M.2, 2.5GB LAN, WIFI 6E
£134.99 inc vat
£112.49 ex vat
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
| CPU Support | 14th Gen Intel Core Processors 13th Gen Intel Core processors 12th Gen Intel Core processors |
| Chipset | Intel B760 |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory Supports memory overclocking up to 6800MHz NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x4 Speed) 1 x PCIe 3.0 x16 (x1 Speed) |
| Onboard Graphics | 2 x HDMI 2 x DisplayPort NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 Key M, 2242/2260/2280/22110, (PCIe 4.0 x4 Mode) 1 x M.2 Key M, 2242/2260/2280, (SATA & PCIe 4.0 x4 Mode) |
| RAID | 0/1/5/10 |
| USB Rear I/O | 2x USB 2.0 2x USB 5Gbps Type A 2x USB 10Gbps Type A |
| USB Internal Connectors | 4x USB 2.0 4x USB 5Gbps Type A 1x USB 5Gbps Type C |
| RGB LED Connectors | 2 x Addressable Gen 2 headers 1 x RGB LED header |
| Audio | Realtek ALC897 Codec 8-Channel (7.1) HD Audio |
| LAN | 1 x Realtek 2.5Gbps LAN |
| WIRELESS | Intel Wi-Fi 6E Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Bluetooth v5.3 |

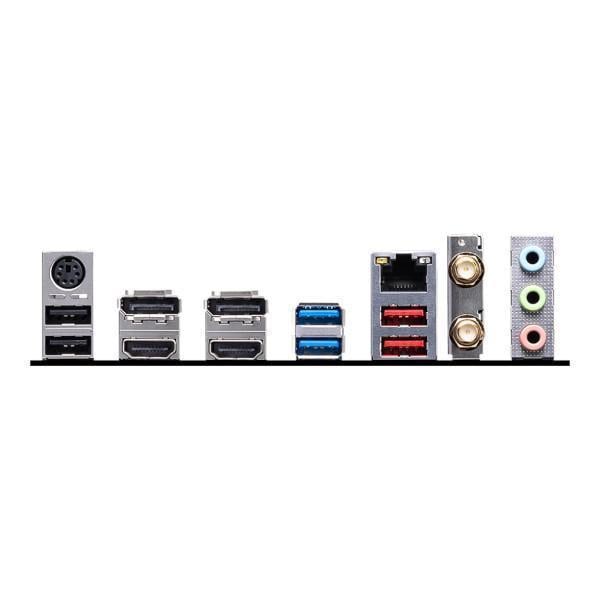

| Back Panel Connectors | 2 x DisplayPort 1.4 2 x USB 2.0 Type-A 2 x USB 3.2 Gen 2 10Gbps Type-A 1 x 2.5G LAN Port 3 x HD Audio Connectors 2 x HDMI 2.1 Port 2 x Wi-Fi / Bluetooth Antenna |
| Internal Connectors | Fan and Cooling 1x CPU Fan 1x Pump Fan 2x System Fan 5 x System Fan Power 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports Miscellaneous 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | M-ATX 244mm x 244mm |
