ATX, LGA1851, DDR5, 2 x PCIe 5.0 x16, 3 x M.2, 4 x SATA, 1 x 5 Gb LAN, Wi-Fi 7, USB 4.0, HDMI
£209.99
£199.98 inc vat
£166.65 ex vat
You save £10.01

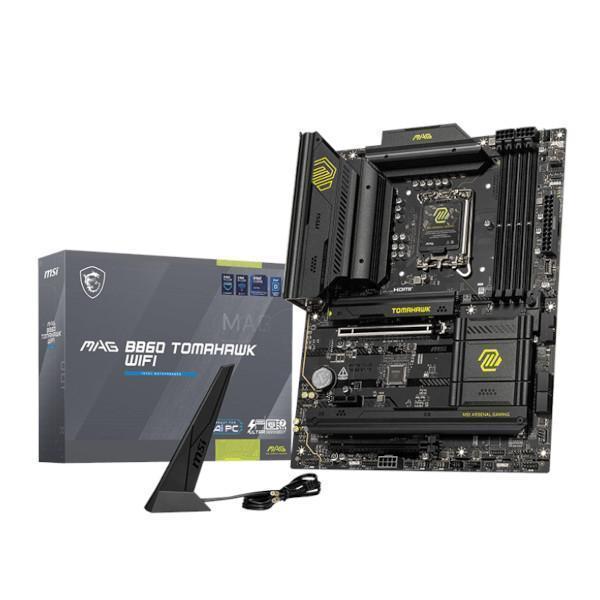

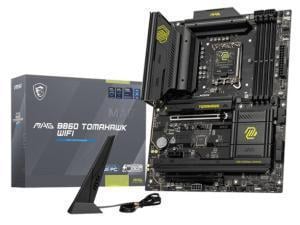

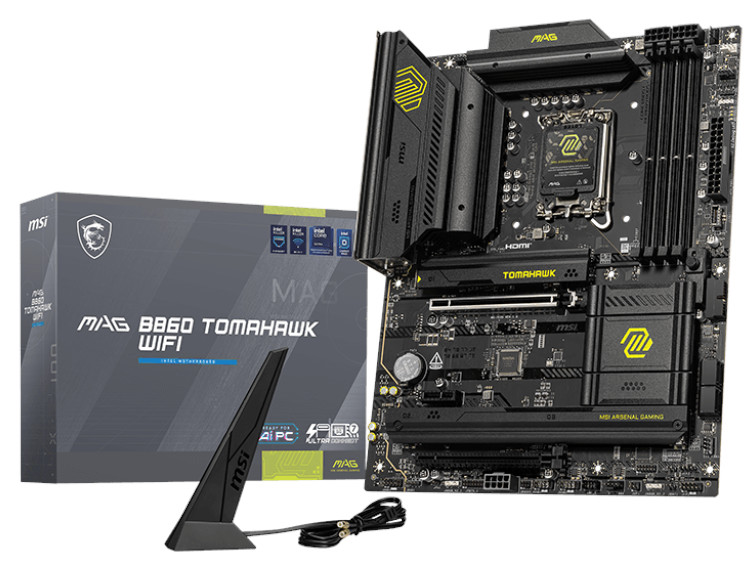

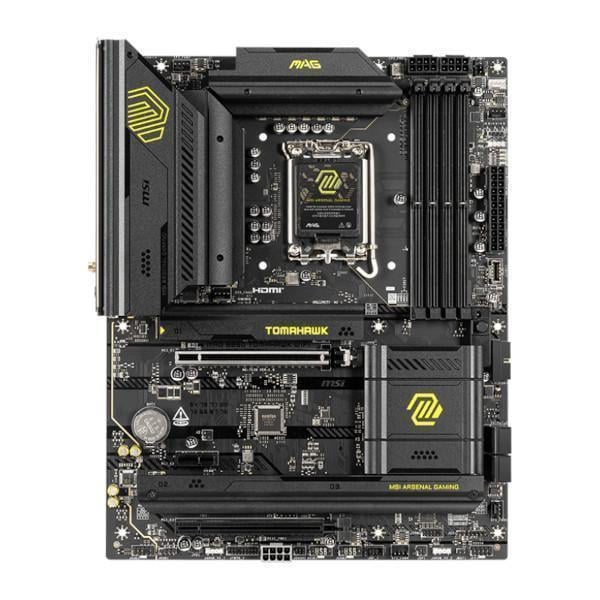

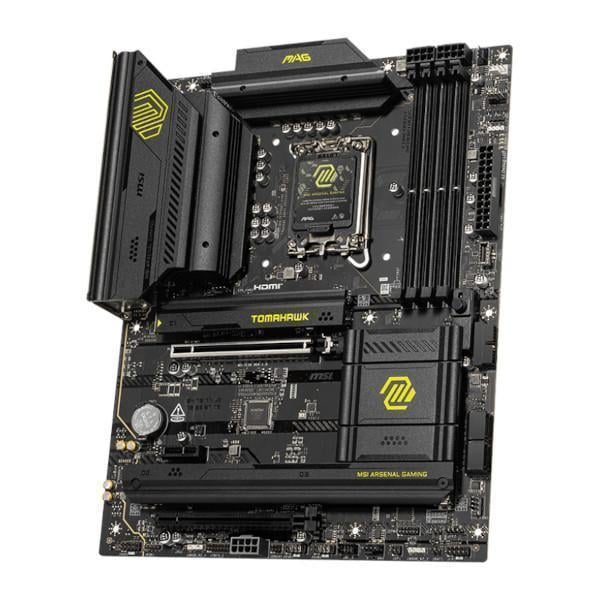

MAG B860 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with Killer Wi-Fi 7 solution and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for the battlefied of Intel Core Ultra processors.
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Chipset | B860 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up 256GB Supports up to 9200 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 2x PCI-E x16 slot (x16 Speed) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) *PCI_E3 slot will run at x2 speed when installing PCIe device in PCI_E2 slot. |
| Onboard Graphics | 1 x HDMI 2.1 1x DisplayPort 1x Type-C DisplayPort NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| RAID | SATA Devices: RAID 0/1/5/10 |
| USB Rear I/O | 4 x USB 10Gbps Type A (Rear) 1 x USB 10Gbps Type C (Rear) 1 x USB 40Gbps Type C (Rear) 4 x USB 2.0 (Rear) |
| USB Internal Connectors | 4 x USB 2.0 (Front) 2 x USB 5Gbps Type A (Front) 1 x USB 20Gbps Type C (Front) |
| Thunderbolt Connectors | 1 x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| RGB LED Connectors | 3 x Addressable V2 RGB LED connector 2 x RGB LED connector |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1 x Intel Killer E5000 5Gbps LAN |
| WIRELESS | Intel Killer BE1750x Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM |

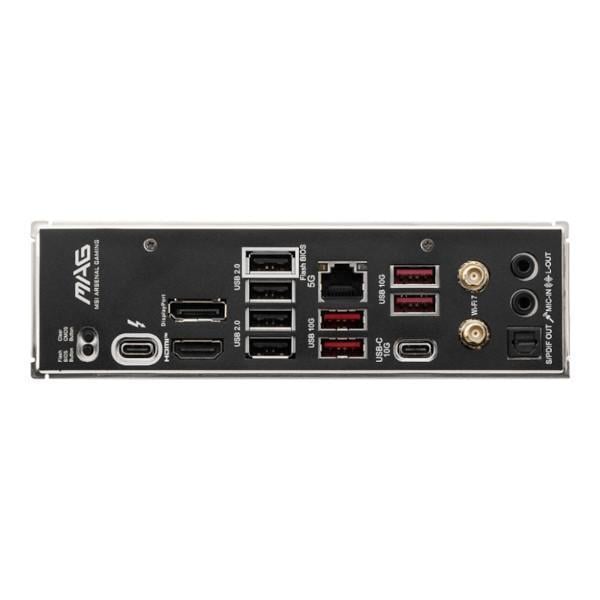

| Back Panel Connectors | 1 x clear CMOS Button 1 x DisplayPort 1 x USB 2.0 (Flash BIOS Port) 1 x 5G LAN 4 x USB 10Gbps Type-A 1 x Audio Connectors 1 x Flash BIOS Button 1 x Thunderbolt™ 4 40Gbps (Type-C) 1 x HDMI™ 4 x USB 2.0 1 x USB 10Gbps Type-C 1 x Wi-Fi / Bluetooth 1 x S/PDIF-OUT |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 5 x System Fan Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) Storage 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4 x USB 2.0 (Front) 2 x USB 5Gbps Type A (Front) 1 x USB 10Gbps Type C (Front) Miscellaneous 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
