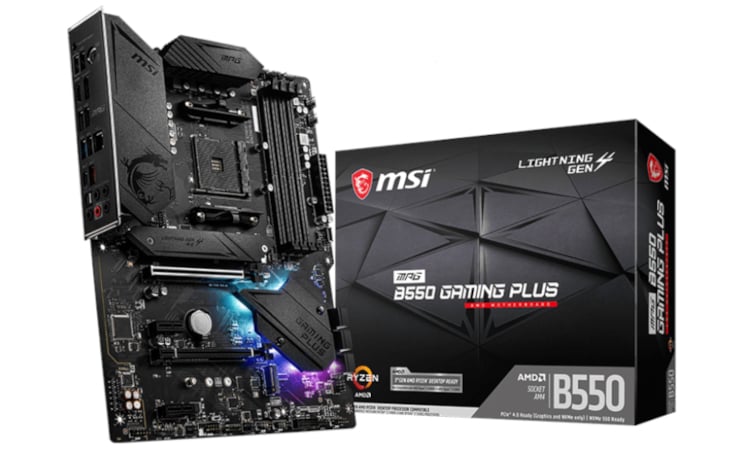

MPG B550 GAMING PLUS, ATX, AM4, DDR4, 1 x PCIe 4.0/3.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 2 x M.2, 2.5Gb LAN, HDMI, Display Port.
£109.98
£99.98 inc vat
£83.32 ex vat
You save £10.00
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
| CPU Support | Supports AMD Ryzen 5000 Series Desktop Processors Supports AMD Ryzen 3000 Series Desktop Processors |
| Socket | AM4 |
| Chipset | AMD B550 Chipset |
| Memory Support | 4 x DDR4 memory slots supporting up 128GB Dual Channel Technology Supports up to 3200Mhz ECC/non-ECC, un-buffered memory Supports Memoru Overclocking to 4400Mhz+ NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 (x16 Speed) 1 x PCIe 3.0 x16 (x4 Speed) 2 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x HDMI 1 x DisplayPort NOTE: Display support varies on CPU |
| Storage | 6 x SATA 6Gb/s 1 x M2_1 slot (from AMD Processor), Supports PCIe 4.0/ 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280/ 22110 storage devices 1 x M2_2 slot (from AMD B550 chipset), Supports PCIe 3.0 x4, Supports 2242/ 2260/ 2280 storage devices |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB Rear I/O | 2 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x USB 3.2 Gen 2 10Gbps (Type-C) 2 x USB 2.0 |
| USB Internal Connectors | 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
| Thunderbolt | N/A |
| RGB LED Connectors | 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors |
| Audio | 7.1-Channel HD Audio Supports S/PDIF output |
| LAN | 1 x Realtek 1Gbps LAN controller |
| WIRELESS | None |
| Back Panel Connectors | 1 x PS/2 Combo Port 1 x DisplayPort 1 x LAN Port 1 x USB 3.2 Gen 2 10Gbps (Type-A) 5 x HD Audio Connectors 1 x Flash BIOS Button 2 x USB 2.0 1 x HDMI 2 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x USB 3.2 Gen 2 10Gbps (Type-C) 1 x Optical S/PDIF OUT |
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 2 x M.2 slots (M-Key) 1 x USB 3.2 Gen 1 5Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | ATX 305mm x 244mm |
