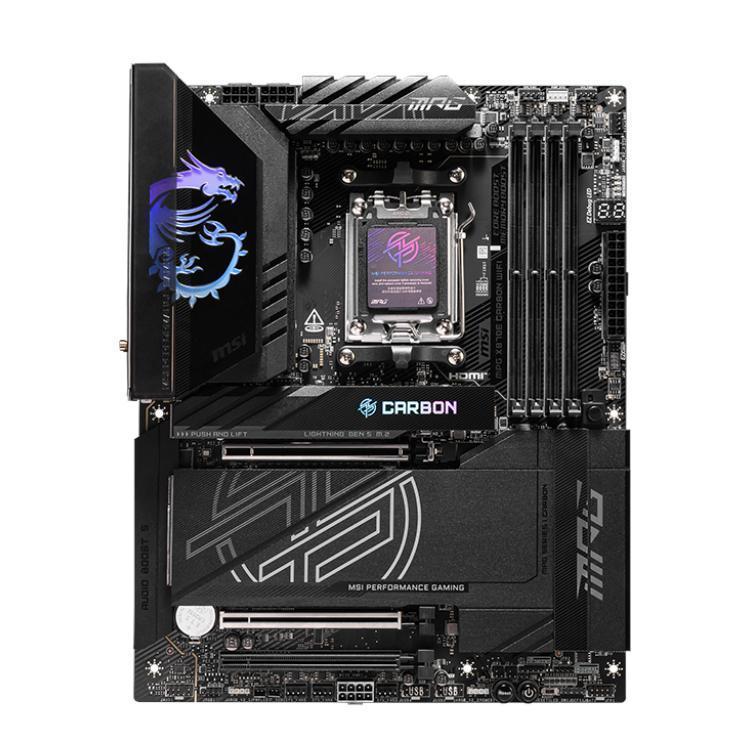

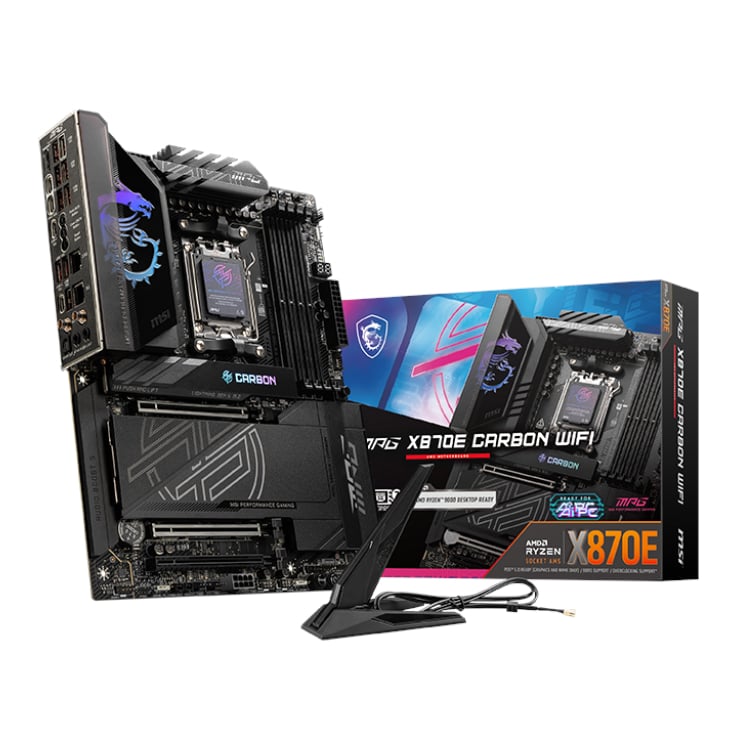

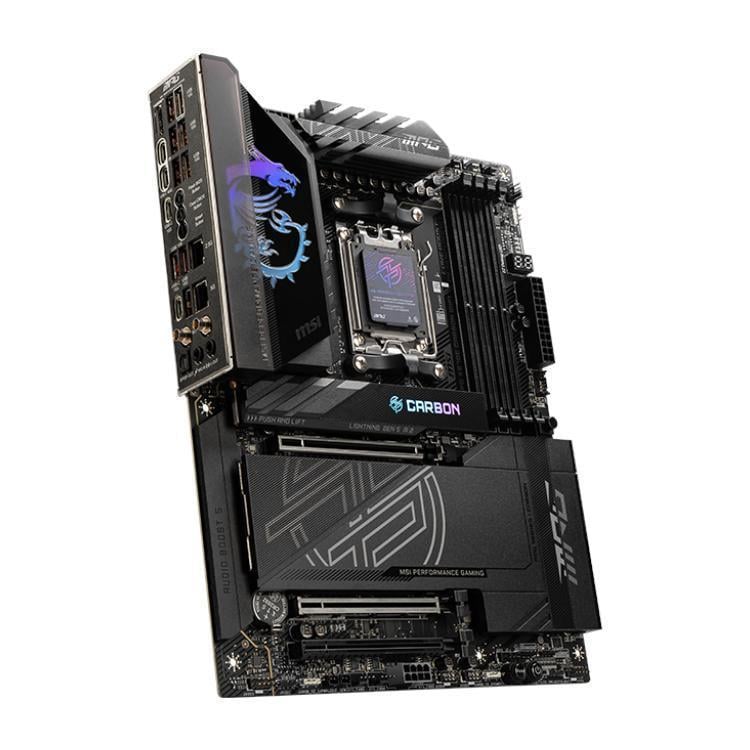

MPG X870E CARBON WIFI, ATX, AM5, DDR5, 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 4 x M.2, 1 x 5 Gb LAN, 1 x 2.5 Gb LAN, USB 4.0, WIFI 7, HDMI
£459.98 inc vat
£383.32 ex vat
Or £19.87 for 24 monthswith 10% deposit of £46.00
MPG X870E CARBON WIFI employs a carbon black color scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring 5G LAN, true Wi-Fi 7 solution, USB 40Gbps, Supplemental PCIe Power, and the latest EZ DIY designs, making this motherboard one of the best X870E ATX motherboards for Ryzen 9000 series processors.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X870E Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8400Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 5.0 x16 (x4 Speed) AMD Ryzen 8000 Series Desktop Processors 2 x PCIe 4.0 x16 (x8/x4 Speed) AMD X870 Chipset 1 x PCIe 4.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x HDMI 2.1 2 x USB4 Type-C Display Outputs NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 supports up to PCIe 5.0 x4 , supports 2280/2260 devices AMD Ryzen 8000 Series Desktop Processors M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260 devices AMD X870 Chipset M.2_3 supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| RAID | SATA Devices: RAID 0/1/10 NVMe Devices: RAID 0/1/10 |
| USB Rear I/O | 2 x USB 40Gbps Type C (Rear) 2 x USB 10Gbps Type C (Rear) 9 x USB 10Gbps Type A (Rear) |
| USB Internal Connectors | 1 x USB 20Gbps Type C (Front) 4 x USB 5Gbps Type A (Front) 4 x USB 2.0 (Front) |
| RGB LED Connectors | 3 x Addressable Gen 2 headers 1 x RGB LED connector (JRGB) |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| LAN | 1 x Realtek 8126-CG 5G LAN 1 x Realtek 8125 2.5G LAN |
| WIRELESS | Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM |

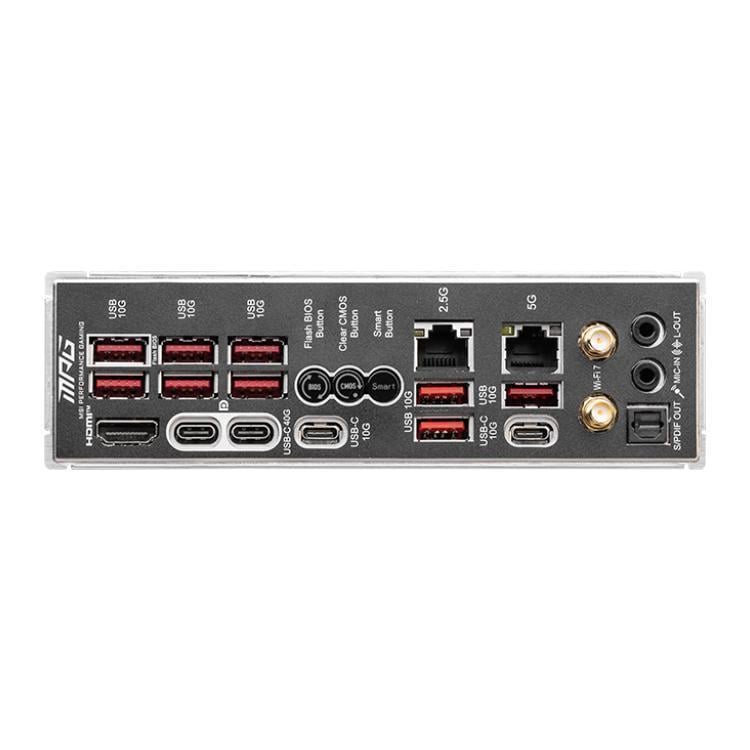

| Back Panel Connectors | 9 x USB 10Gbps Type-A 1 x Flash BIOS Button 1 x Clear CMOS Button 1 x Smart Button 1 x 2.5G LAN 1 x 5G LAN 2 x Audio Connectors 1 x HDMI 2 x USB 40Gbps Type-C 2 x USB 10Gbps Type-C 2 x Wi-Fi / Bluetooth 1 x Optical S/PDIF Out |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 5 x System Fan Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) Storage 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps Type C (Front) 4 x USB 5Gbps Type A (Front) 4 x USB 2.0 (Front) Miscellaneous 1 x EZ Conn-header (JAF_2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Thermal Sensor connectors(T_SEN) |
| Form Factor | ATX 305mm x 244mm |
