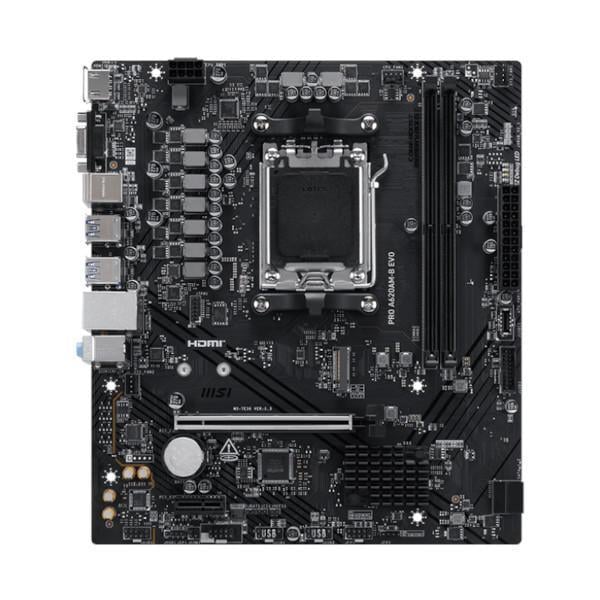

PRO A620AM-B EVO, M-ATX, AM5, DDR5, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1, 1 x M.2, 2 x SATA, 1 x 2.5 Gb LAN, HDMI, VGA
£79.98 inc vat
£66.65 ex vat
PRO A620AM-B EVO is designed with tons of flexible tools with DDR5 memory version.
| CPU Support | AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| CPU Socket | AM5 |
| Chipset | A620A |
| Memory Support | 2 x DDR5 memory slots Dual Channel Technology Supporting up 128GB Supports up to 6800 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Onboard Graphics | 1 x HDMI 1.2 1 x VGA NOTE: Display support varies on CPU |
| Storage | 2 x SATA 6Gb/s M2_1 slot Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
| RAID | Sata Devices: RAID 0/1 |
| USB Rear I/O | 2x USB 2.0 4x USB 5Gbps Type A |
| USB Internal Connectors | 4x USB 2.0 2x USB 5Gbps Type A 1x USB 5Gbps Type C |
| RGB LED Connectors | 1 x Addressable V2 RGB LED connector 1 x RGB LED connector |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek RTL8125 2.5G LAN |

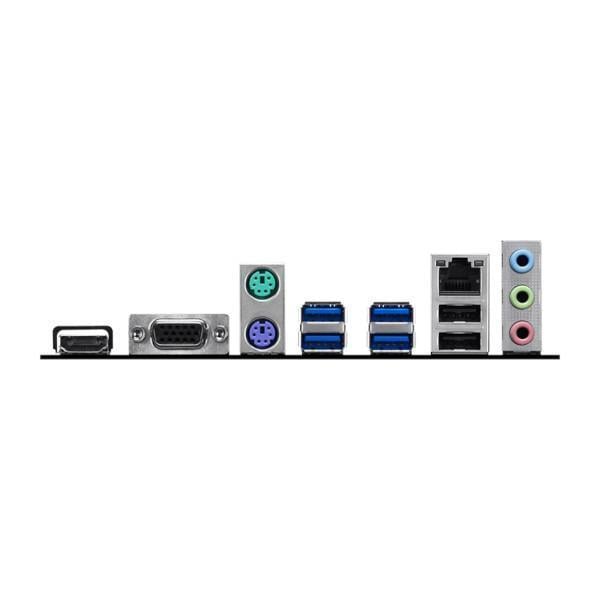

| Back Panel Connectors | 1 x HDMI 1 x VGA 1 x Keyboard/Mouse 4 x USB 5Gbps Type-A 1 x LAN port 1 x Audio connectors 2 x USB 2.0 |
| Internal Connectors |
Fan and Cooling 1x CPU Fan 2x System Fan Power 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) Storage 1x M.2 slots (Key M) 2x SATA 6Gb/s ports USB 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports Miscellaneous 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | M-ATX 218mm x 244mm |
| Operating System Support | Windows 11 64-bit |
