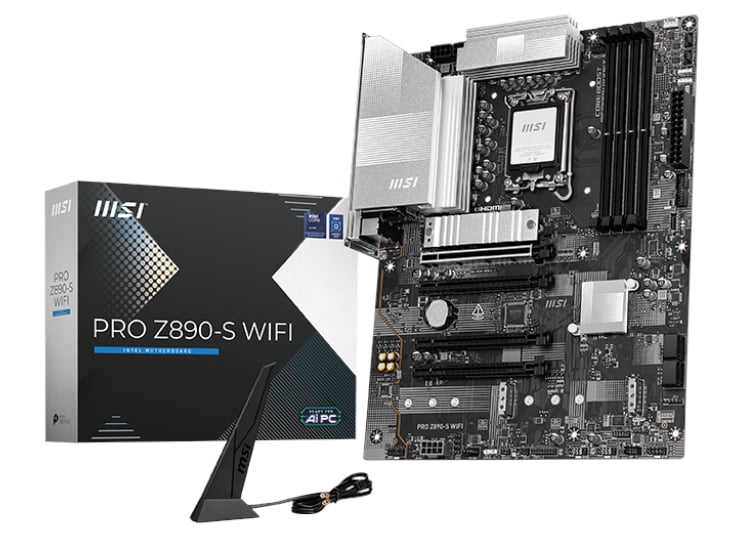

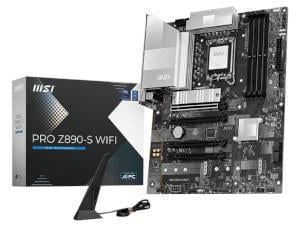

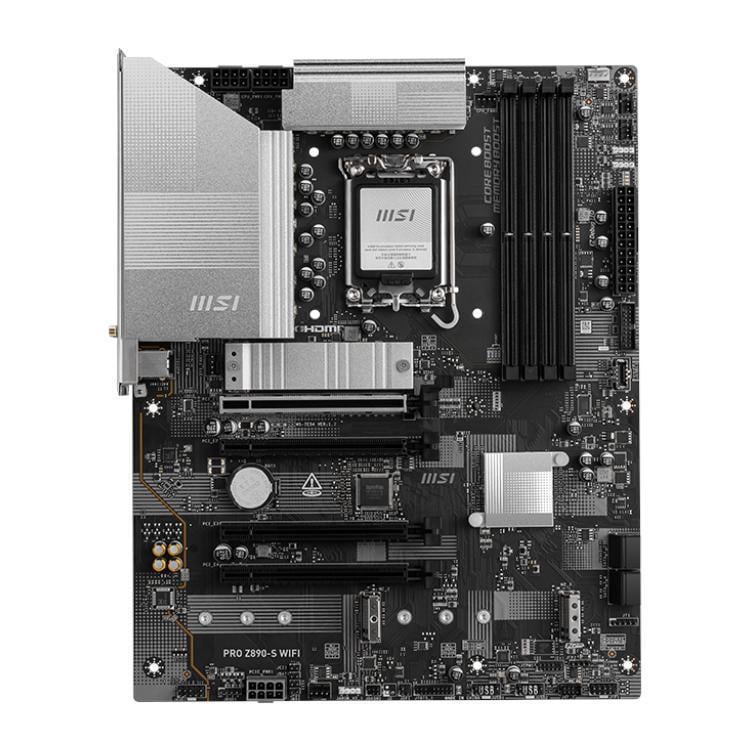

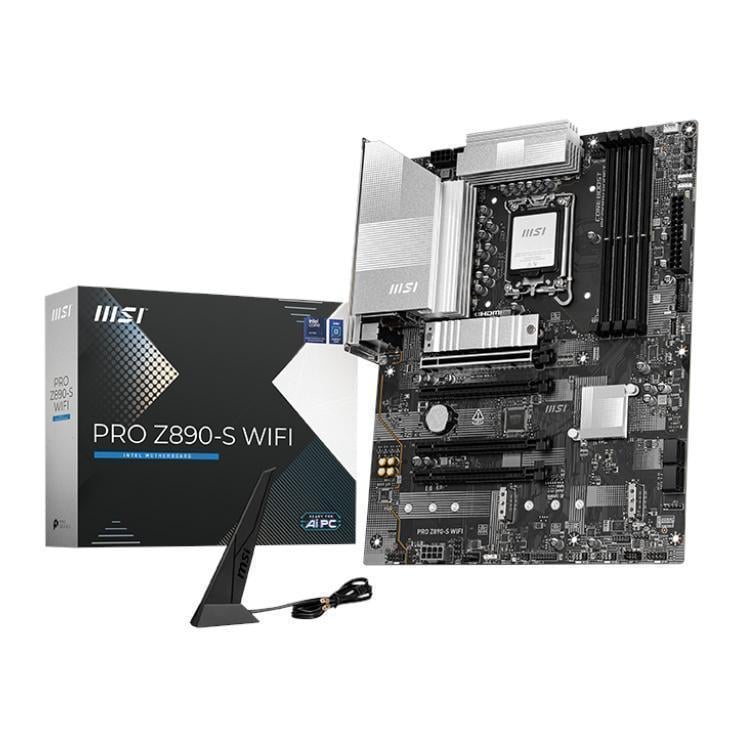

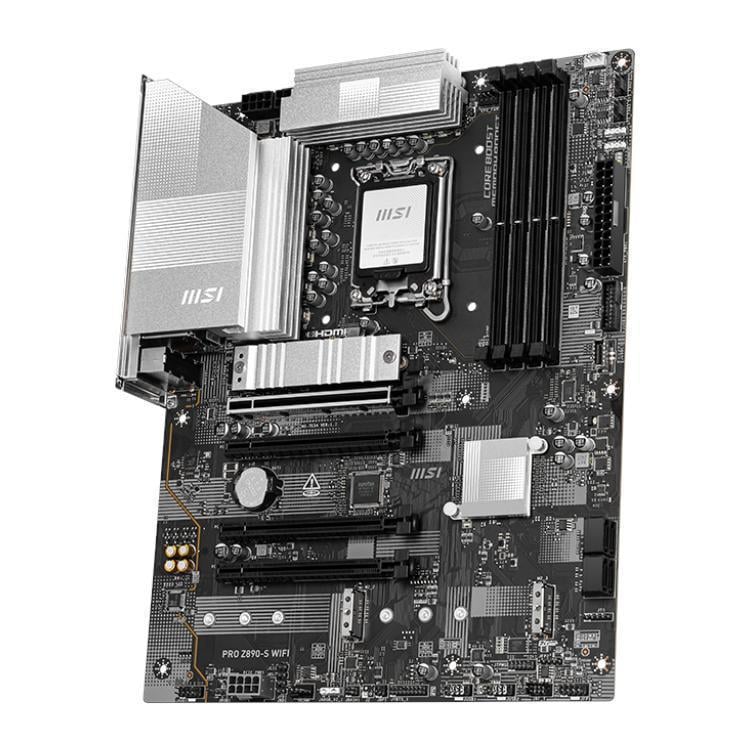

MSI PRO Z890-S WIFI, ATX, LGA1851, DDR5, 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 3 x M.2, 4 x SATA, 1 x 2.5 Gb LAN, Wi-Fi 7, USB 4.0
£214.98
£189.98 inc vat
£158.32 ex vat
You save £25.00
PRO Z890-S WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Chipset | Z890 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up 256GB Supports up to 8600 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 3.0 x16 (x1 Speed) 2 x PCIe 4.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x HDMI 2.1 1 x DisplayPort 1 x Type-C DisplayPort NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| RAID | SATA & NVMe Devices: RAID 0/1/5 |
| USB Rear I/O | 6 x USB 5Gbps Type A (Rear) 1 x USB 20Gbps Type C (Rear) |
| USB Internal Connectors | 4 x USB 2.0 (Front) 2 x USB 5Gbps Type A (Front) 1 x USB 20Gbps Type C (Front) |
| Thunderbolt Connectors | 1 x Thunderbolt4 port (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| RGB LED Connectors | 3 x Addressable V2 RGB LED connector 1 x RGB LED connector |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek 8125D 2.5Gbps LAN |
| WIRELESS | Intel Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM |

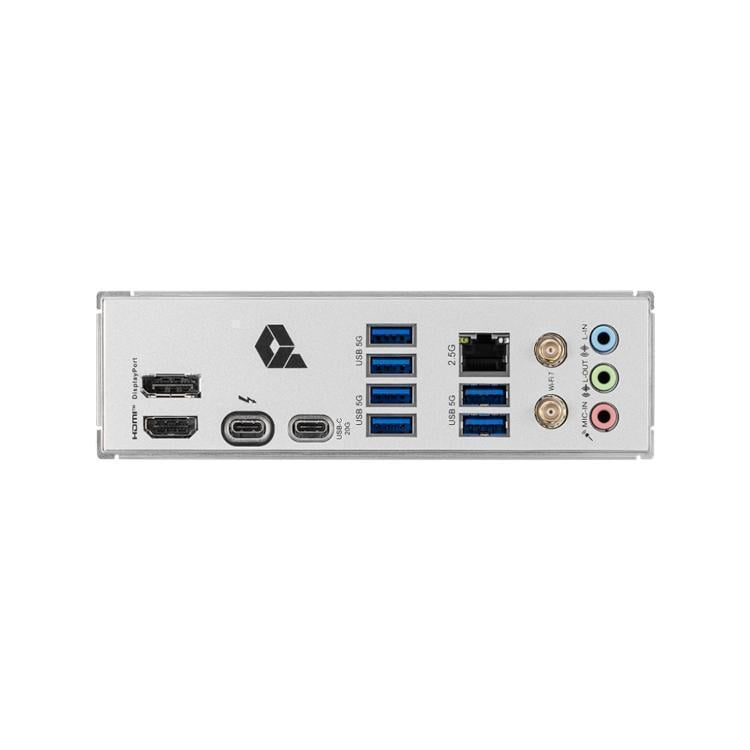

| Back Panel Connectors | 1 x DisplayPort 6 x USB 5Gbps Type-A 1 x 2.5G LAN 2 x Wi-Fi / Bluetooth 3 x Audio Connectors 1 x HDMI™ 1 x Thunderbolt™ 4 40Gbps (Type-C) 1 x USB 20Gbps Type-C |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) Storage 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4 x USB 2.0 (Front) 2 x USB 5Gbps Type A (Front) 1 x USB 20Gbps Type C (Front) Miscellaneous 1x Thunderbolt5 card connector(JTBT5, support RTD3) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
