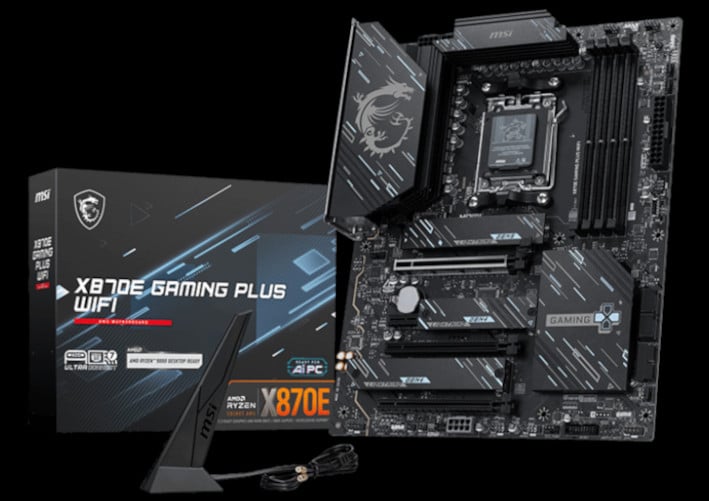

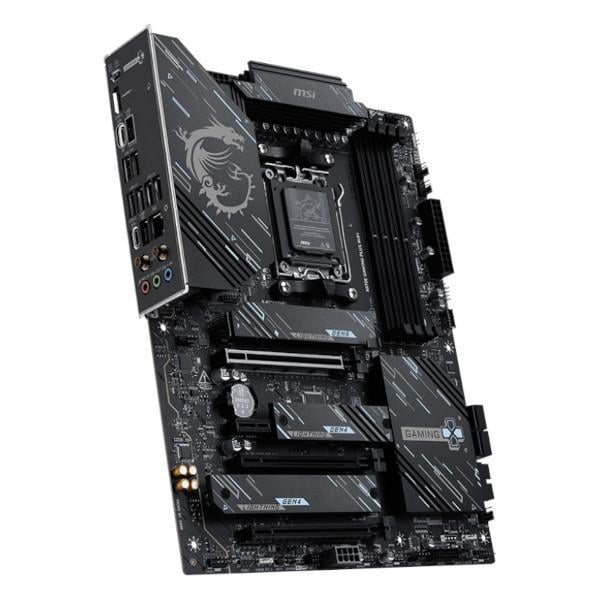

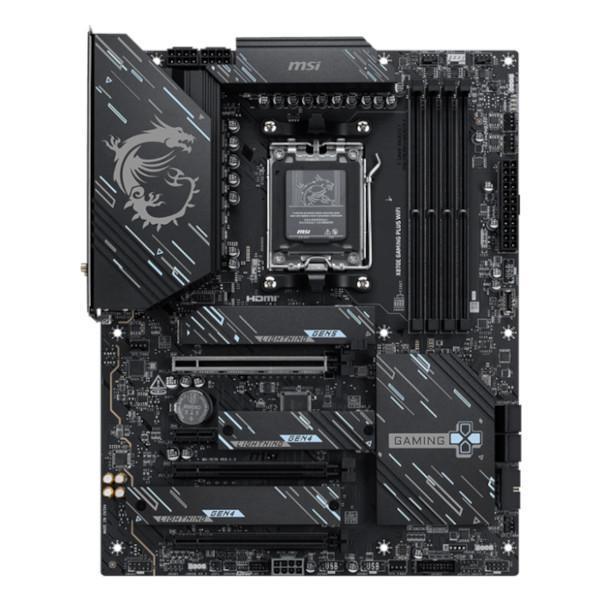

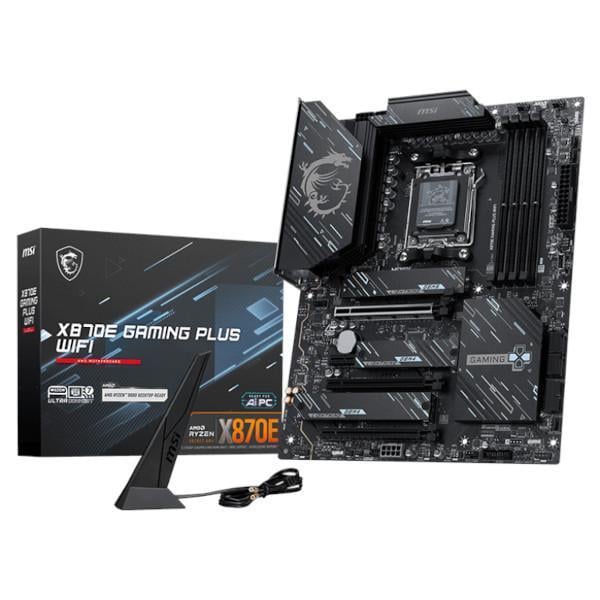

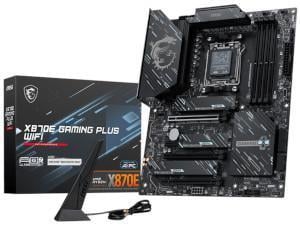

X870E GAMING PLUS WIFI, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 2 x PCIe 3.0 x1, 3 x M.2, 1 x 5 Gb LAN, USB 4.0, WIFI 7, HDMI
£239.99
£229.98 inc vat
£191.65 ex vat
You save £10.01
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X870E Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8200Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 (x8/x4 Speed) AMD X870 Chipset 1 x PCIe 4.0 x16 (x4 Speed) 2 x PCIe 3.0 x16 (x1 Speed) |
| Onboard Graphics | 1 x HDMI 2.1 1 x Type-C Display Outputs NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 supports up to PCIe 5.0 x4 , supports 2280/2260 devices AMD Ryzen 8000 Series Desktop Processors M.2_1 supports up to PCIe 4.0 x4 , supports 22110/2280 devices AMD X870 Chipset M.2_2 supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 supports up to PCIe 4.0 x4 , supports 22110/2280 devices |
| RAID | SATA Devices: RAID 0/1/10 NVMe Devices: RAID 0/1/5 |
| USB Rear I/O | 1 x USB 40Gbps Type C (Rear) 1 x USB 20Gbps Type C (Rear) 2 x USB 10Gbps Type A (Rear) 2 x USB 5Gbps Type A (Rear) 4 x USB 2.0 (Rear) |
| USB Internal Connectors | 1 x USB 20Gbps Type C (Front) 4 x USB 5Gbps Type A (Front) 6 x USB 2.0 (Front) |
| RGB LED Connectors | 3 x Addressable Gen 2 headers 1 x RGB LED connector (JRGB) |
| Audio | Realtek® ALC897 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek 5G LAN |
| WIRELESS | Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |

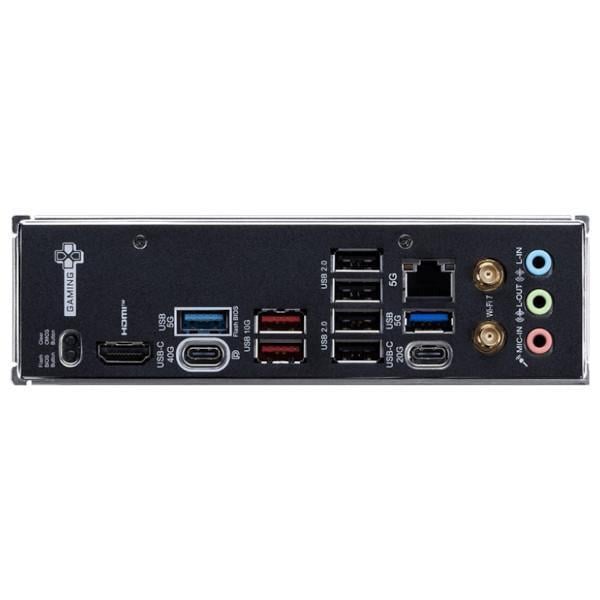

| Back Panel Connectors | Clear CMOS Button USB 5Gbps Type-A USB 10Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 2.0 USB 20Gbps Type-C USB 5Gbps Type-A |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) Storage 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports Miscellaneous 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | ATX 305mm x 244mm |
