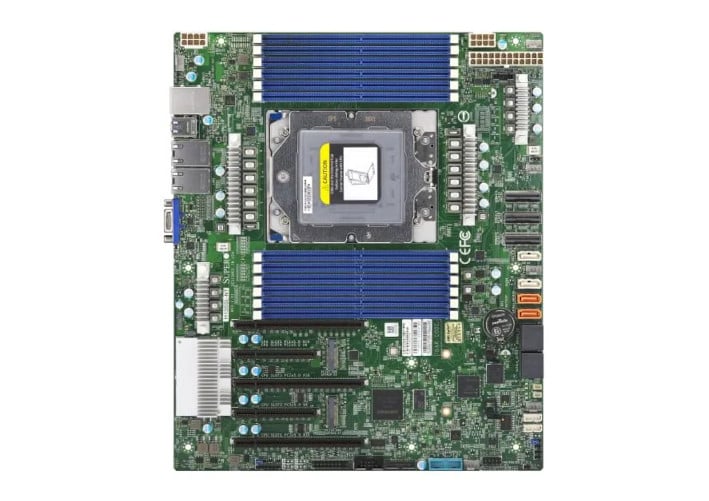

Supermicro H13SSL-NT AMD Socket SP5 ATX Motherboard - MBD-H13SSL-NT

Supermicro H13SSL-NT AMD (Socket SP5) ATX Motherboard overview

H13SSL-NT

AMD EPYC™ 9004/9005* Series Processors (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
System on Chip
Support up to DDR5 12 DIMM slots (1DPC), speed up to 6000 MT/s (Please check System Memory Section for detail)
3 PCIe 5.0 x16; 2 PCIe 5.0 x8
2x 10GBase-T LAN Ports via Broadcom BCM57416
Up to 6 USB 3.0 ports(4 rear + 2 via header)
8 SATA3
ASPEED AST2600 BMC graphics
6 PWM 4-pin Fans with tachometer status monitoring
M.2 Interface: 2 PCIe 5.0 x4 M.2 Form Factor: 2280, 22110

CPU Support	AMD EPYC™ 9004/9005 Series Processors
Processor Socket	SP5
Memory Support	12 x DDR5 RDIMM memory slots supporting up 3TB Supports up to 6400Mhz ECC NOTE: Actual Memory data rate varies on CPU
Expansion Slots	3 x PCIe 5.0 x16 slots 2 x PCIe 5.0 x8 slots
Output	1 x VGA
Storage	2 x MCIO (PCIe 5.0 x8) port(s) 1 x MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s) 2 x M.2 PCIe 5.0 x4 SATA/NVMe slots (M-key 2280/22110)
RAID	N/A
USB Rear I/O	4 x USB 3.0 port(s)
USB Internal Connectors	2 x USB 3.0 port(s) (Header)
Thunderbolt	N/A
RGB LED Connectors	N/A
Audio	N/A
LAN	2 x 10GBase-T LAN Ports via Broadcom BCM57416
WIRELESS	N/A
Back Panel Connectors	4 x USB 3.0 port(s) 2 x LAN with Broadcom BCM57416 10GBase-T 1 x VGA port(s) 1 x RJ45 1 GbE Dedicated IPMI LAN port(s) (Realtek RTL8211F PHY)
Internal Connectors	1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 6 x System Fan 1 x COM port(s) (header) 2 x SuperDOM (Disk on Module) port(s) with power connector support 1 x TPM 2.0 Header 2 x MCIO (PCIe 5.0 x8) port(s) 1 x MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s)
Form Factor	ATX 304mm x 256mm
