WD Purple 1TB 3.5inch CCTV and Surveillance Hard Drive HDD - WD10PURZ

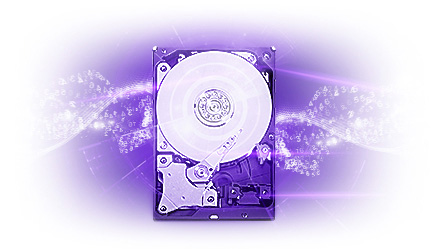

WD Purple 1TB 3.5" CCTV and Surveillance Hard Drive (HDD) overview

The smart choice for surveillance

WD Purple Surveillance Storage offers exclusive AllFrame technology to bring you premium reliability and peace-of-mind when installing your home or small to medium business security system. WD Purple’s exclusive firmware upgrades work with ATA streaming to reduce error pixilation and video interruptions that occur when desktop hard drives are incorrectly used as storage in security systems. WD Purple Surveillance Storage is built for 24/7, always-on, high-definition surveillance security systems that use up to eight hard drives and up to 32 cameras.

Choose a drive that is designed and engineered for home and business surveillance systems and enjoy the peace-of-mind you can only get from a surveillance-class hard drive.

Desktop drives vs. surveillance-class storage

You wouldn’t use a bicycle to transport cargo across the country because it’s not the right tool for the job. You also shouldn’t use a desktop hard drive in your surveillance security system because it wasn’t designed for that application.

WD Purple surveillance-class storage has been tested to be compatible in a wide-range of security systems. These drives are designed to replace standard desktop drives that were not designed for the harsh 24/7 always-on, high-definition surveillance environment. Desktop drives are built to run for only short intervals and are not engineered to withstand high-temperature fluctuations and equipment vibrations found in a typical surveillance application.

Surveillance storage for peace-of-mind

Whether you’re protecting your personal assets and loved ones or monitoring the business you worked hard to build, you can rely on surveillance-class storage built by one of the largest hard drive manufacturers in the world. WD Purple Surveillance Storage is designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video play back when you need it most. Experience the security of knowing you’re using a surveillance–class drive designed by a leader in the hard drive industry.

Improve performance with AllFrame

WD Purple surveillance-class hard drives are equipped with AllFrame technology which works with ATA streaming to reduce frame loss, improve playback and increases the number of drive bays supported. AllFrame reduces video interruptions that commonly occur when desktop hard drives are incorrectly used as storage in security systems. Missed frames and lost footage is a serious problem when an event occurs and surveillance footage needs to be retrieved. WD Purple with AllFrame provides the confidence you should expect when it’s time to play back and review critical surveillance footage.

Key benefits:

- Reduces video frame loss with surveillance-class storage.
- Specifically tuned for surveillance security systems.
- Caching algorithms are tuned for write-intensive, low bit rate, high stream count applications that are typical of surveillance applications.
- Priority change for write allocations and preemptive caching policies.
- TLER & ATA streaming support.
- Supports up to eight drives.

Engineered for compatibility

WD Purple surveillance hard drives are built for compatibility with industry-leading chassis and chip set manufacturers for seamless integration into your new or existing video surveillance system. Check out our compatibility selector to find out what surveillance drive is right for you.

Lower power consumption

Low power consumption is crucial in high-temperature always-on surveillance environments. With exclusive IntelliSeek technology, WD Purple drives calculate the optimum seek speeds which lowers power consumption, noise and vibration that can damage and cause desktop drives to wear out more quickly. When you invest in a premium surveillance-class drive you worry less while enjoying the benefits over a longer period of time.

Optimized performance for up to 32 HD cameras

WD Purple hard drives are optimized to support up to 32 high-definition surveillance cameras, giving you the flexibility to upgrade and expand your security system in the future.

3-year limited warranty (worldwide)

Trust a company with the confidence to stand behind their surveillance storage products with a 3-year limited warranty worldwide.

Recommended use

WD Purple storage is tested and recommended for use in surveillance and security systems up to 8 bays and optimized for 32 HD cameras. For additional surveillance capacity, look at WD datacenter hard drives. WD Purple is not recommended for use in NAS environments, please consider using WD Red hard drives for desktop RAID and NAS environments or WD datacenter hard drives for rackmount or large RAID configurations.

General

Width	10.2 cm
Depth	14.7 cm
Height	2.54 cm
Weight	0.6 kg
Compatibility	PC
Device Type	Hard drive - internal

Expansion / Connectivity

Interfaces	1 x Serial ATA 6Gb/s - 7 pin Serial ATA
Compatible Bays	1 x internal - 3.5" x 1/3H

Manufacturer Warranty

Service & Support	3 years warranty
Service & Support Details	Limited warranty - 3 years

Environmental Parameters

Sound Emission	22 dBA
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
Humidity Range Operating	5 - 95%
Vibration Tolerance	0.75 g @ 20-300 Hz (operating) / 4 g @ 20-500 Hz (non-operating)

Hard Drive

Form Factor	3.5" x 1/3H
Interface Type	Serial ATA 6Gb/s
Buffer Size	64 MB
Capacity	1TB
Connector	Serial ATA (SATA) plug

Performance

Drive Transfer Rate

Buffer To Host (Serial ATA) 6 Gb/s (Max) Transfer Rate (Host to/from Drive (Typical)) 145 MB/s
Spindle Speed	IntelliPower

Reliability

Load / Unload Cycles

300,000 minimum
