90MB19E0-M2EAYC, Micro ATX, LGA1700, DDR5, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, 2 x M.2, 1GB LAN, 2 x DP, HDMI
£189.98 inc vat
£158.32 ex vat
Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
| CPU Support | 14th / 13th / 12th Gen Intel Core processors Pentium Gold and Celeron Processors |
| Chipset | Intel Q670 |
| Memory Support | 4 x DDR5 memory slots supporting up 192GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 (x16 Speed) 2 x PCIe 3.0 x1 |
| Onboard Graphics | 2 x DisplayPort 1 x HDMI Port Graphics specifications may vary between CPU types |
| Storage | 6 x SATA 6Gb/s Intel Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280(support PCIe 4.0 x4 mode) Intel Q670 Chipset M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode) |
| RAID | NVMe RAID 0/1/5 SATA RAID 0/1/5/10 |
| USB Rear I/O | 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| USB Internal Connectors | 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Thunderbolt | N/A |
| RGB LED Connectors | N/A |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback |
| LAN | 1 x Intel 1Gbps LAN |
| WIRELESS | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |

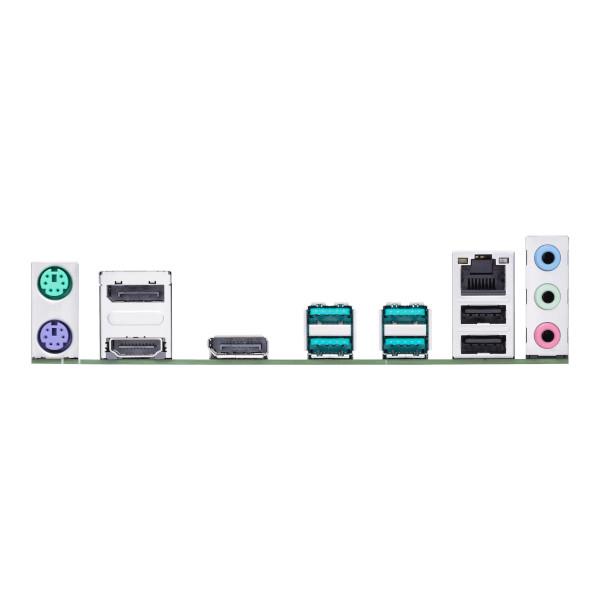

| Back Panel Connectors | 4 x USB 3.2 Gen 2 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI® port 3 x Audio jacks 1 x Intel® 1Gb Ethernet 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
| Internal Connectors | Fan and Cooling 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME jumper 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 10-1 System Panel header |
| Form Factor | Micro ATX 244mm x 244mm |
