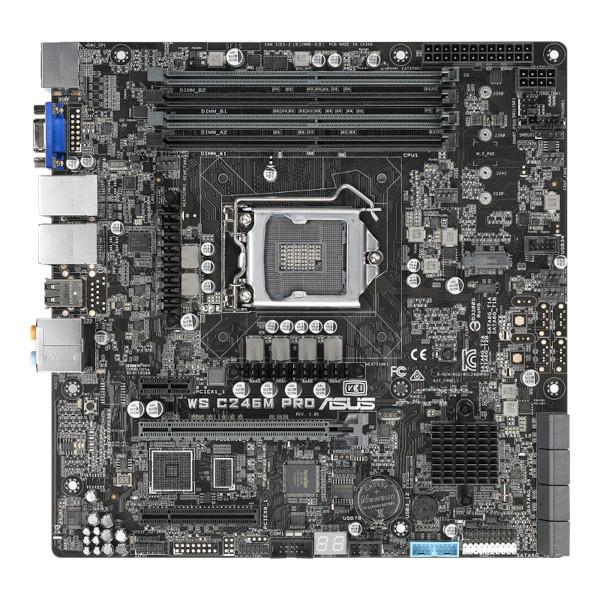

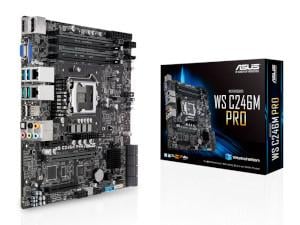

WS C246M PRO, U ATX, LGA1151, DDR4, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x 8, 8 x SATA, 1 x M.2, 2 x 1GB Ethernet, HDMI, DP, VHA
£249.98 inc vat
£208.32 ex vat
Rack-optimised design for better cooling efficiency and stability
Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
Accelerated data-transfer speeds of up to 32Gbps with M.2
Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
Dual Intel® Gigabit LAN with teaming support
ASUS Control Centre — A software utility that provides convenient, secure and cost-saving centralised IT management for small and medium businesses
| CPU Support | 8th / 9th Gen Intel Core Processors Pentium / Celeron Processors Xeon® E Processors |
| Processor Socket | LGA1151 |
| Chipset | Intel C246 Express |
| Memory Support | 4 x DDR4 memory slots supporting up 128GB Dual Channel Technology 32GB, 16GB, 8GB UDIMM,Capacity NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | Slot Location 1 : PCI-E x1 (Gen3 X1 Link) Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x8 (Gen3 X4 Link) |
| Onboard Graphics | 1 x HDMI 1 x DisplayPort 1 x VGA NOTE: Display support varies on CPU |
| Storage | 8 x SATA 6Gb/s 1 x M.2 NGFF 2242/2260/2280 |
| USB Rear I/O | 2 x USB 3.1 ports (Type A) 2 x USB 3.0 ports 2 x USB 2.0 ports |
| USB Internal Connectors | 2 x USB 2.0 pin header 1 x USB 3.0 pin header |
| Thunderbolt | N/A |
| RGB LED Connectors | N/A |
| Audio | 8-channel Audio I/O ports (5+1 Audio jacks) 1 x S/PDIF Out |
| LAN | 2 x Intel GB LAN |
| WIRELESS | N/A |
| Back Panel Connectors | 2 x USB 3.1 ports (Type A) 2 x USB 3.0 ports 2 x USB 2.0 ports 1 x HDMI 1 x DisplayPort 1 x VGA 2 x RJ-45 ports 8-channel Audio I/O ports (5+1 Audio jacks) |
| Internal Connectors | 2 x USB 2.0 pin header 1 x USB 3.0 pin header 1 x M.2 Connector , NGFF Type : 2280/2260/2242 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x COM port 1 x S/PDIF Out (Optical) |
| Form Factor | U ATX 244mm x 244mm |
