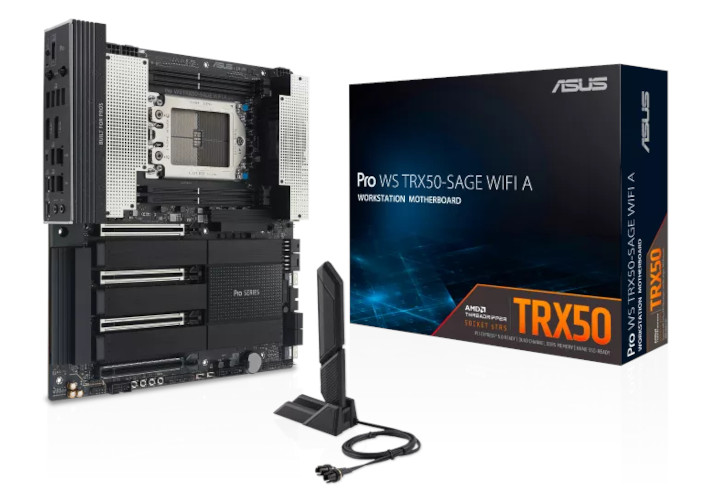

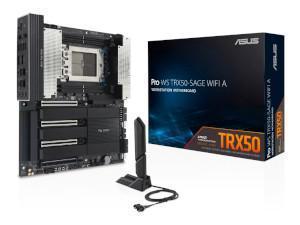

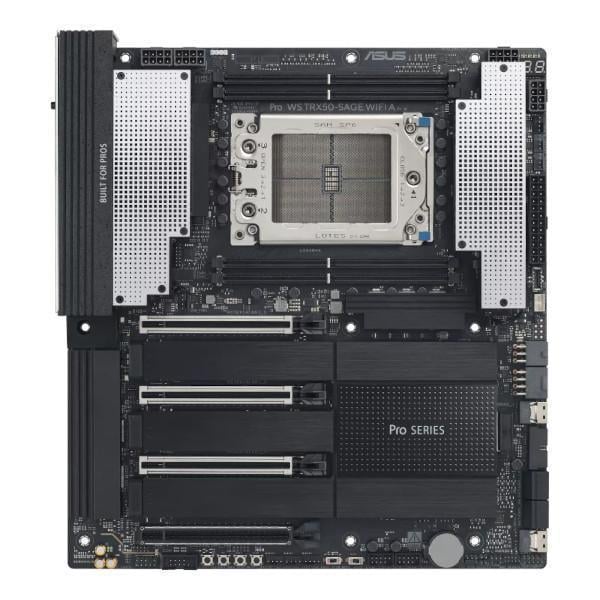

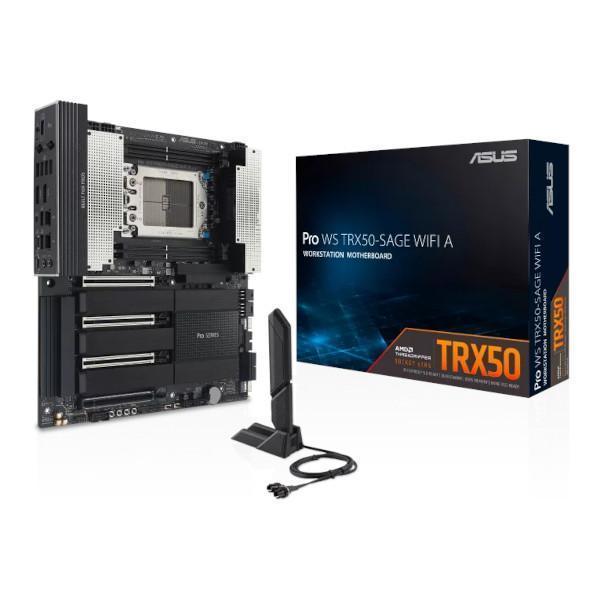

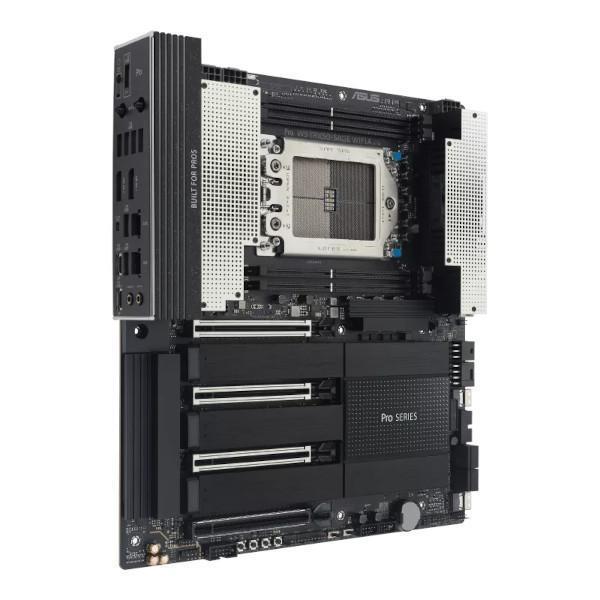

Pro WS TRX50-SAGE WIFI A, CEB, sTR5, DDR5, 3 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 4 x M.2, 1 x 10 Gb LAN, 1 x 2.5 Gb LAN, Wi-Fi 7
£769.98 inc vat
£641.65 ex vat
Or £33.26 for 24 monthswith 10% deposit of £77.00
| CPU Support | Supports AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors AMD Ryzen™ Threadripper™ 9000 Series Processors AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors AMD Ryzen™ Threadripper™ 7000 Series Processors |
| Chipset | AMD TRX50 Chipset |
| Memory Support | 4 x DDR5 memory slots 4-Channel memory architecture Support for DDR5 ECC Registered memory modules |
| Expansion Slots |
AMD Ryzen Threadripper PRO 9000 & 7000-WX / 9000 & 7000 Series Processors 3 x PCIe 5.0 x16 slots 1 x PCIe 4.0 x16 slot |
| Storage | 4 x SATA 6Gb/s AMD Ryzen Threadripper PRO 9000 & 7000-WX / 9000 & 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2 4 x SATA 6Gb/s ports SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3 AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| RAID | SATA Devices: RAID 0/1/5/10 NVMe Devices: RAID 0/1/5/10 |
| USB Rear I/O | 2 x USB4® (40Gbps) (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A ) 1 x USB 2.0 ports (1 x Type-A ) |
| USB Internal Connectors | 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| RGB LED Connectors | 1 x Addressable Gen 2 headers |
| Audio | Realtek ALC1220P Surround Sound High Definition Audio CODEC Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback" Audio Features Audio Shielding Dedicated audio PCB layers Unique de-pop circuit |
| LAN | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® I226-LM 2.5Gb Ethernet |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4 |

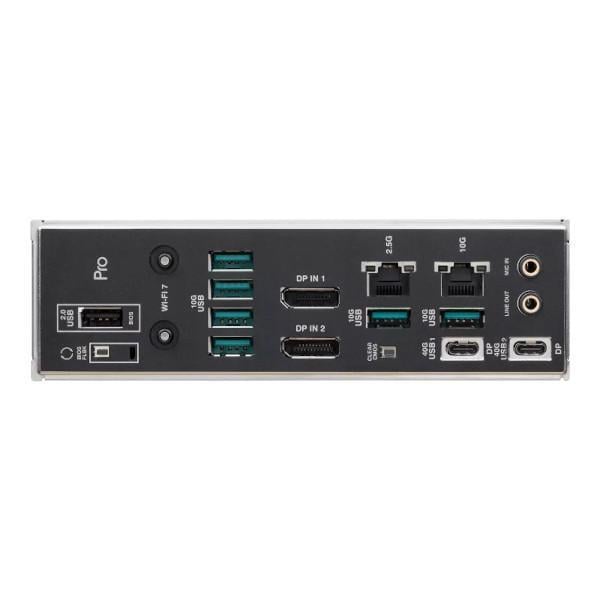

| Back Panel Connectors | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 2 x DisplayPort IN 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal Connectors |
Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power Related 1 x 24-pin Main Power connectors 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C® 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable RGB Gen 2 header 1 x BMC header 1 x COM Port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Chassis intrusion header 1 x Thermal Sensor header 7 x ProbeIt Measurement Points |
| Form Factor | E-ATX 305mm x 330mm |
