£499.99 inc vat
£416.66 ex vat
Or £21.60 for 24 monthswith 10% deposit of £50.00

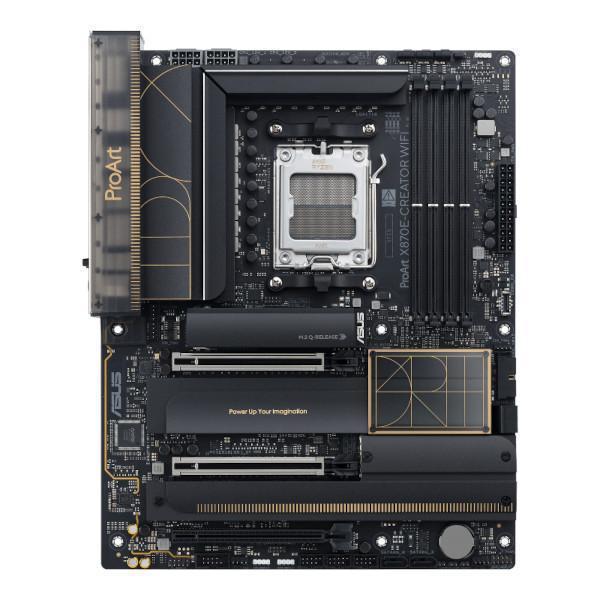

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) AMD Ryzen 8500 & 8300 Series Desktop Processors 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Onboard Graphics | 1 x HDMI 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| Storage | 4 x M.2 slots and 4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series-Pheonix Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) NOTE: For full M.2 PCIe configuration support please visit motherboard manufacturer website support page |
| RAID |
AMD Ryzen 9000 Series Desktop Processors RAID 0/1/5/10 AMD Ryzen 8000 Series-Pheonix Desktop Processors RAID 0/1 AMD Ryzen 7000 Series Desktop Processors RAID 0/1/10 |
| USB Rear I/O | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) |
| USB Internal Connectors | 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | Realtek 7.1 Surround Sound High Definition Audio |
| LAN | 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Bluetooth v5.4 |

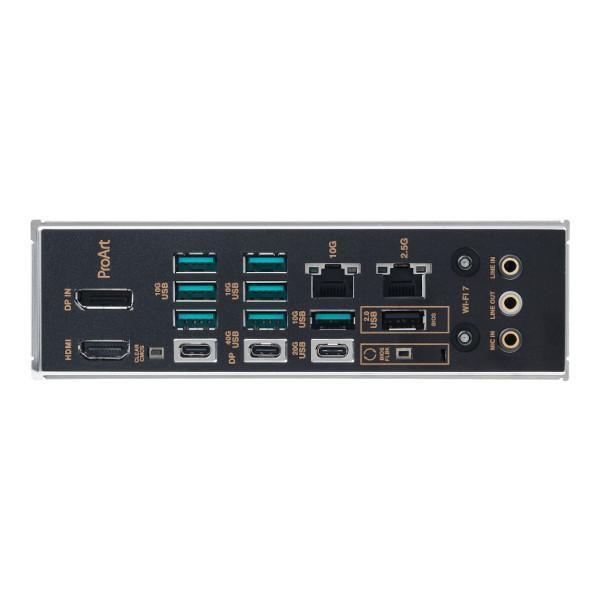

| Back Panel Connectors | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet 1 x Intel® 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Form Factor | ATX 305mm x 244mm |
