90MB1IP0-M0EAY0, ATX, LGA1851, DDR5, 2 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 4 x M.2, 4 x SATA, 1 x 5 Gb LAN, Wi-Fi 7, USB4
£726.98
£559.98 inc vat
£466.65 ex vat
You save £167.00
Or £24.19 for 24 monthswith 10% deposit of £56.00

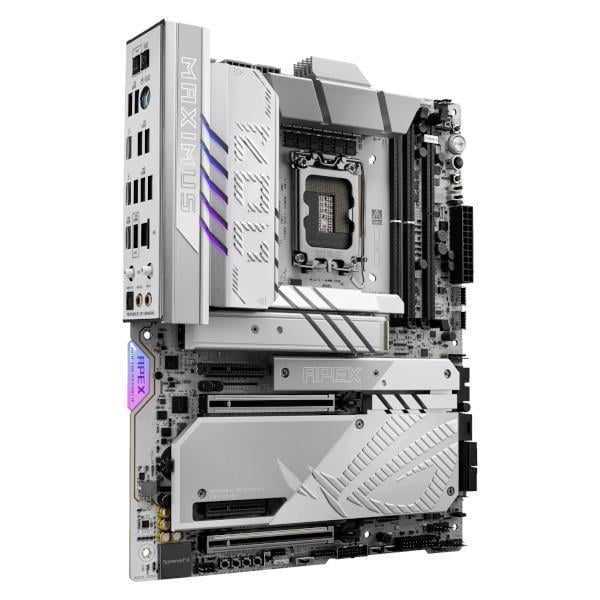

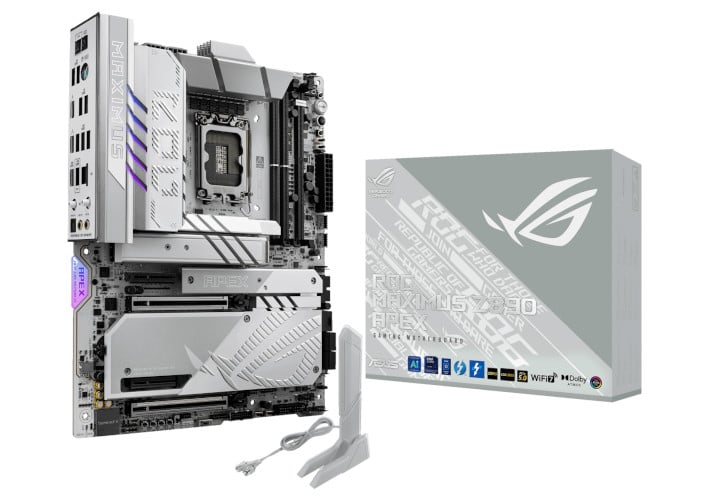

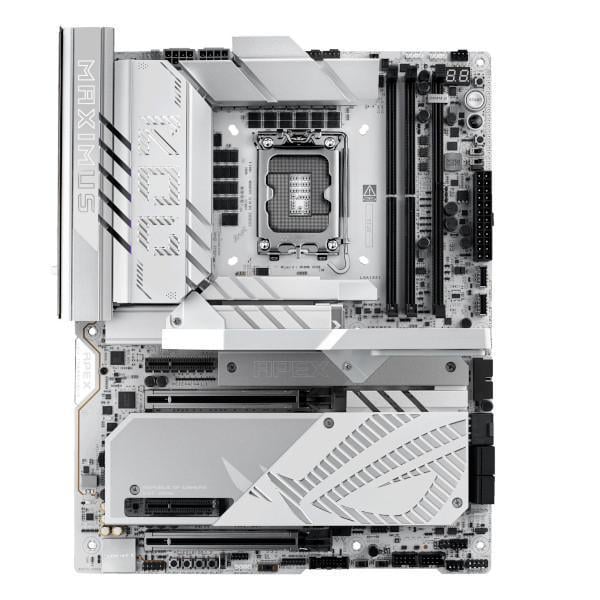

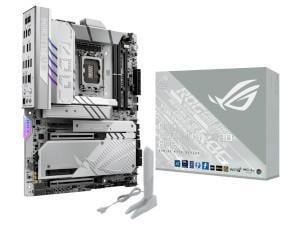

The ROG Maximus Z890 Apex fully supports Intel® Core™ Ultra processors (Series 2). Precision-engineered for supreme overclocking, it carries the legacy of the series forward into a new generation. With exceptional power delivery and a two-slot DDR5 memory layout, overclockers can meet and exceed their ambitions for record-breaking CPU and memory performance. For those who favor lighter colors for the aesthetics of their build, the ROG Maximus Z890 Apex features a cobble-gray surface, polished metallic accents, sleek contours and a predominantly silver palette.
| CPU Support | Intel ® Core™ Ultra Processors |
| CPU Socket | LGA1851 |
| Chipset | Z890 |
| Memory Support | 2 x DDR5 memory slots Dual Channel Technology Supporting up to 128GB Supports up to 9600 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | Support Intel Core Ultra Processors(Series 2) 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel Z890 Chipset: 2 x PCIe 4.0 x4 slots |
| Onboard Graphics | 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs |
| Storage | 4 x SATA 6Gb/s ports Support Intel® Core™ Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) Intel® Z890 Chipset DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| USB Rear I/O | 2 x Thunderbolt™ 4 ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) |
| USB Internal Connectors | 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
| LAN | 1 x Realtek® 5Gb LAN |
| Wi-Fi | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth® v5.4 |

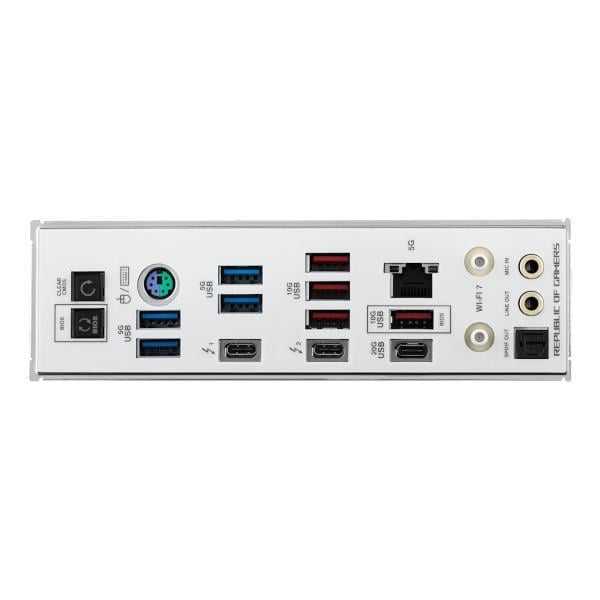

| Back Panel Connectors | 2 x Thunderbolt™ 4 ports (USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port |
| Internal Connectors |
Fan and Cooling 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x 8-pin PCIe Power connector Storage 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x Pause switch 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
| Form Factor | M-ATX 244mm x 211mm |
| Operating System Support | Windows 11 64-bit |
