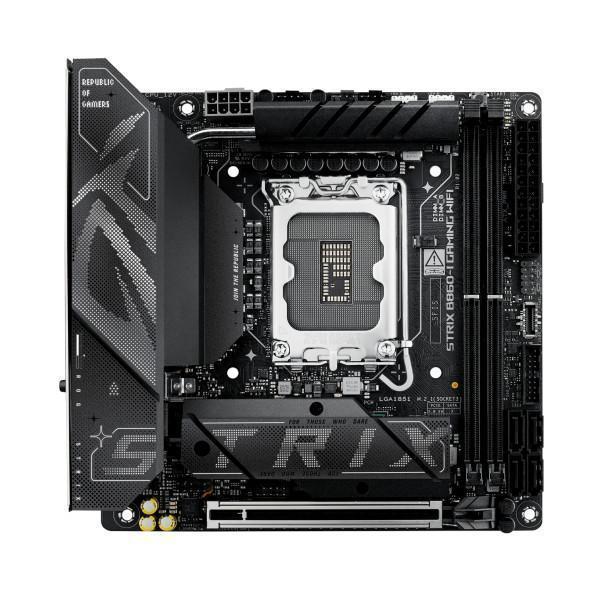

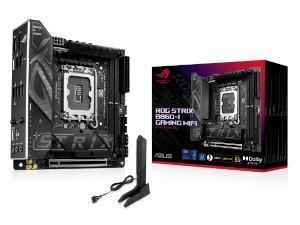

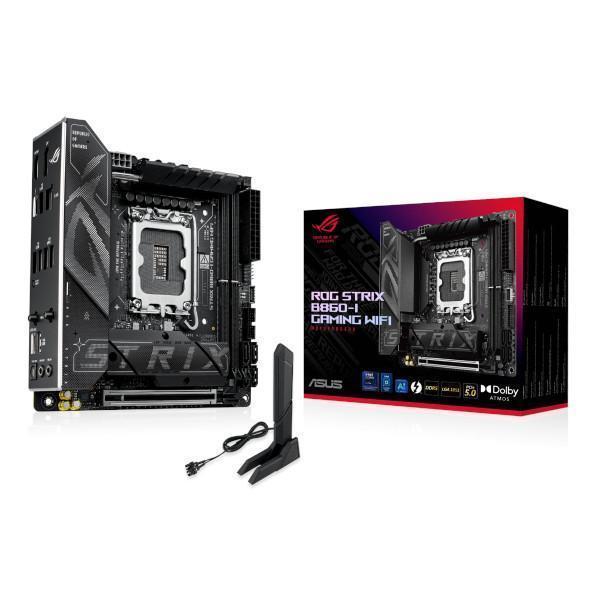

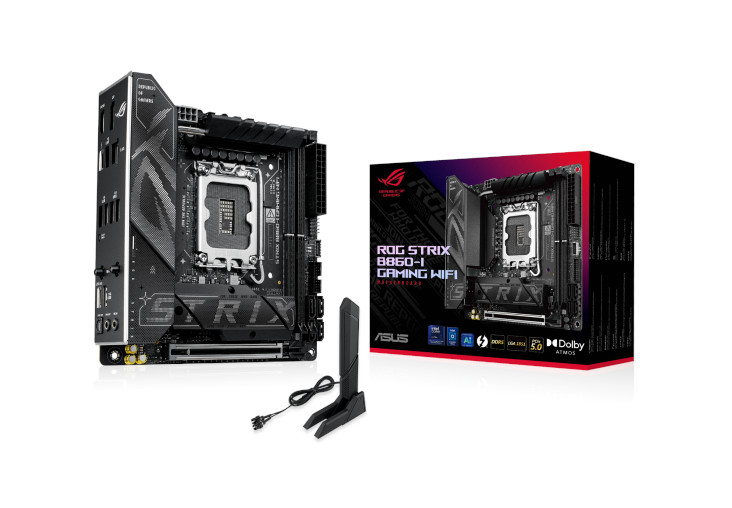

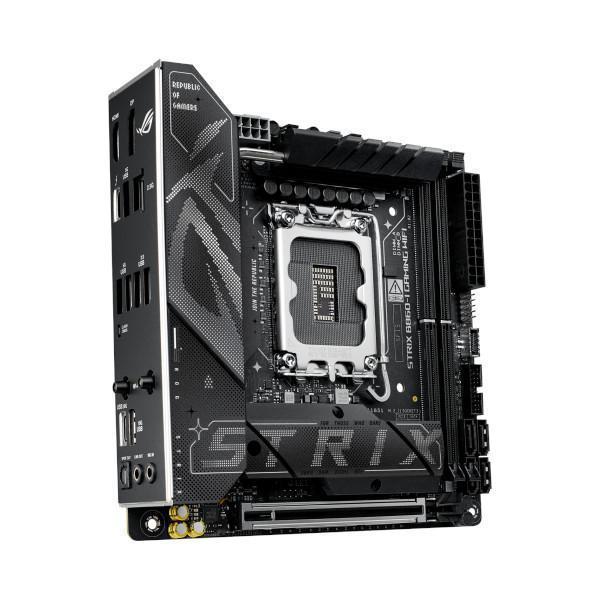

ROG STRIX B860-I GAMING WIFI, Mini-ITX, LGA1851, DDR5, 1 x PCIe 5.0 x 16, 2 x M.2, 2.5GB LAN, WIFI 7
£231.98
£219.98 inc vat
£183.32 ex vat
You save £12.00
The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel® Core™ Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt™ 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Chipset | B860 |
| Memory Support | 2 x DDR5 memory slots Dual Channel Memory Architecture Supporting up 128GB Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM) NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI® port 1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs NOTE: Display support varies on CPU |
| Storage |
Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s |
| RAID | SATA Devices: RAID 0/1/5/10 |
| USB Rear I/O | 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| USB Internal Connectors | 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C® power delivery output: max.5V/3A |
| RGB LED Connectors | 2 x Addressable Gen2 headers |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| LAN | 1 x Intel 2.5Gb Ethernet |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |

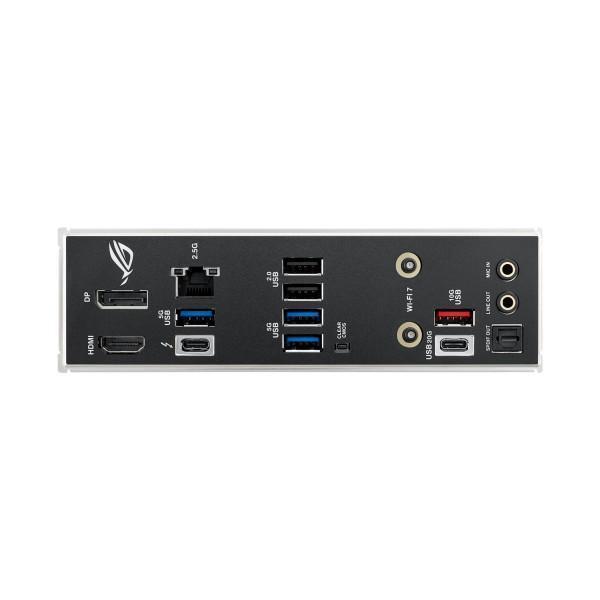

| Back Panel Connectors | 1 x Thunderbolt™ 4 port (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps ports (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x Clear CMOS button |
| Internal Connectors |
Fan and Cooling 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Form Factor | Mini-ITX 170mm x 170mm |
| Operating System Support | Windows 11 64-bit |
