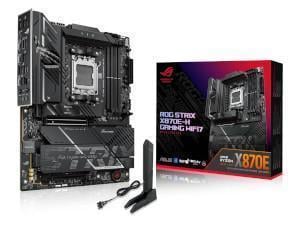

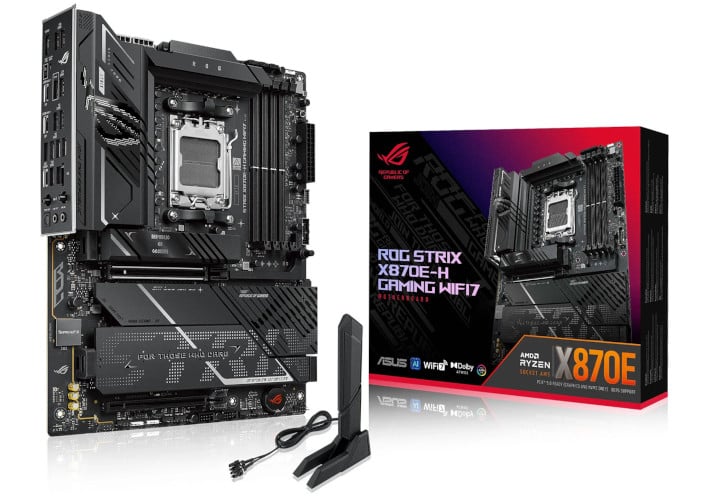

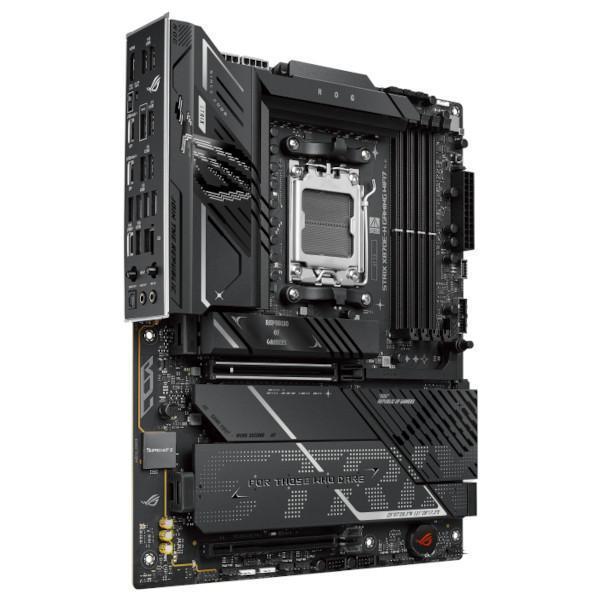

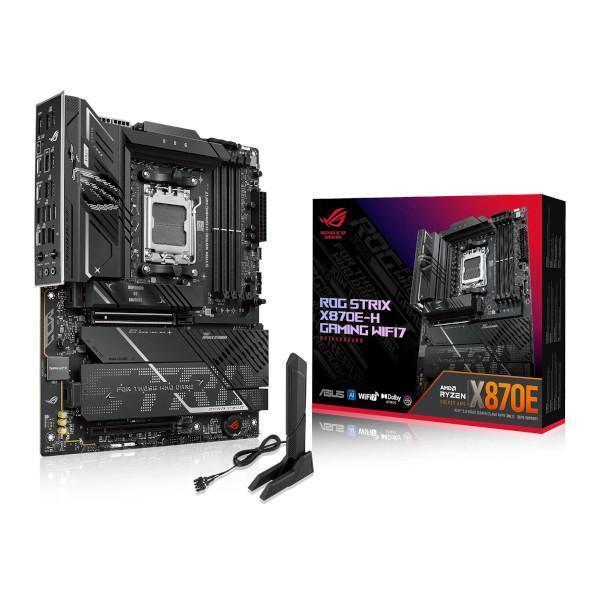

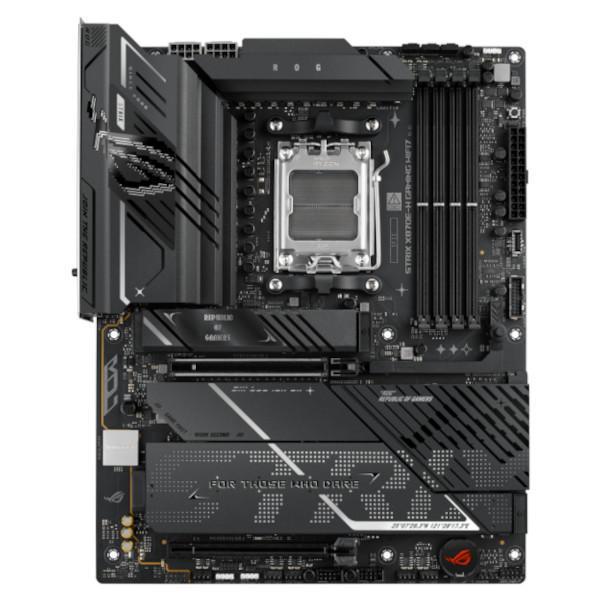

ROG STRIX X870E-H GAMING WIFI7, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 4 x M.2, 4 x SATA, 1 x 5 Gb LAN, USB 4.0, WIFI 7, HDMI
£357.98
£329.99 inc vat
£274.99 ex vat
You save £28.00
Or £14.25 for 24 monthswith 10% deposit of £33.00
Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X870E Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8000Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 (x8/x4 Speed) AMD X870 Chipset 1 x PCIe 4.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x HDMI 2.1 2 x USB4® (40Gbps) ports support USB Type-C® display outputs NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices AMD Ryzen 8000 Series Desktop Processors M.2_1 supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices AMD X870E Chipset M.2_3 supports up to PCIe 4.0 x4 , supports 2280 devices M.2_4 supports up to PCIe 4.0 x4 , supports 2280 devices |
| RAID | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| USB Rear I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge) 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) |
| USB Internal Connectors | 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | Realtek ALC1220P 7.1-Channel High Definition Audio |
| LAN | 1 x Realtek 5G LAN |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth Bluetooth® v5.4 |

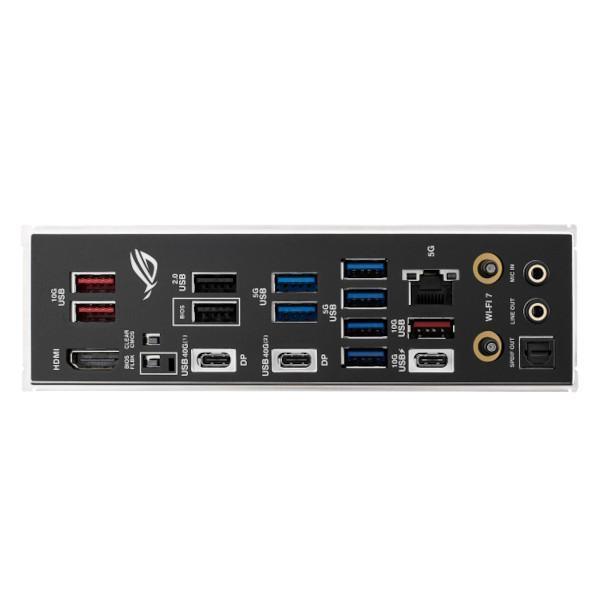

| Back Panel Connectors | 2 x USB4® (40Gbps) ports(2 x USB Type-C®) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C® with up to 30W PD/PPS Fast-charge) 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal Connectors |
Fan and Cooling 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) Storage 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header |
| Form Factor | ATX 305mm x 244mm |
