*B-Stock item - 2 1/2yrs warranty*GIGABYTE B760M DS3H AX Intel B760 Chipset Socket 1700 Micro ATX Motherboard - B-B760M DS3H AX

B-Stock item - 2 1/2yrs warrantyGIGABYTE B760M DS3H AX Intel B760 Chipset (Socket 1700) Micro ATX Motherboard overview

Board has been taken out of an unused Pc, not in retail box.Warranty - 2 1/2yrs

B760M DS3H AX

Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel Core processors

Unparalleled Performance: Twin 6+2+1 Phases Digital VRM Solution

Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors

M.2 Thermal Guard: To Ensure M.2 SSD Performance

Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity: Rear USB-C 10Gb/s, DP, HDMI

Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

DIY Features: EZ-Latch PCIe 4.0x16 Slot with Quick Release Design, Q-Flash Plus

CPU Support	14th Gen Intel Core processors 13th Gen Intel Core processors 12th Gen Intel Core processors
Socket	Intel LGA 1700
Chipset	Intel B760
Memory Support	4 x DDR5 memory slots supporting up 192GB Dual Channel Technology Supports up to 4800Mhz non-ECC, un-buffered memory Supports memory overclocking up to 7600MHz+ NOTE: Actual Memory data rate varies on CPU
Expansion Slots	1 x PCIe 4.0 x16 (x16 Speed) 2 x PCIe 3.0 x1
Onboard Graphics	1 x HDMI 2 x DisplayPort NOTE: Display support varies on CPU
Storage	4 x SATA 6Gb/s 2 x M.2 Key M, 2280, 22110, (PCIe 4.0 x4 Mode)
RAID	0/1/5/10 (Only for SATA storage devices)
USB Rear I/O	1 x USB 3.2 Gen 2 10Gbps Type-C 3 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 Type-A
USB Internal Connectors	2 x USB 3.2 Gen 1 Type-A (2 per header) 4 x USB 2.0 Type-A (2 per header)
Thunderbolt	None
RGB LED Connectors	1 x addressable LED strip headers 1 x RGB LED strip headers
Audio	Realtek Audio Codec 8-Channel (7.1) HD Audio Support for S/PDIF Out
LAN	1 x Realtek 2.5GB LAN
WIRELESS	Intel Wi-Fi 6E WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Supports Bluetooth 5.3
Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Internal Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor	Micro ATX 244mm x 244mm

Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.

Your Name

Your Email

Friends Name

Friends Email

Personal Message

Delivery Options

Next Working Day Delivery

Get your order delivered the next working day for £7.99, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared.

Pre 12 Next Working Day Delivery

Get your order delivered the next working day before 12:00pm for £10.98, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared. Some orders if via PayPal and the first customer order may not clear in time.

Weekend Delivery - Saturday & Sunday

If you need your order at the weekend, for £12.58, you can specify the day you wish to have it delivered to you, Saturday or Sunday providing your order has been placed by 17:00 on the Friday before.

Economy Delivery

Economy delivery is available on all orders of any value being shipped within the UK.

B-Stock item - 2 1/2yrs warrantyGIGABYTE B760M DS3H AX Intel B760 Chipset (Socket 1700) Micro ATX Motherboard

B-Stock item - 2 1/2yrs warrantyGIGABYTE B760M DS3H AX Intel B760 Chipset (Socket 1700) Micro ATX Motherboard overview

B760M DS3H AX

Delivery Options

Next Working Day Delivery

Pre 12 Next Working Day Delivery

Weekend Delivery - Saturday & Sunday

Economy Delivery

Similar products

MSI PRO B760M-P Intel B760 Chipset (Socket 1700) Micro ATX motherboard

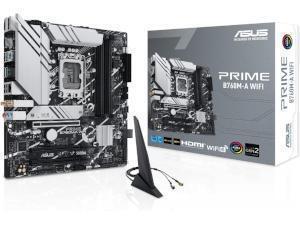

ASUS Prime B760M-A WIFI Intel B760 Chipset (Socket 1700) Micro ATX Motherboard
