X870E B850 EAGLE WIFI6E, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 4 x M.2, 1 x Gbe LAN, Wi-Fi 7
£459.98
£408.98 inc vat
£340.82 ex vat
You save £51.00
Or £17.67 for 24 monthswith 10% deposit of £40.90
- DDR5 OC up to 8600MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- DDR Wind Blade : Enhanced Active Cooling for Memory Modules
- M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Ultra-Fast Storage : 4*M.2 slots, including 3* PCIe 5.0 x4
- Fast Networking : 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
| CPU Support | AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors |
| CPU Socket | AM5 |
| Chipset | X870E |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up 256GB Supports up to 8600 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
| Onboard Graphics | 2 x USB4® USB Type-C® ports 1 x HDMI port |
| Storage |
M.2_1 slot (Key M), type 2280/2580/22110/25110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB Rear I/O | 2 x USB4® USB Type-C® ports 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub 4 x USB 3.2 Gen 1 ports on the back panel 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 2.0/1.1 ports |
| USB Internal Connectors | 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB
header 4 x USB 2.0/1.1 ports available through the internal USB headers 4 x USB 3.2 Gen 1 ports available through the internal USB headers |
| RGB LED Connectors | 4 x Addressable Gen 2 headers |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| WIRELESS | Qualcomm® Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard |

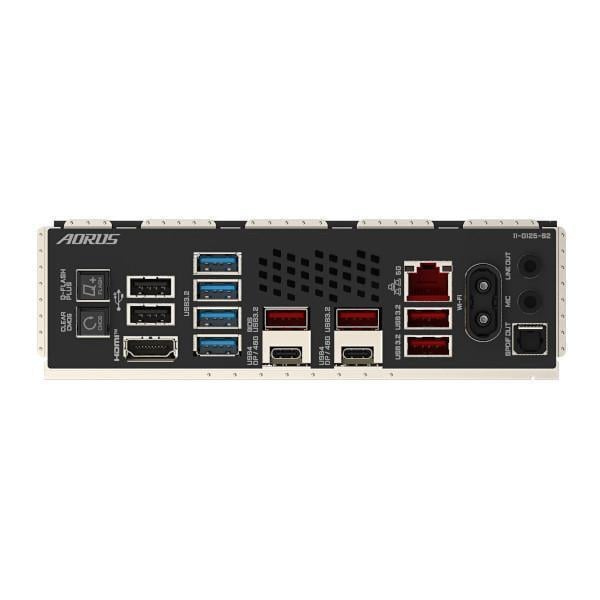

| Back Panel Connectors | 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x HDMI port (Note) 2 x USB4® USB Type-C® ports 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal Connectors |
Fan and Cooling 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers Power 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors Storage 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors USB 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers Miscellaneous 4 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
