GIGABYTE B850 AORUS ELITE WIFI7 AMD B850 Chipset Socket AM5 ATX Motherboard - B850 AORUS ELITE WIFI7

GIGABYTE B850 AORUS ELITE WIFI7 AMD B850 Chipset (Socket AM5) ATX Motherboard overview

B850 AORUS ELITE WIFI7

AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors

X3D Turbo Mode: Unleash the new era of gaming performance

WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design

EZ-Latch Click M.2 heatsinks with screwless design

Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup

Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

Ultra-Fast Storage: 3 x M.2 slots, including PCIe 5.0 x4

Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.

Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

Extended Connectivity: HDMI, Displayport

PCIe UD Slot: PCIe 5.0 x16 slot with 10X strength for graphics card

CPU Support	Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD B850 Chipset
Memory Support	4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8200Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 (x16 Speed) AMD Ryzen 8000 Series-Pheonix 1 Desktop Processors 1 x PCIe 4.0 x16 (x8 Speed) AMD Ryzen 8000 Series-Pheonix 2 Desktop Processors 1 x PCIe 4.0 x16 (x4 Speed) AMD B850 Chipset 2 x PCIe 3.0 x16 (x1 Speed)
Onboard Graphics	1 x DisplayPort (3840x2160@144 Hz) 1 x Front HDMI port (1920x1080@30 Hz) NOTE: Display support varies on CPU
Storage	4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M2A_CPU slot (Key M), type 225110/22110/2580/2280 (supports PCIe 5.0 x4 mode) M2B_CPU slot (Key M), type 25110/22110/2580/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series-Pheonix Desktop Processors M2A_CPU slot (Key M), type 225110/22110/2580/2280 (supports PCIe 4.0 x4 mode) M2B_CPU slot (Key M), type 25110/22110/2580/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M2D_SB slot (Key M), type 25110/22110/2580/2280 (supports PCIe 4.0 x4 mode)
RAID	RAID 0/1/5/10
USB Rear I/O	1 x USB 3.2 Gen 2 Type-C port 2 x USB 3.2 Gen 2 Type-A ports 5 x USB 3.2 Gen 1 Type-A ports 4 x USB 2.0 Type-A port
USB Internal Connectors	1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen1 header supports up to 2 additional USB 3.2 Gen1 ports 2 x USB 2.0 headers supports up to 4 additional USB 2.0 ports
RGB LED Connectors	3 x Addressable Gen 2 headers 1 x RGB LED strip header
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	1 x Realtek 2.5Gbps LAN controller
WIRELESS	Wi-Fi 7 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard

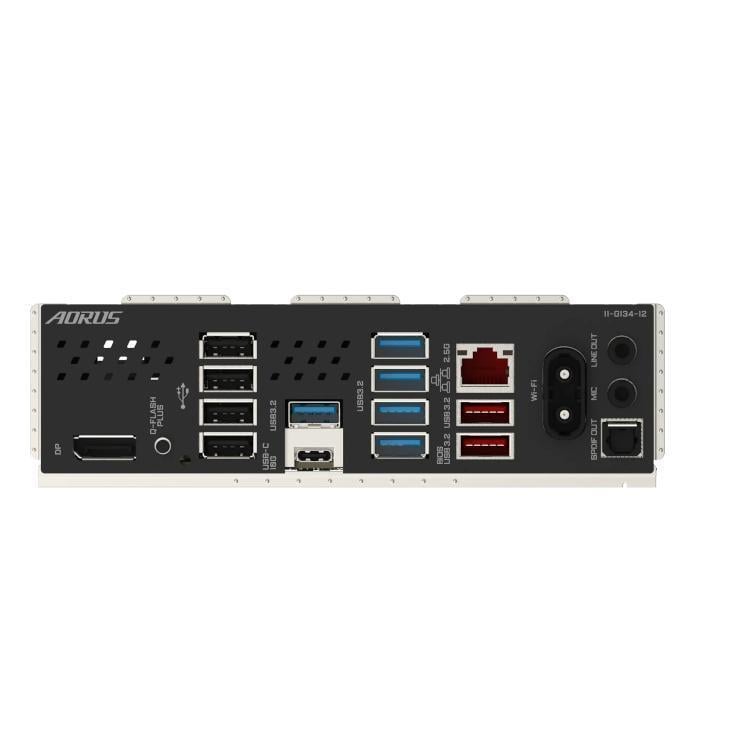

Back Panel Connectors	1 x DisplayPort 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector
Internal Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor	ATX 305mm x 244mm
