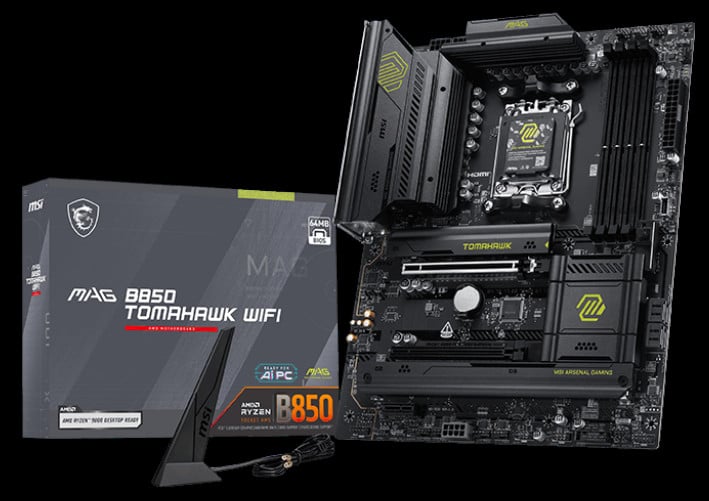

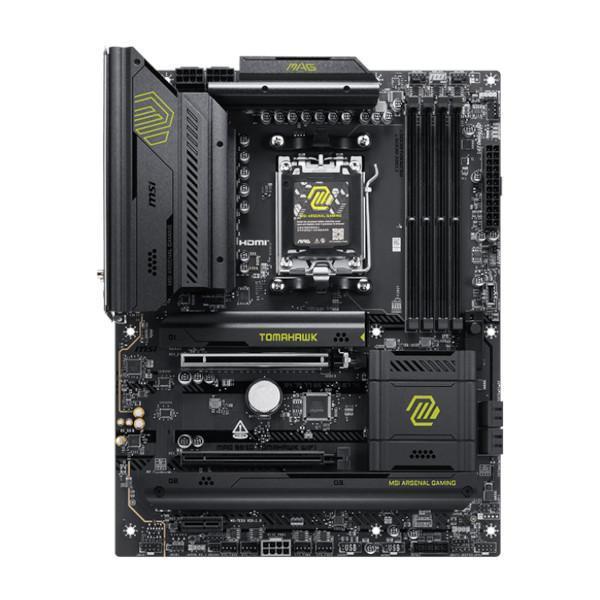

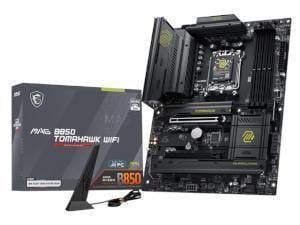

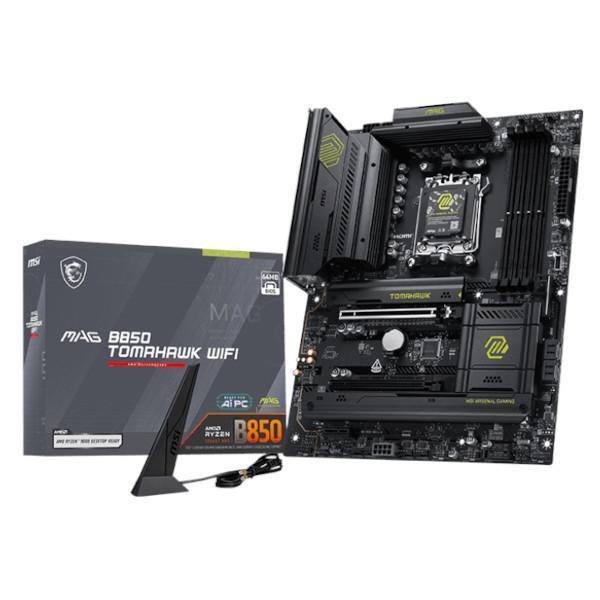

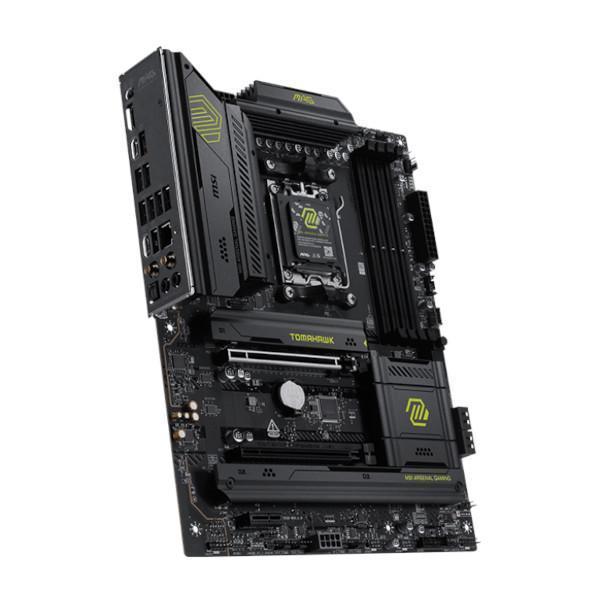

MAG B850 TOMAHAWK WIFI, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x PCIe 3.0 x1, 3 x M.2, 4 x SATA, 1 x 5 Gb LAN, Wi-Fi 7, HDMI
£209.99 inc vat
£174.99 ex vat
MAG B850 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
| CPU Support | AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| CPU Socket | AM5 |
| Chipset | B850 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up 256GB Supports up to 8200 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Onboard Graphics | 1 x HDMI 1.2 NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| RAID | M.2 Devices: RAID 0/1 |
| USB Rear I/O | 4x USB 2.0 2x USB 5Gbps Type A 2x USB 10Gbps Type A 1x USB 10Gbps Type C 1x USB 20Gbps Type C |
| USB Internal Connectors | 4x USB 2.0 2x USB 5Gbps Type A 1x USB 10Gbps Type C |
| RGB LED Connectors | 3 x Addressable V2 RGB LED connector 1 x RGB LED connector |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| LAN | 1 x Realtek® 8126VB 5G LAN |
| WIRELESS | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4, MLO, 4KQAM |

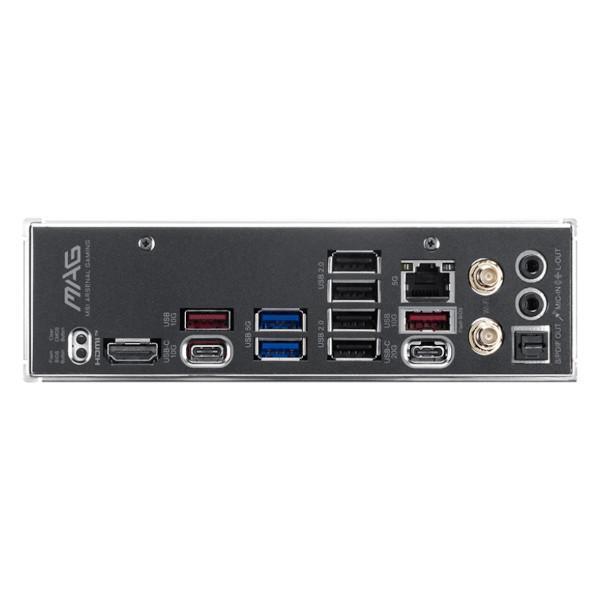

| Back Panel Connectors | 1 x Clear CMOS Button 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x 5G LAN 1 x Wi-Fi / Bluetooth 1 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI™ 1 x USB 10Gbps Type-C 1 x USB 20Gbps Type-C 1 x Optical S/PDIF Out |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) Storage 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports Miscellaneous 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x BCLK Frequency Jumpers(JBCLK) |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
