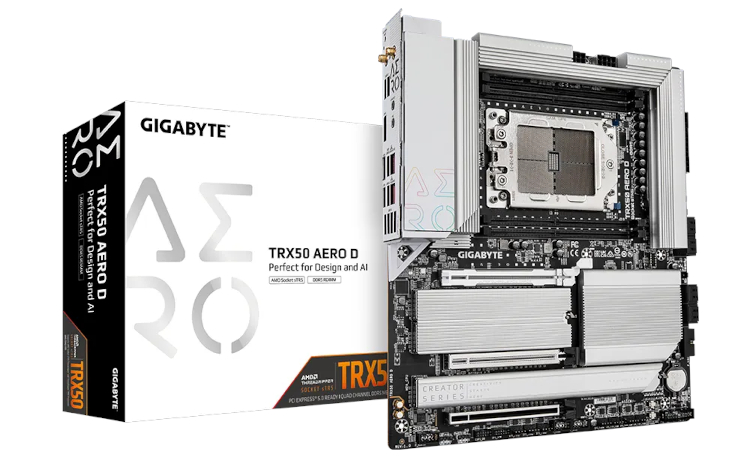

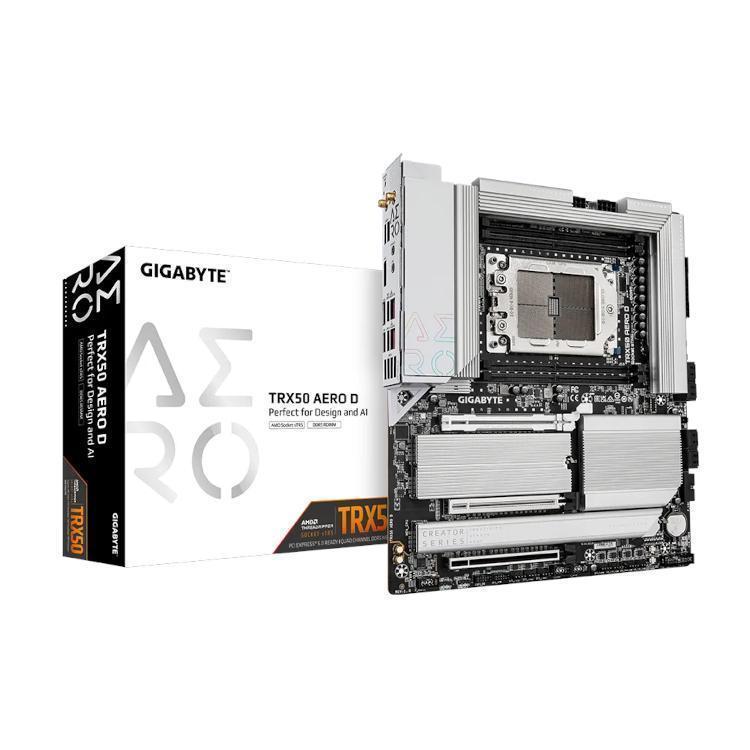

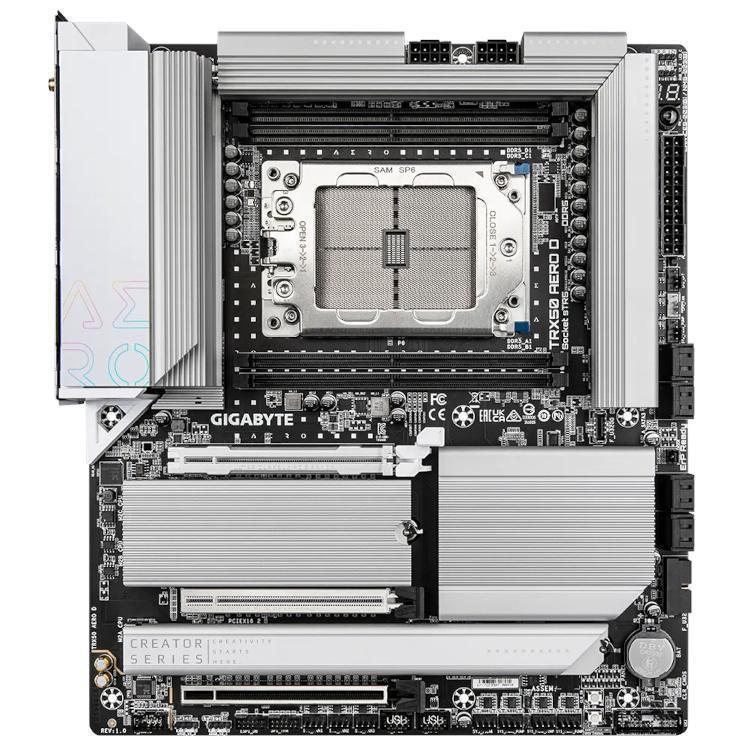

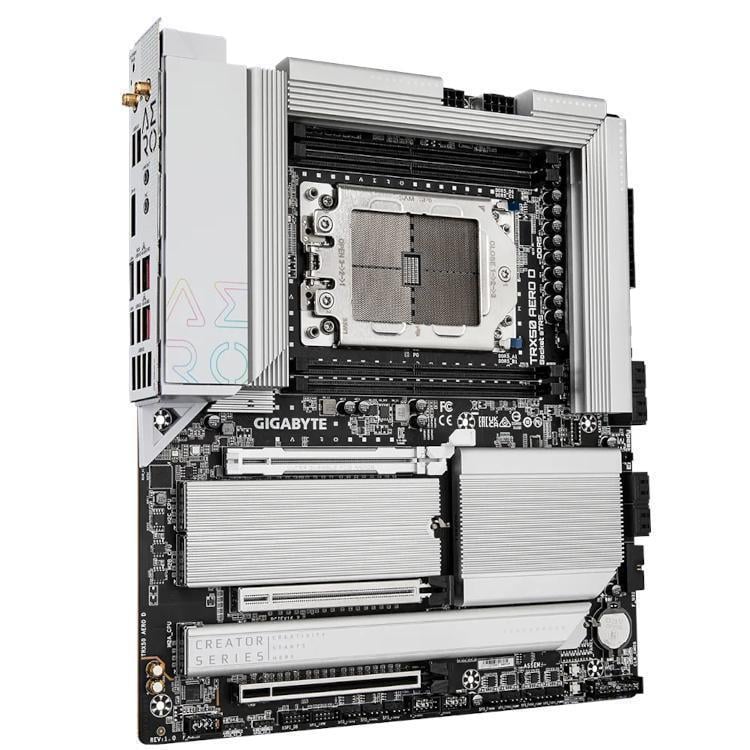

GIGABYTE TRX50 AERO D, EATX, sTR5, DDR5, 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 4 x M.2, 1 x 10 Gb LAN, 1 x 2.5 Gb LAN, Wi-Fi 7
£679.99 inc vat
£566.66 ex vat
Or £29.37 for 24 monthswith 10% deposit of £68.00
| CPU Support | AMD Ryzen Threadripper PRO 7000 WX Series Processors AMD Ryzen Threadripper 7000 Series Processors |
| Chipset | AMD TRX50 |
| Socket | sTR5 |
| Memory Support | 4 x DDR5 memory slots supporting up to 1TB Quad Channel Technology Supports up to 5200 Mhz ECC, buffered memory NOTE: Memory capacity and data rate varies on CPU |
| Expansion Slots | 2 x PCIe 5.0 x16 (x16 Speed) 1 x PCIe 4.0 x16 (x16 Speed) |
| Onboard Graphics | None |
| Storage | 8 x SATA 6Gb/s 1 x M.2 Key M, 25110/2280 (PCIe 5.0 x4/x2 Mode) 2 x M.2 Key M, 22110/2280 (PCIe 4.0 x4/x2 Mode) 1 x M.2 Key M, 2280 (PCIe 4.0 x4/x2 Mode) |
| RAID | 0/1/10 (SATA & NVME Devices) |
| USB Rear I/O | 1 x USB4 USB Type-C port (DisplayPort) 1 x USB4 USB Type-C port 4 x USB 3.2 Gen 2 Type-A ports 4 x USB 3.2 Gen 1 Type-A ports |
| USB Internal Connectors | 1 x USB 3.2 Gen 2x2 Type-C header (Supports 1 x USB 3.2 Gen 2x2 Type-C) 1 x USB 3.2 Gen 1 header (Supports up to 2 x USB 3.2 Gen 1 Type-A) 2 x USB 2.0 headers (Supports up to 4 x USB 2.0) |
| Thunderbolt | N/A |
| RGB LED Connectors | 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header |
| Audio | Realtek HD Audio Codec 7.1 HD Audio |
| LAN | 1 x Marvell AQtion AQC113C 10GbE LAN 1 x Realtek 2.5GbE LAN |
| WIRELESS | Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard NOTE: Wi-Fi 7 features require Windows 11 SV3 to function correctly (No Windows 10 Drivers) |

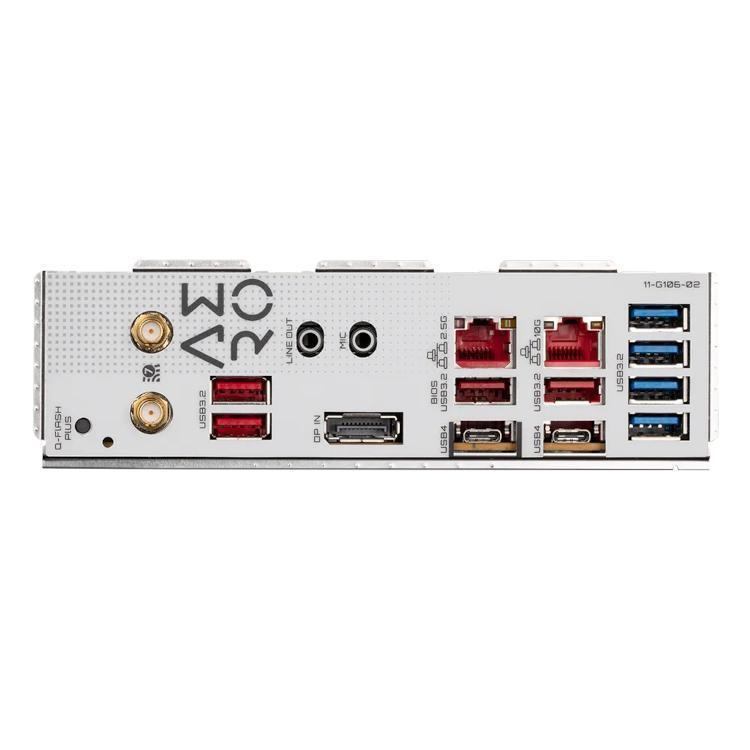

| Back Panel Connectors | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort In port 1 x USB4® USB Type-C port (DisplayPort) 1 x USB4® USB Type-C port 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x RJ-45 ports 2 x audio jacks |
| Internal Connectors | Fan and Cooling Connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump header Power Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connector Storage Connectors 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors USB Headers 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers Miscellaneous 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header 1 x power button 1 x Clear CMOS button 2 x temperature sensor headers 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | E-ATX 305mm x 264mm |
Why not Tell A Friend about this product, all you need to do is fill out their information below and click send.
Get your order delivered the next working day for £7.99, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared.
Get your order delivered the next working day before 12:00pm for £10.98, available when ordering Monday - Thursday and before 17:00 on that day if the product is in stock and your payment has cleared. Some orders if via PayPal and the first customer order may not clear in time.
If you need your order at the weekend, for £12.58, you can specify the day you wish to have it delivered to you, Saturday or Sunday providing your order has been placed by 17:00 on the Friday before.
Economy delivery is available on all orders of any value being shipped within the UK.
Order Code: GIG-TRX5AD
£679.99 inc vat
£566.66 ex vat
