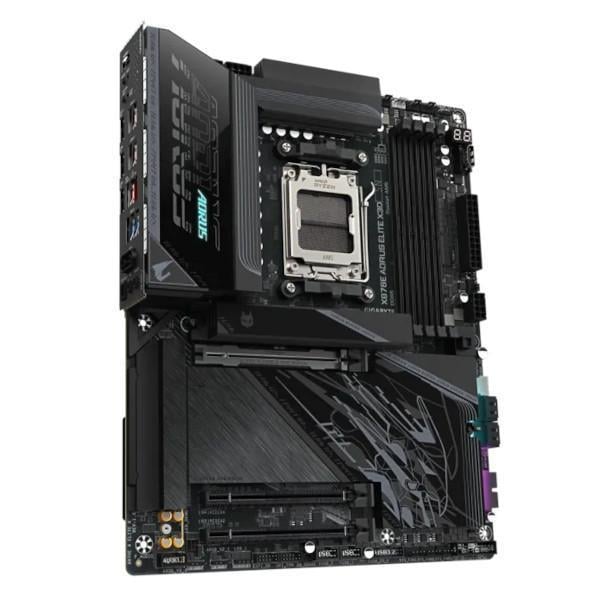

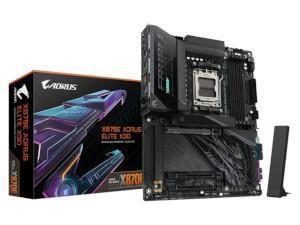

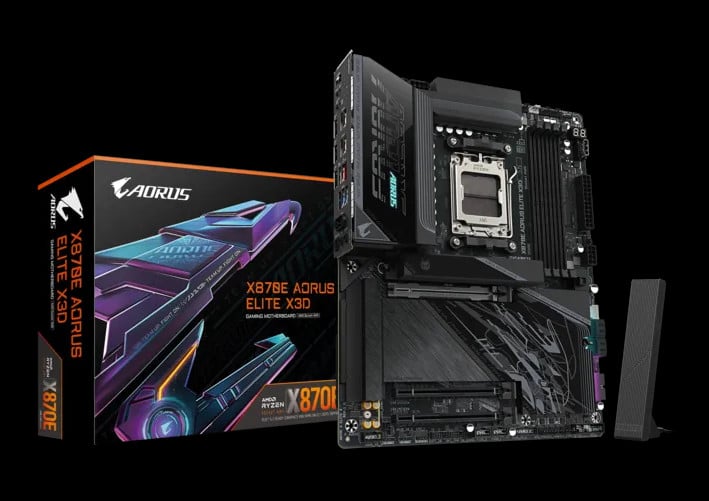

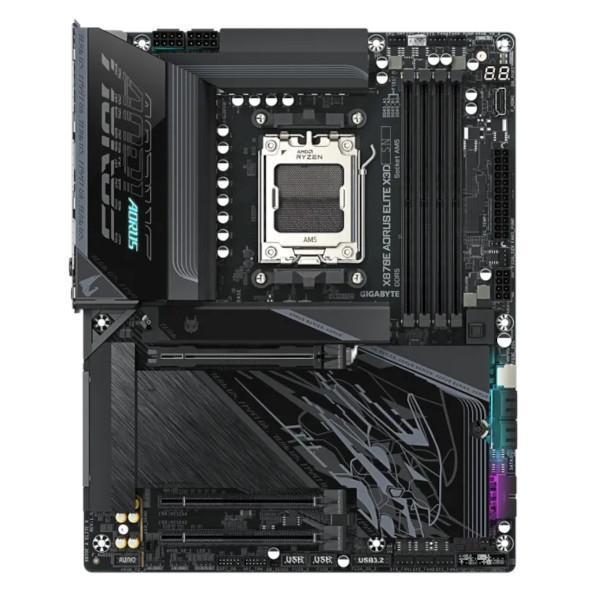

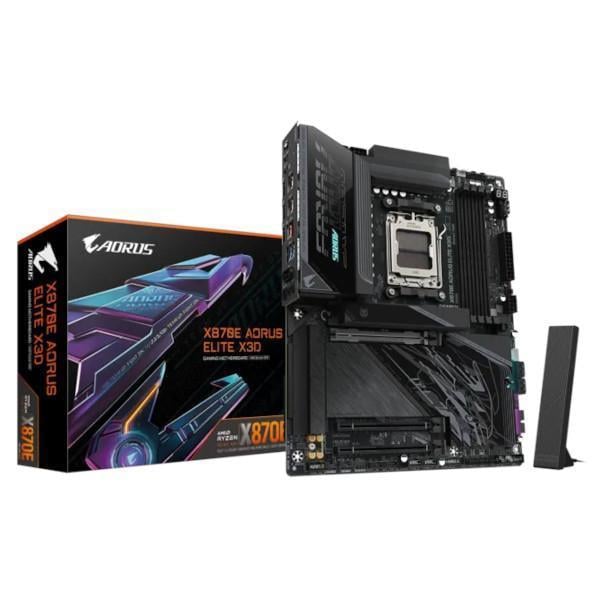

X870E AORUS ELITE X3D, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16, 4 x M.2, 1 x 5 Gb LAN, Wi-Fi 7, USB 4.0, HDMI
£299.99 inc vat
£249.99 ex vat
Or £12.96 for 24 monthswith 10% deposit of £30.00
- DDR5 OC up to 9000MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 16+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- Ultra-Fast Storage : 4 x M.2 slots, including 1 PCIe 5.0 x4
- Fast Networking : 1 x 5 GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
| CPU Support | AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors |
| CPU Socket | AM5 |
| Chipset | X870E |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up to 256GB Supports up to 9000 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | CPU: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x2 |
| Onboard Graphics | - 2 x USB4® USB Type-C® ports, supporting a maximum resolution of 3840x2160@240 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
| Storage | 4 x SATA 6Gb/s 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs 2 x M.2 connector (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB Rear I/O | - 5 x USB 3.2 Gen 2 Type-A ports (red) - 1 x USB Type-C® port, with USB 3.2 Gen 2 support - 2 x USB4® USB Type-C® ports |
| USB Internal Connectors | - 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support - 2 x USB 3.2 Gen 1 headers - 2 x USB 2.0/1.1 headers |
| RGB LED Connectors | 3 x Addressable Gen 2 headers 1 x RGB LED strip header |
| Audio | Realtek® ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | 1 x Realtek® 5GbE LAN |
| WIRELESS | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard |

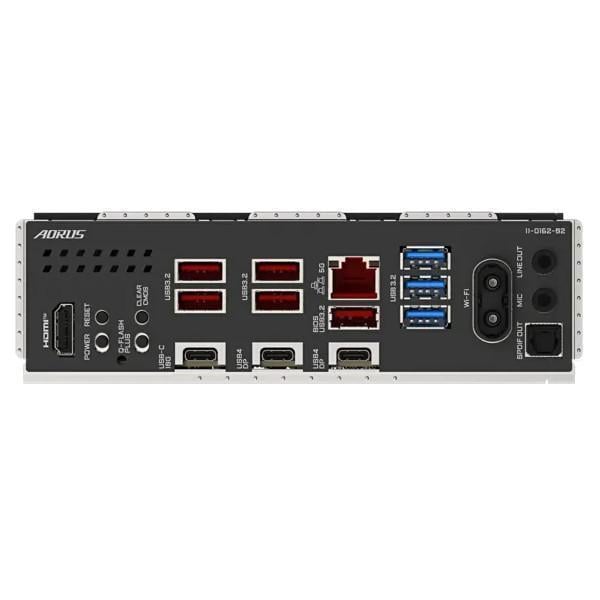

| Back Panel Connectors | 1 x HDMI port (Note) 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 5 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB4® USB Type-C® ports (DisplayPort (Note)) 1 x RJ-45 port 3 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal Connectors |
Fan and Cooling 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x System fan/water cooling pump headers Power 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x PCIe power connector Storage 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors USB 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers Miscellaneous 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header 1 x front panel header 1 x front panel audio header |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
