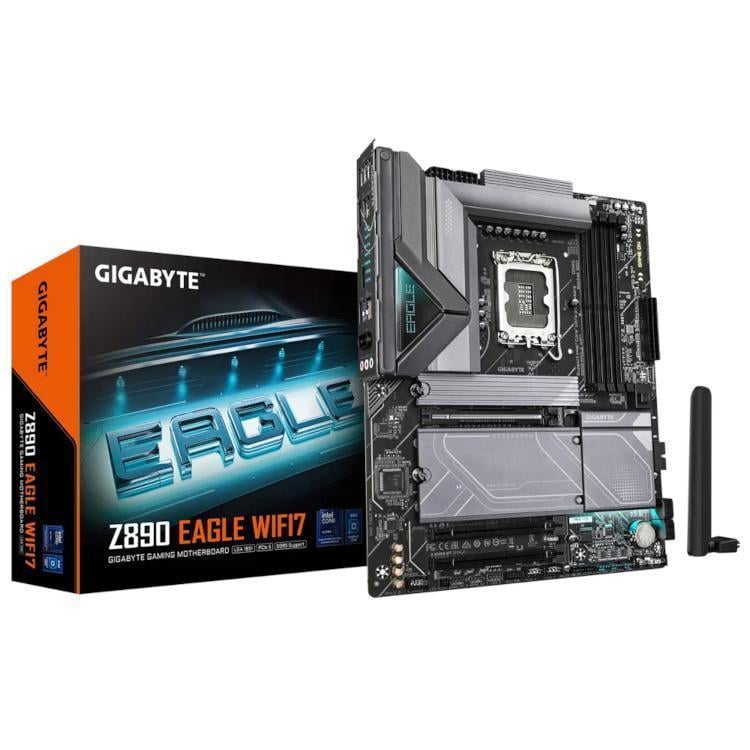

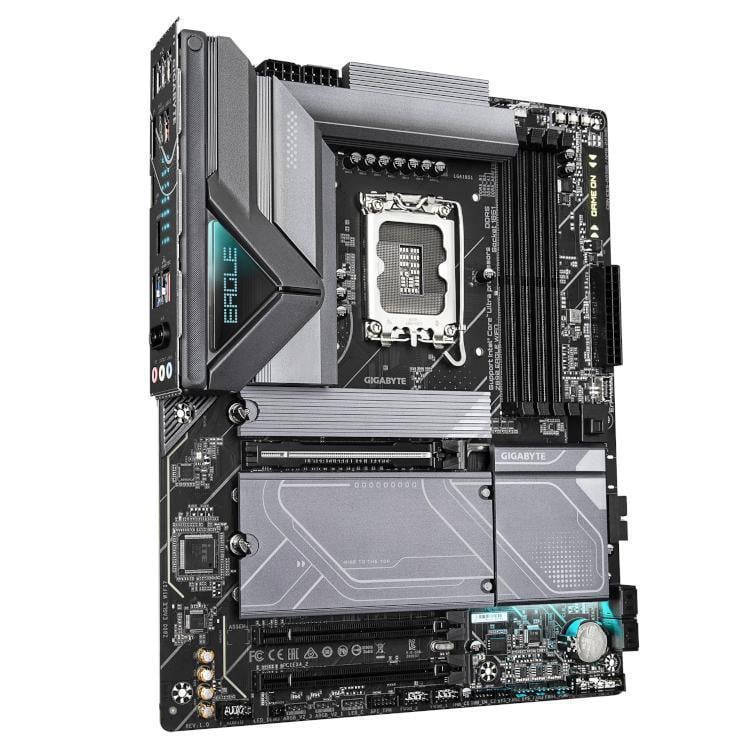

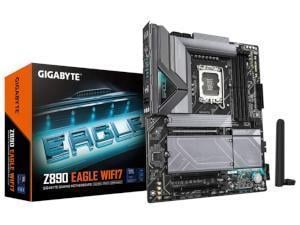

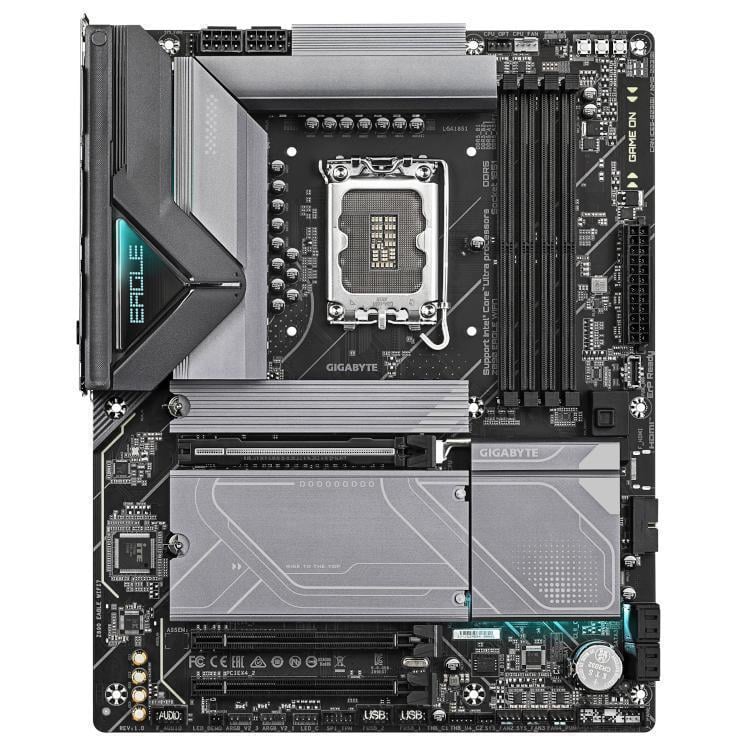

Z890 EAGLE WIFI7, ATX, LGA1851, DDR5, 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16, 4 x M.2, 4 x SATA, 1 x 2.5 Gb LAN, Wi-Fi 7, USB4
£199.99
£194.99 inc vat
£162.49 ex vat
You save £5.00
The Z890 EAGLE WIFI7 offers exception value and features for perofrmance users. Featuring a sturdy digital twin 14+1+2 phases VRM solution and advanced DDR5 memory that can overclock up to 9,200 MT/s. To keep your system cool and stable, the Z890 EAGLE WIFI7 features efficient cooling solutions, including Thermal Armor Advanced and M.2 Thermal Guard. The motherboard's DIY-friendly EZ-Latch design makes it easy to detach and assemble components, allowing you to personalize a gaming system that satisfies your needs effortlessly. With its Ultra Durable technology, the Z890 EAGLE WIFI7 is engineered for lasting performance and reliability.
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Chipset | Z890 |
| Memory Support | 4 x DDR5 memory slots Dual Channel Technology Supporting up 256GB Supports up to 9200 Mhz non-ECC, un-buffered memory Supports CUDIMM NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 Speed) 2 x PCIe 4.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x DisplayPort 1 x Type-C USB 4.0 (Supporting DisplayPort) NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| RAID | SATA & NVMe Devices: RAID 0/1/5/10 |
| USB Rear I/O | 1 x USB4 (USB Type-C) port 2 x USB 3.2 Gen 2 Type-A ports 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| USB Internal Connectors | 1 x USB Type-C port with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| RGB LED Connectors | 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN | 1 x Realtek 2.5 GbE LAN |
| WIRELESS | Wi-Fi 7 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard |

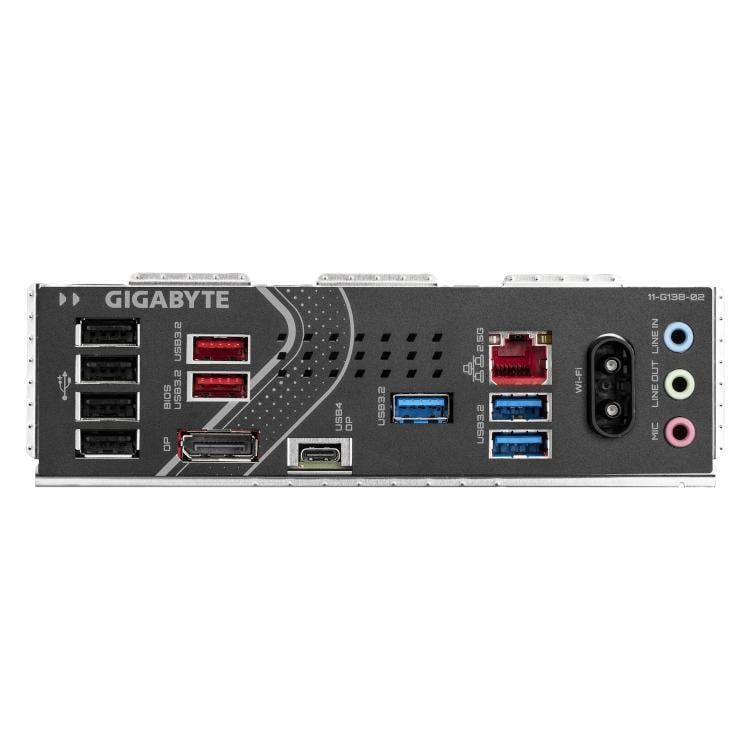

| Back Panel Connectors | 1 x USB4 USB Type-C port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
| Internal Connectors |
Fan and Cooling 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header Power 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Type-C port with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports Miscellaneous 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
