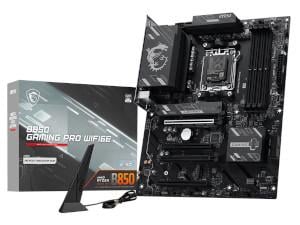

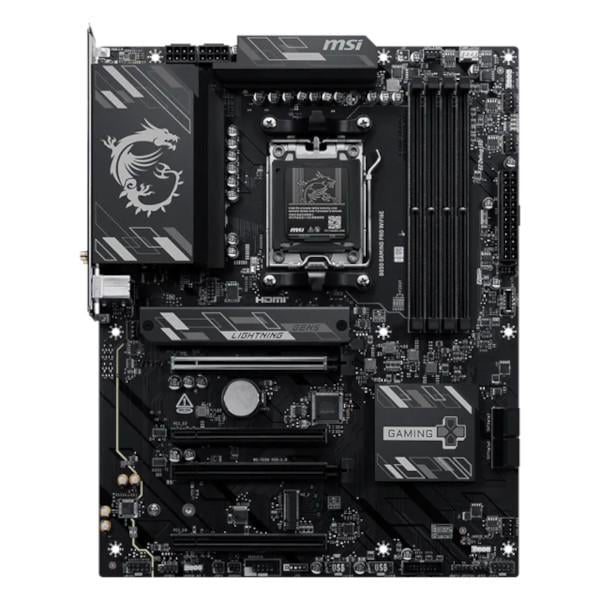

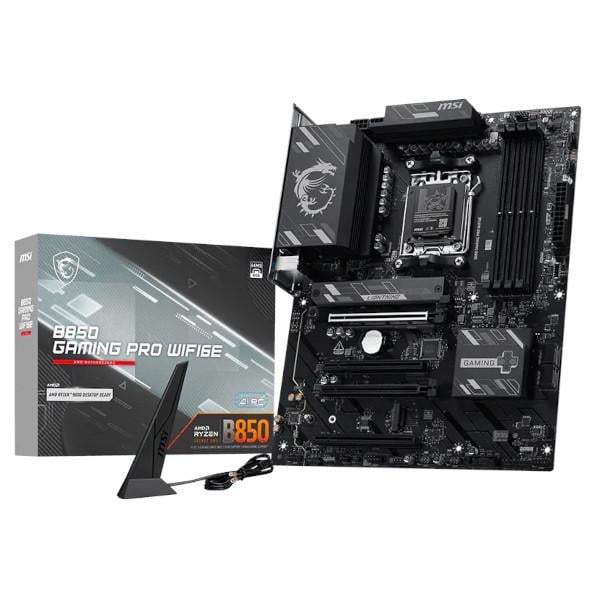

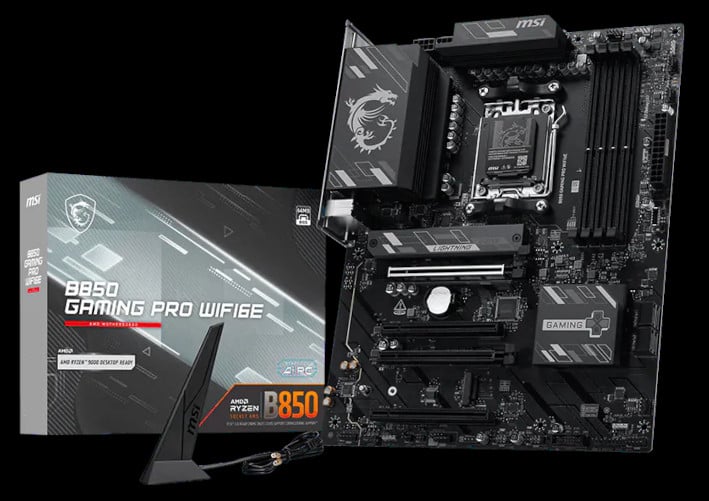

B850 GAMING PRO WIFI6E, ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 2 x M.2, 4 x SATA, 1 x 2.5 Gb LAN, Wi-Fi 6E, HDMI
£169.98 inc vat
£141.65 ex vat
The B850 GAMING PRO WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring the advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8200Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors PCI_E1 Gen PCIe 4.0 Supports PCIe 4.0 x8 (From CPU) AMD Ryzen™ 8500 & 8300 Series Desktop Processors PCI_E1 Gen PCIe 4.0 Supports PCIe 4.0 x4 (From CPU) AMD B850 Chipset PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Onboard Graphics | >1 x HDMI NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8700/ 8600/ 8400 Series Desktop Processors M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8500/ 8300 Series Desktop Processors M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x2 mode) |
| RAID |
M.2 NVMe storage devices RAID 0/1 SATA storage devices RAID 0/1/10 |
| USB Rear I/O |
4 x USB 5Gbps Type A 3 x USB 10Gbps Type A 1 x USB 10Gbps Type C |
| USB Internal Connectors | 4 x USB 2.0 2 x USB 5Gbps Type A 1 x USB 10Gbps Type C |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | Realtek® ALC897 7.1-Channel USB High Performance Audio |
| LAN | 1 x Realtek 2.5GB LAN |
| WIRELESS | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
| Back Panel Connectors | 1 x Clear CMOS Button 1 x DisplayPort 1.4 1 x 2.5G LAN 4 x USB 5Gbps (Type-A) 1 x Wi-Fi / Bluetooth 1 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI™ 3 x USB 10Gbps (Type-A) 1 x USB 10Gbps (Type-C) |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x 8-pin PCIe Power connector Storage 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 10Gbps Type C ports Miscellaneous 1 x EZ Conn-header (JAF_1) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 1 x OC dashboard connector(JDASH1) |
| Form Factor | ATX 305mm x 244mm |
