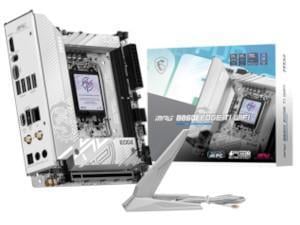

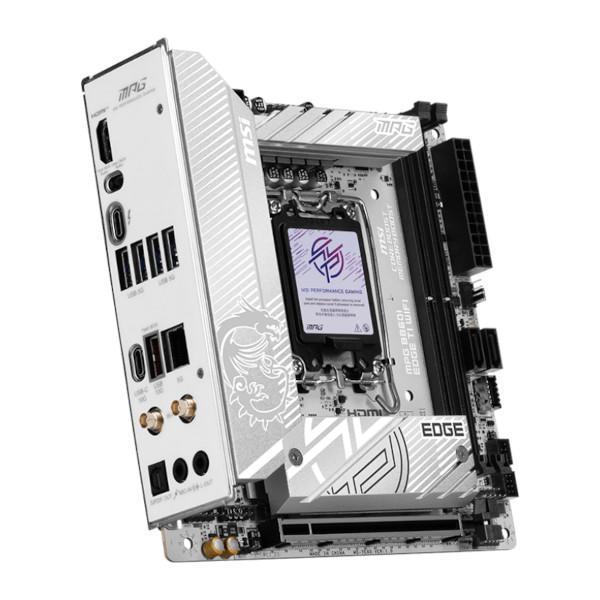

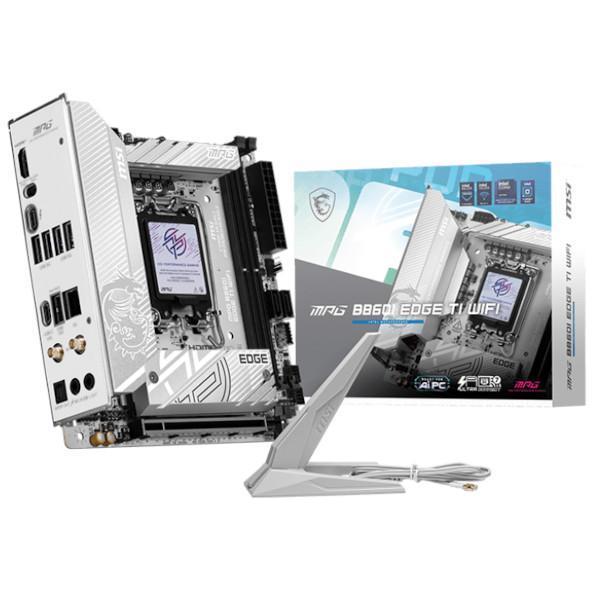

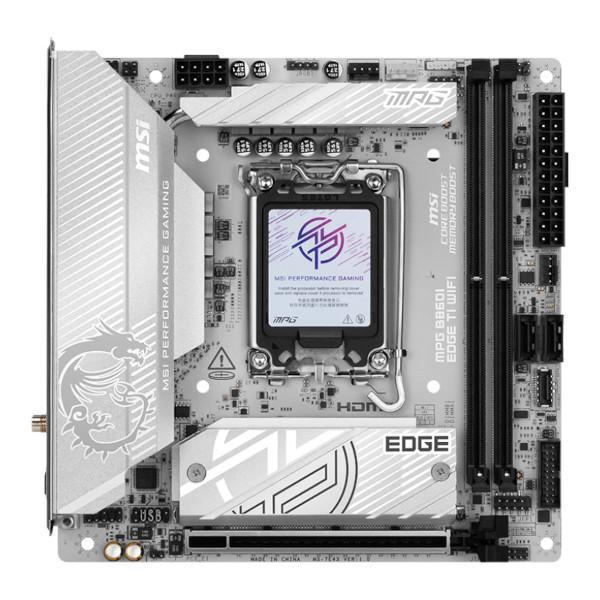

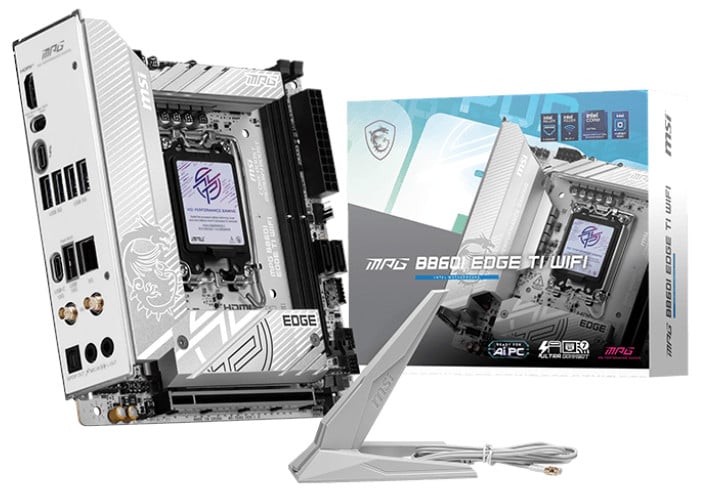

MPG B860I EDGE TI WIFI, Mini ITX, DDR5, 1 x PCIe 5.0 x16, 2 x M.2, 5GB LAN, WIFI 7, USB 4
£199.98 inc vat
£166.65 ex vat
MPG B860I EDGE TI WIFI is a mini-ITX B860 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt™ 4, PCIe 5.0 connecitvity. It is definetly the best B860 mini-ITX motherboard for Intel Core Ultra processors.
| CPU Support | Intel Core Ultra Processors (Series 2) |
| CPU Socket | LGA1851 |
| Chipset | B860 |
| Memory Support | 2 x DDR5 memory slots Dual Channel Memory Architecture Supporting up 128GB Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (supports x16 mode) |
| Onboard Graphics | 1 x HDMI® port 1x Type-C DisplayPort NOTE: Display support varies on CPU |
| Storage |
Intel Core Ultra Processors (Series 2) M.2_1 Source supports up to PCIe 5.0 x4 , supports 2280 devices Intel® B860 Chipset M.2_2 Source supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 2 x SATA 6Gb/s |
| RAID | SATA Devices: RAID 0/1/5 |
| USB Rear I/O | 4x USB 5Gbps Type A (Rear) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
| USB Internal Connectors | 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) |
| RGB LED Connectors | 1 x Addressable Gen2 headers |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Intel® Killer™ E5000B 5G LAN |
| WIRELESS | Intel® Killer™ BE1750x Wi-Fi 7 Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4 |

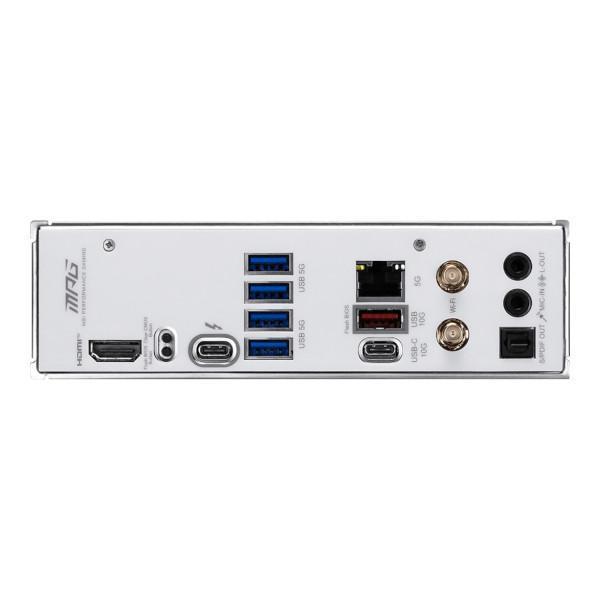

| Back Panel Connectors | Clear CMOS Button USB 5Gbps Type-A 5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Flash BIOS Button Thunderbolt 4 USB 10Gbps Type-C USB 10Gbps Type-A Optical S/PDIF Out |
| Internal Connectors |
Fan and Cooling 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan Power 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports Miscellaneous 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | Mini-ITX 170mm x 170mm |
| Operating System Support | Windows 11 64-bit |
