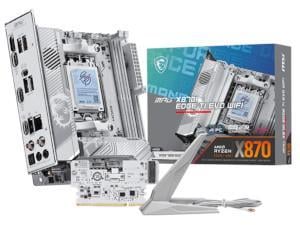

MPG X870I EDGE TI EVO WIFI, Mini-ITX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 4 x M.2, 1 x 5 Gb LAN, USB 4.0, WIFI 7, HDMI
£419.99 inc vat
£349.99 ex vat
This product is only available to buy when in stock
MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen™ 9000 series processors.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X870 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8400Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 (x16 Speed) AMD Ryzen 8700/8600/8400 Series Desktop Processors 1 x PCIe 4.0 x16 (x8 Speed) AMD Ryzen 8500/8300 Series Desktop Processors 1 x PCIe 4.0 x16 (x4 Speed) 1 x FP card slot Supports the installation of MSI 5-in-1 XPANDER card only. |
| Onboard Graphics | 1 x HDMI 2.1 2 x USB4 Type-C Display Outputs NOTE: Display support varies on CPU |
| Storage | 2 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 supports up to PCIe 4.0 x4 , supports 2280/2260 devices , single sieded M.2 SSD only AMD Ryzen 8000 Series Desktop Processors M.2_1 supports up to PCIe 4.0 x4 , supports 2280 devices 5-in-1 XPANDER Card M.2_3 supports up to PCIe 4.0 x4 , supports 2280/2260 devices , single sieded M.2 SSD only |
| RAID | NVMe Devices: RAID 0/1/5* Sata Devices: RAID 0/1 Note: RAID 5 configuration is only supported by Ryzen™ 9000 series processors. |
| USB Rear I/O | 5x USB 10Gbps Type A 1x USB 10Gbps Type C 2x USB 40Gbps Type C |
| USB Internal Connectors | 2x USB 5Gbps Type A 1x USB 20Gbps Type C |
| RGB LED Connectors | 1 x Addressable Gen 2 headers |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| LAN | 1 x Realtek 8126 5G LAN |
| WIRELESS | Wi-Fi 7 Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM |

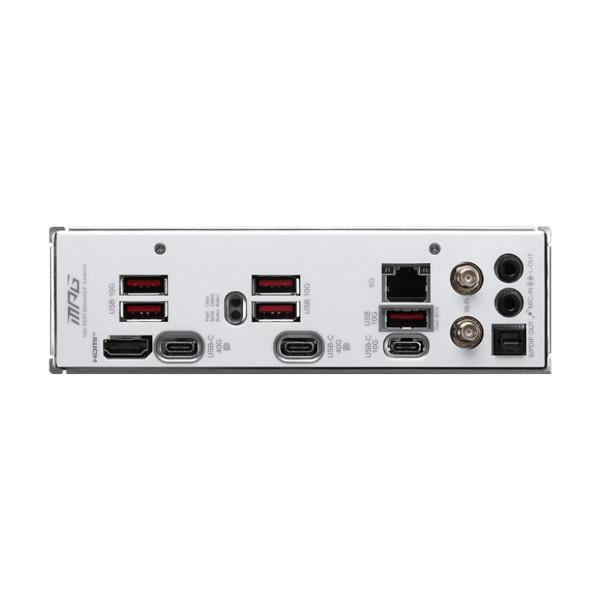

| Back Panel Connectors | 5 x USB 10Gbps Type-A 1 x Clear CMOS Button 1 x 5G LAN 1 x Wi-Fi / Bluetooth 1 x Audio Connectors 1 x HDMI™ 2 x USB 40Gbps Type-C 1 x Flash BIOS Button 1 x USB 10Gbps Type-C 1 x Optical S/PDIF Out |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 1 x System Fan Power 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) Storage 3 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports Miscellaneous 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) |
| Form Factor | Mini-ITX 170mm x 170mm |
