PRO B650M-P, Micro ATX, AM5, DDR5, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, 2 x M.2, 4 x SATA, 1 x 2.5 Gb LAN, HDMI, Dport, VGA
£109.98 inc vat
£91.65 ex vat
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 7200Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 (x8/x4 Speed) AMD X870 Chipset 2 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x HDMI 2.1 1 x DisplayPort 1 x VGA NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| RAID | SATA Devices: RAID 0/1/10 NVMe Devices: RAID 0/1 |
| USB Rear I/O | 2 x USB 10Gbps Type A (Rear) 2 x USB 5Gbps Type A (Rear) 4 x USB 2.0 (Rear) |
| USB Internal Connectors | 1 x USB 10Gbps Type C (Front) 2 x USB 5Gbps Type A (Front) 4 x USB 2.0 (Front) |
| RGB LED Connectors | 2 x Addressable Gen 2 headers 2 x RGB LED connector (JRGB) |
| Audio | Realtek ALC897 Codec 7.1-Channel USB High Performance Audio |
| LAN | 1 x Realtek 2.5G LAN |
| WIRELESS | None |

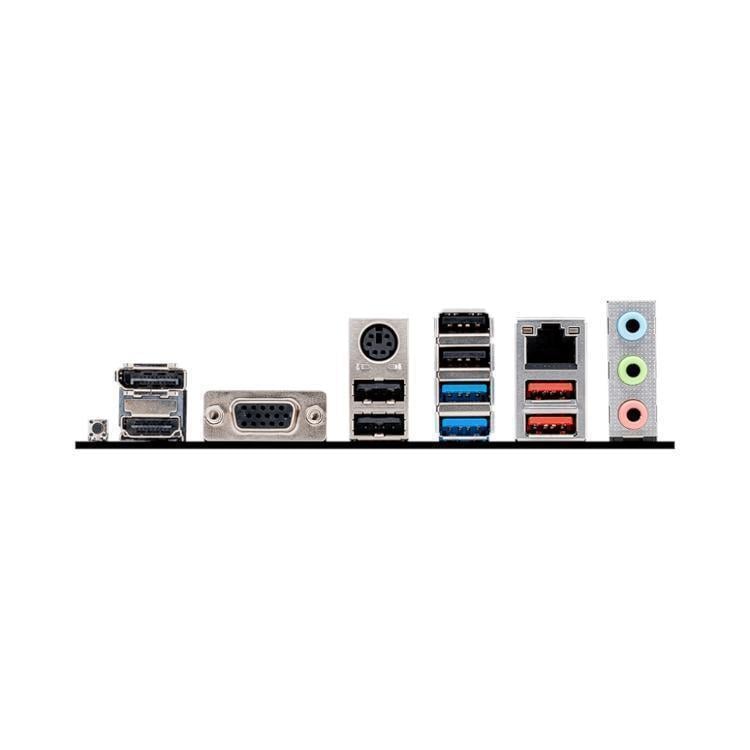

| Back Panel Connectors | 2 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 1 x 2.5G LAN 3 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI™ 1 x DisplayPort 1 x VGA 1 x Kyboard/Mouse Port |
| Internal Connectors |
Fan and Cooling 1 x CPU Fan 1 x Pump Fan 3 x System Fan Power 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) Storage 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps Type C (Front) 2 x USB 5Gbps Type A (Front) 4 x USB 2.0 (Front) Miscellaneous 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x TPM pin header(Support TPM 2.0) 4 x EZ Debug LED |
| Form Factor | Micro ATX 244mm x 244mm |
