MSI Z890 GAMING WIFI Intel Z890 Chipset Socket 1851 ATX Motherboard - Z890 GAMING WIFI

MSI Z890 GAMING WIFI Intel Z890 Chipset (Socket 1851) ATX Motherboard overview

Z890 GAMING WIFI

Z890 GAMING WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 2.5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.

CPU Support	Intel Core Ultra Processors (Series 2)
CPU Socket	LGA1851
Chipset	Z890
Memory Support	4 x DDR5 memory slots Dual Channel Technology Supporting up 256GB Supports up to 8800 Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU
Expansion Slots	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Onboard Graphics	1 x HDMI 2.1 1 x DisplayPort 1 x Type-C Display Outputs NOTE: Display support varies on CPU
Storage	4 x SATA 6Gb/s M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
RAID	SATA Devices: RAID 0/1/5/10 NVME Devices: RAID 0/1/5
USB Rear I/O	6 x USB 5Gbps Type A 1 x USB 20Gbps Type C
USB Internal Connectors	4 x USB 2.0 (Front) 2 x USB 5Gbps Type A 1 x USB 20Gbps Type C
Thunderbolt Connectors	1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
RGB LED Connectors	3 x Addressable V2 RGB LED connector 1 x RGB LED connector
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1 x Realtek® 8125D 2.5Gbps LAN
WIRELESS	Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM

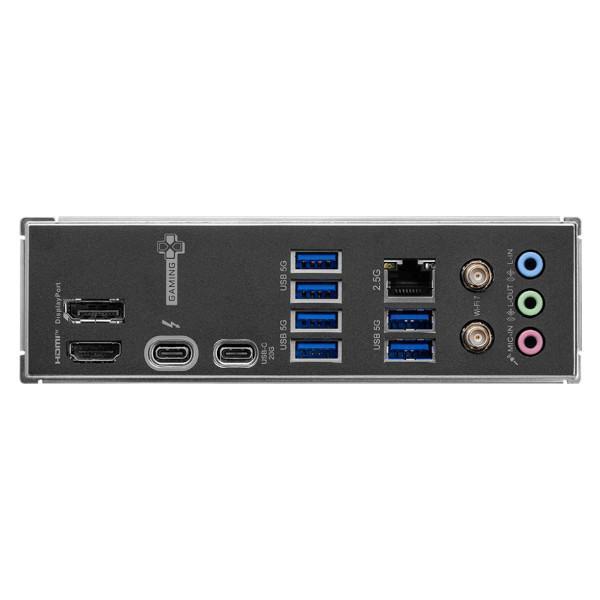

Back Panel Connectors	1 x DisplayPort 6 x USB 5Gbps Type-A ports 1 x 2.5G LAN 1 x Wi-Fi / Bluetooth 1 x Audio Connectors 1 x HDMI™ 1 x Thunderbolt™ 4 40Gbps (Type-C) 1 x USB 20Gbps Type-C port
Internal Connectors	Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 4 x System Fan Power 1 x Thunderbolt5 card connector(JTBT5, support RTD3) 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x Power Connector(PCIE_PWR 8pin) Storage 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4 x USB 2.0 ports 2 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports Miscellaneous 1 x EZ Conn-header (JAF_1) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector(JDASH) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0)
Form Factor	ATX 305mm x 244mm
Operating System Support	Windows 11 64-bit
