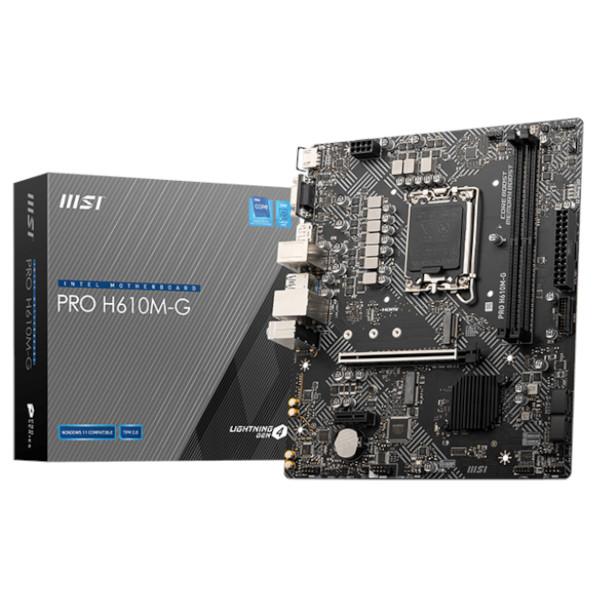

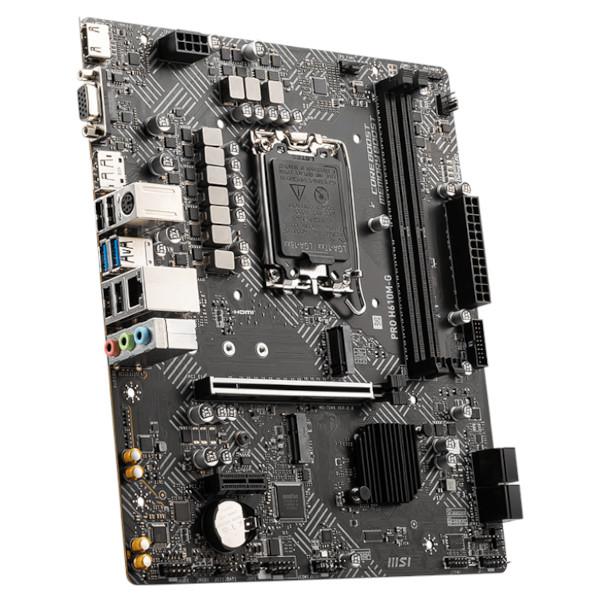

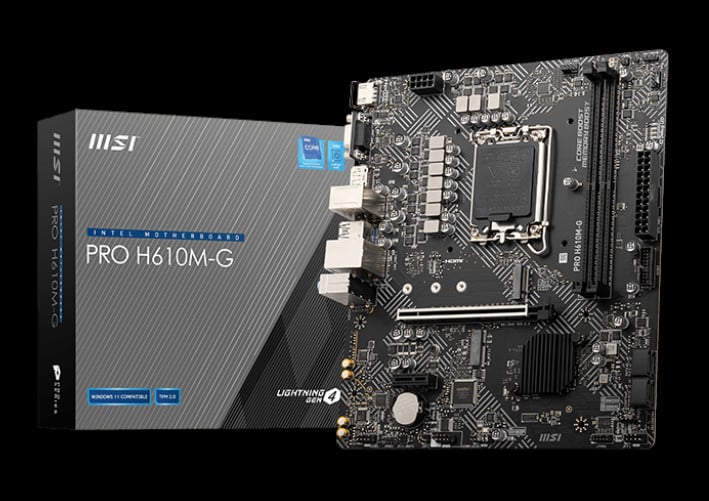

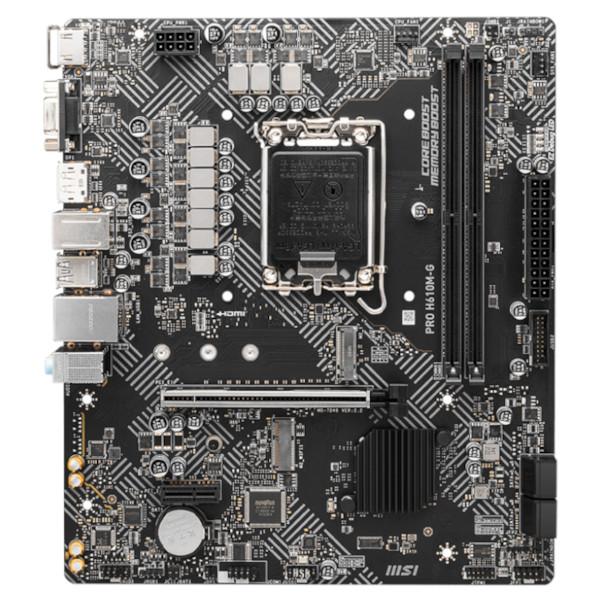

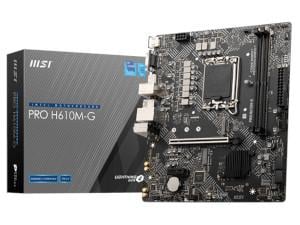

PRO H610M-G, Micro ATX, LGA1700, DDR5, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x 1, 4 x SATA, 1 x M.2, 1Gb Ethernet, HDMI, DPort, DSub
£79.98 inc vat
£66.65 ex vat
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
| CPU Support | 12th / 13th / 14th Gen Intel Core Processors, Ptentium Gold and Celeron Processors |
| Processor Socket | LGA1700 |
| Chipset | Intel H610 Express |
| Memory Support | 2 x DDR5 memory slots supporting up 96GB Dual Channel Technology Supports up to 5600Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 Speed) 1 x PCIe 3.0 x1 |
| Onboard Graphics | 1 x HDMI 2.1 1 x Displayport 1 x DSub (VGA) NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s 1 x M.2 Key M, 2242/2260/2280, (PCIe 3.0 x4 Mode) |
| RAID | N/A |
| USB Rear I/O | 2 x USB 5Gbps Type A 4 x USB 2.0 Type-A |
| USB Internal Connectors | 1 x USB 5Gbps Type A 2 x USB 2.0 Header |
| Thunderbolt | N/A |
| RGB LED Connectors | 2 x Addressable RGB LED connector(JRAINBOW) |
| Audio | Realtek ALC897 Codec 7.1 HD Audio |
| LAN | 1 x Realtek GB LAN |
| WIRELESS | N/A |

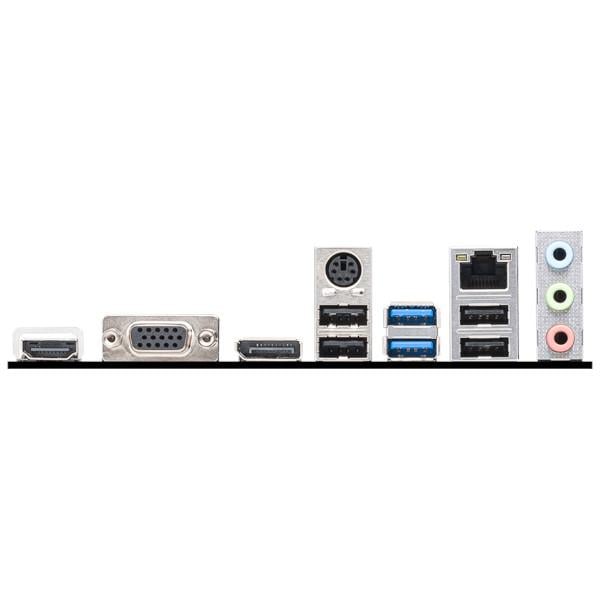

| Back Panel Connectors | 1 x HDMI 1 x VGA 1 x DisplayPort 1 x Keyboard / Mouse 2 x USB 3.2 Gen 1 5Gbps Type-A 1 x LAN port 3 x Audio connector 4 x USB 2.0 |
| Internal Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin +12V power connector 1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | Micro ATX 236mm x 200mm |
