ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 5 x M.2, 1 x 5 Gbe LAN, Wi-Fi 7
£351.98
£269.99 inc vat
£224.99 ex vat
You save £82.00

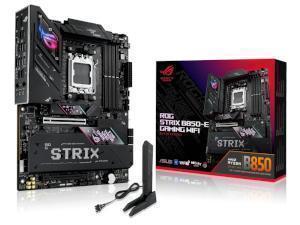

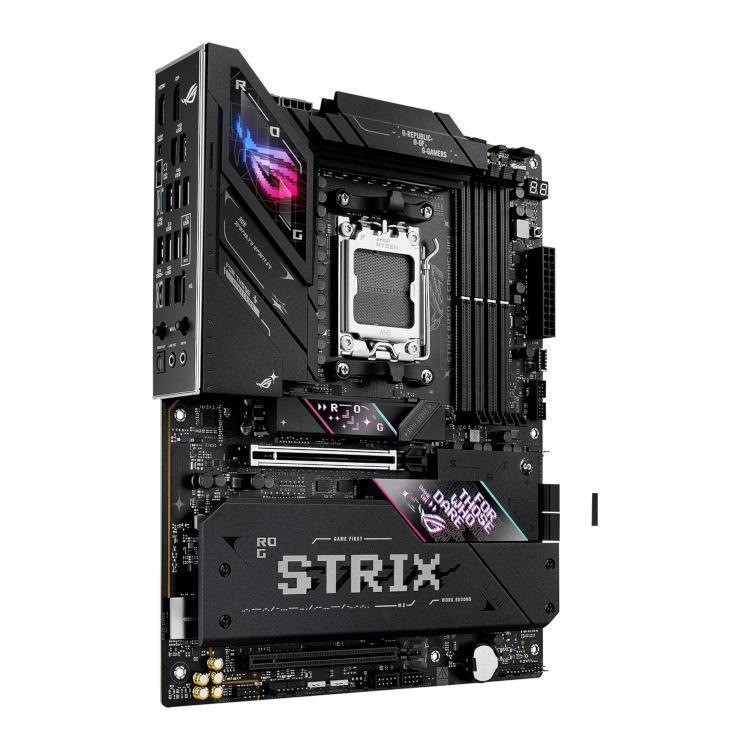

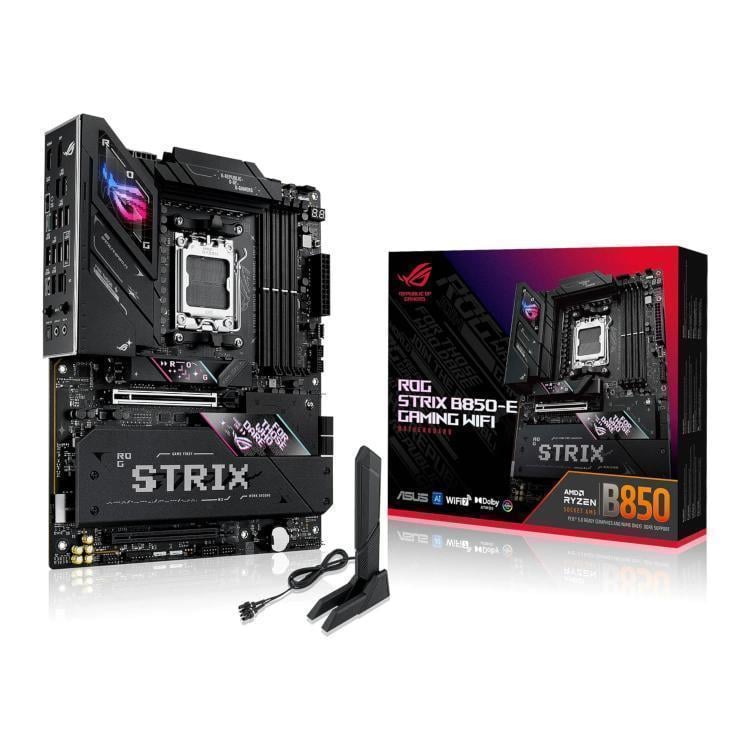

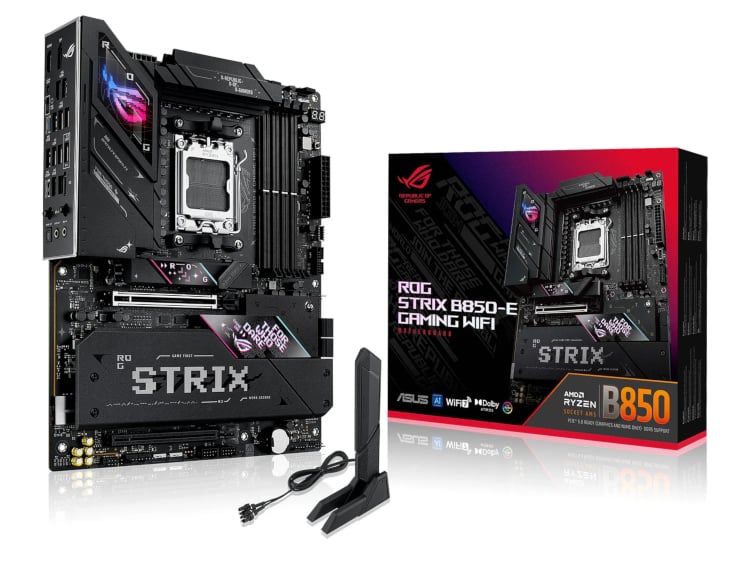

The ROG Strix B850-E Gaming WiFi is engineered to harness the full potential of AMD Ryzen 9000 Series processors. Featuring PCIe 5.0 support, AI Overclocking, AI Networking II, and AEMP, setup is streamlined while performance is maximized. One USB4 Type-C port and WiFi 7 with Realtek 5Gb Ethernet ensure top-tier connectivity, while robust heatsinks keep M.2 drives cool under heavy loads. This motherboard not only meets the demands of gaming and professional applications but also delivers the power and connectivity essential for advanced AI PC applications.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8000Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 5.0 x16 (x8 Speed or x4 Speed) AMD B850 Chipset 1 x PCIe 4.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI 1 x USB4 NOTE: Display support varies on CPU |
| Storage | 4 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series-Pheonix Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B850 Chipset M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) NOTE: For full M.2 PCIe configuration support please visit motherboard manufacturer website support page |
| RAID |
AMD Ryzen 9000 Series Desktop Processors RAID 0/1/5/10 AMD Ryzen 8000 Series-Pheonix Desktop Processors RAID 0/1 AMD Ryzen 7000 Series Desktop Processors RAID 0/1/10 |
| USB Rear I/O | 1 x USB4® (40Gbps) port(1 x USB Type-C®) 1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge) 6 x USB 10Gbps ports (6 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| USB Internal Connectors | 1 x USB 10Gbps connector (1 x USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound Realtek ALC4080 High Definition Audio |
| LAN | 1 x Realtek 5Gbps LAN controller |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate Bluetooth® v5.4 |

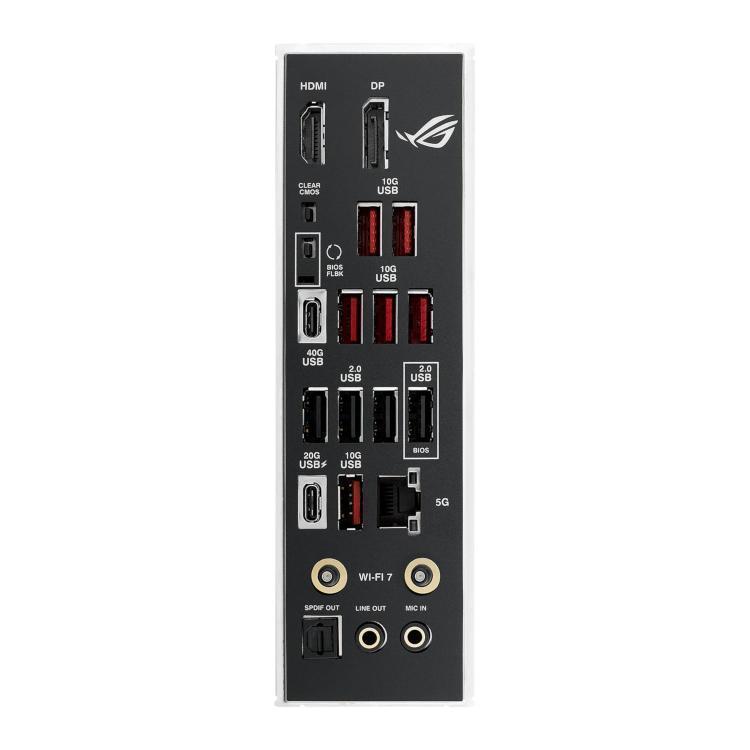

| Back Panel Connectors | 1 x USB4® (40Gbps)(1 x USB Type-C®) 1 x USB 20Gbps port 6 x USB 10Gbps ports (6 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Form Factor | ATX 305mm x 244mm |
