Mini-ITX, AM5, DDR5, 1 x PCIe 5.0 x16, 2 x M.2, 1 x 2.5 Gbe LAN, Wi-Fi 7
£321.98
£299.99 inc vat
£249.99 ex vat
You save £22.00
Or £12.96 for 24 monthswith 10% deposit of £30.00
The ROG Strix B850-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory Support | 2 x DDR5 memory slots supporting up 128GB Dual Channel Technology Supports up to 8400Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (x16 Speed) |
| Onboard Graphics | 1 x USB Type-C 1 x HDMI NOTE: Display support varies on CPU |
| Storage | 2 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series-Pheonix Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) NOTE: For full M.2 PCIe configuration support please visit motherboard manufacturer website support page |
| RAID | None |
| USB Rear I/O | 1 x USB 20Gbps port(s) (1 x USB Type-C) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C) 2 x USB 2.0 port(s) (2 x Type-A) |
| USB Internal Connectors | 1 x USB 10Gbps 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 por |
| RGB LED Connectors | 2 x Addressable Gen 2 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound Realtek CODEC ALC4080 High Definition Audio |
| LAN | 1 x Intel 2.5Gbps LAN controller |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4 |

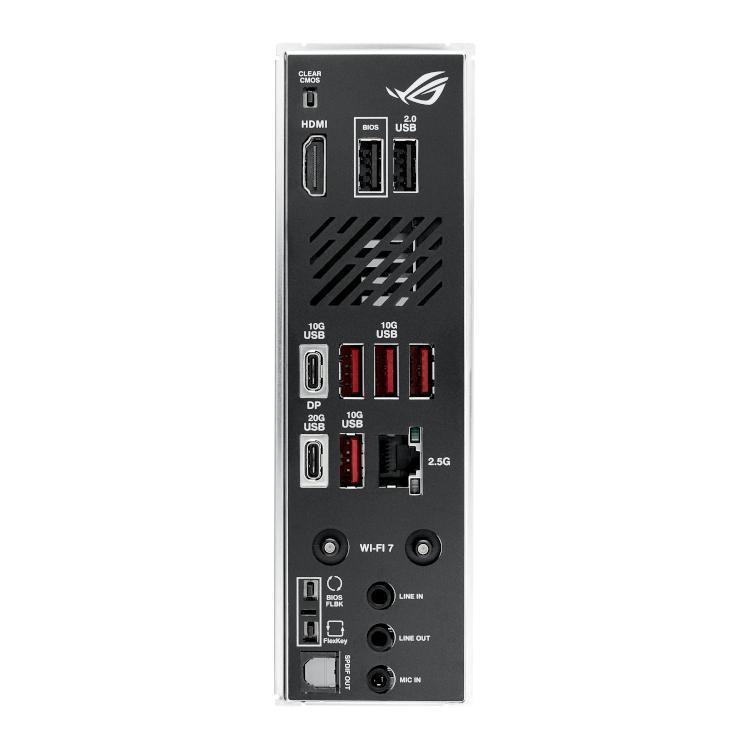

| Back Panel Connectors | 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button 1 x FlexKey button |
| Internal Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Extra Flow Fan header 1 x 4-pin AIO Pump header 1 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Form Factor | Mini ITX 170mm x 170mm |
