ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 4 x M.2, 1 x 2.5 Gbe LAN, Wi-Fi 7
£313.79 inc vat
£261.49 ex vat
Or £13.56 for 24 monthswith 10% deposit of £31.38

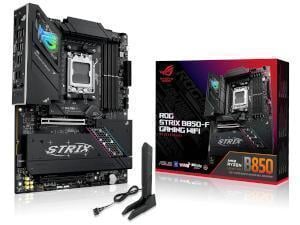

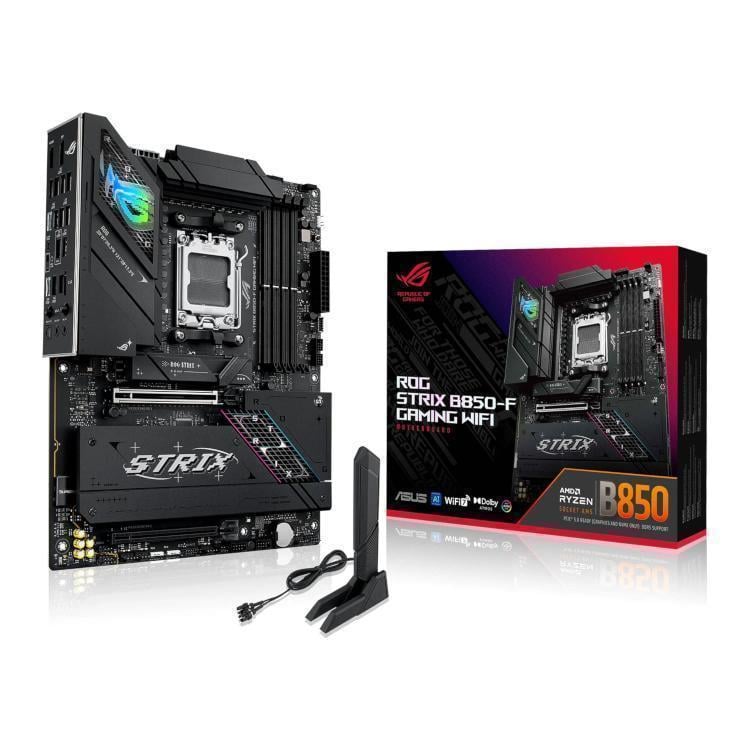

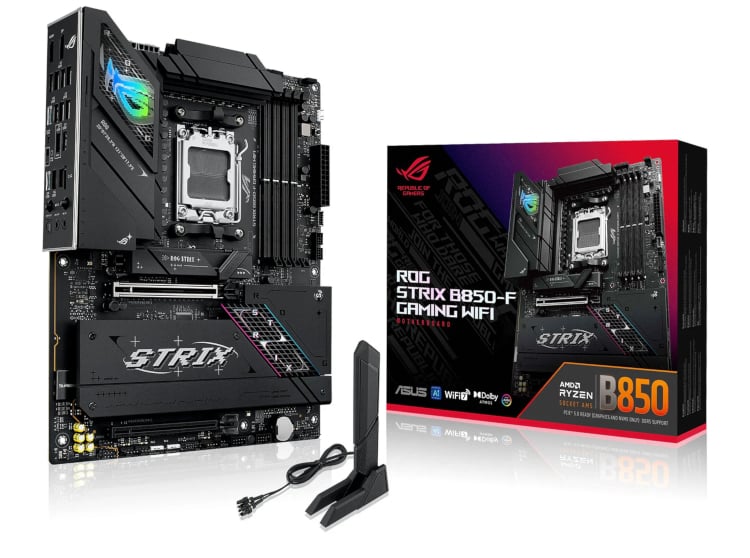

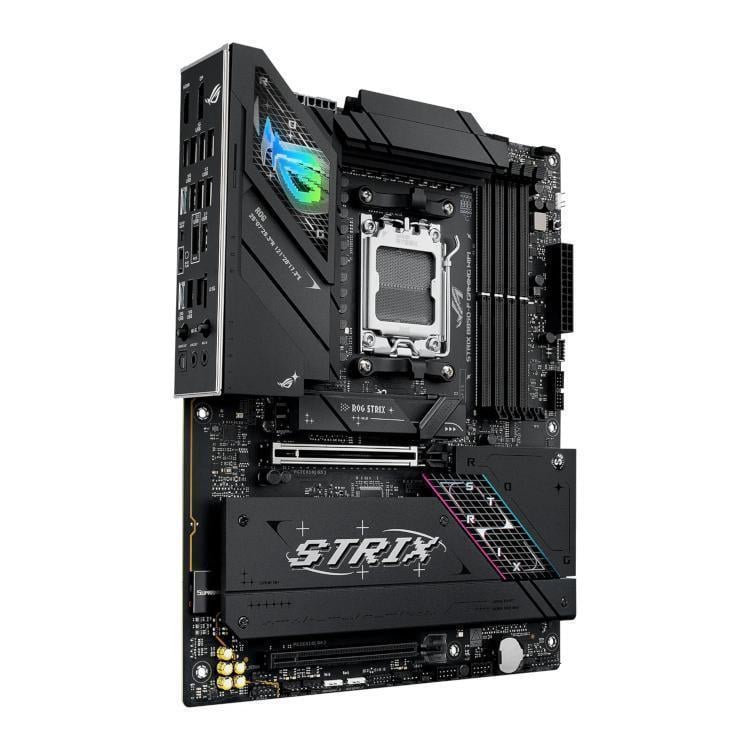

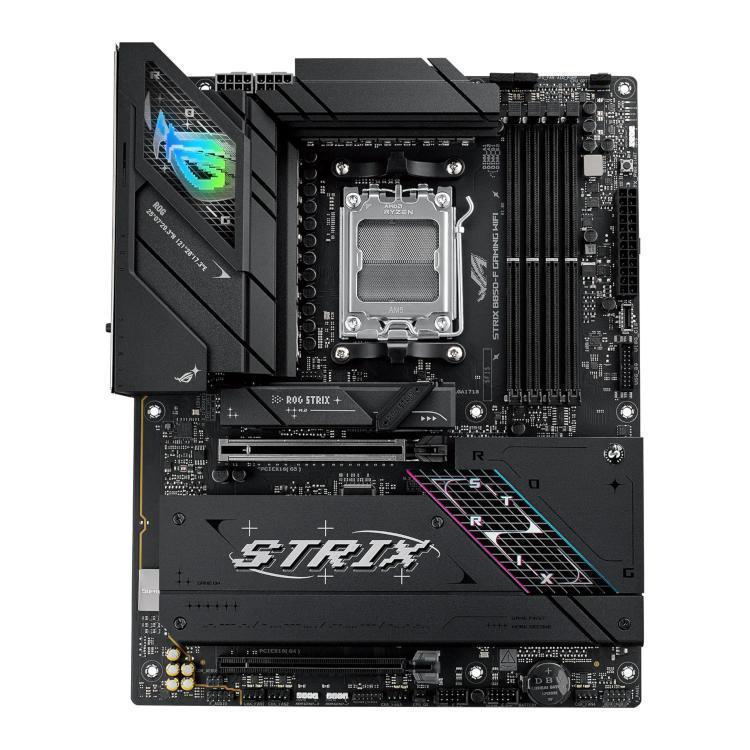

The ROG Strix B850-F Gaming WiFi is built to dominate with AMD Ryzen 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance. In addition, the total support of 19 USB ports including USB 20Gbps, as well as WIFI 7 and 2.5Gbps ethernet, provides cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD B850 Chipset |
| Memory Support | 4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8000Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 (x16 Speed) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 5.0 x16 (x8 Speed or x4 Speed) AMD B850 Chipset 1 x PCIe 4.0 x16 (x4 Speed) |
| Onboard Graphics | 1 x DisplayPort 1 x HDMI NOTE: Display support varies on CPU |
| Storage | 2 x SATA 6Gb/s AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series-Pheonix Desktop Processors M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4) M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) NOTE: For full M.2 PCIe configuration support please visit motherboard manufacturer website support page |
| RAID |
AMD Ryzen 9000 Series Desktop Processors RAID 0/1/5/10 AMD Ryzen 8000 Series-Pheonix Desktop Processors RAID 0/1 AMD Ryzen 7000 Series Desktop Processors RAID 0/1/10 |
| USB Rear I/O | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| USB Internal Connectors | 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen 2 headers |
| Audio | ROG SupremeFX 7.1 Surround Sound Realtek ALC4080 High Definition Audio |
| LAN | 1 x Realtek 2.5Gbps LAN controller |
| WIRELESS | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate Bluetooth v5.4 |

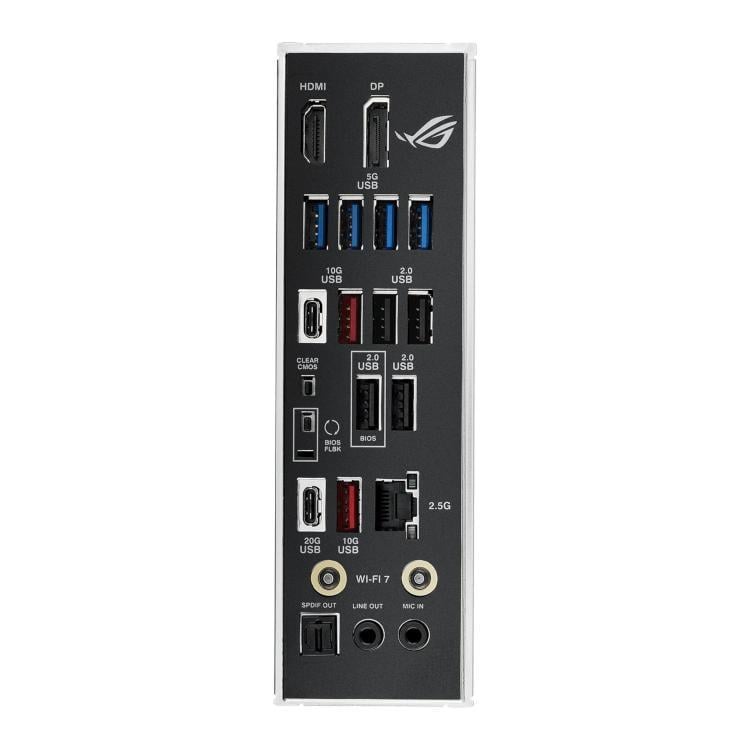

| Back Panel Connectors | 1 x USB 20Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button |
| Internal Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Power button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header |
| Form Factor | ATX 305mm x 244mm |
