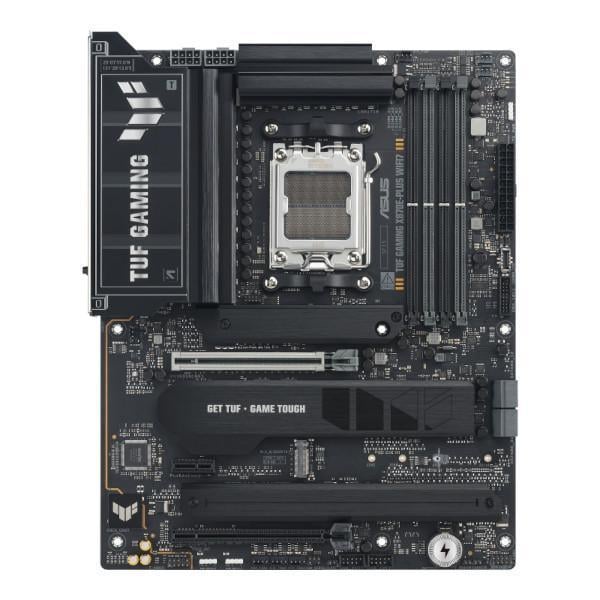

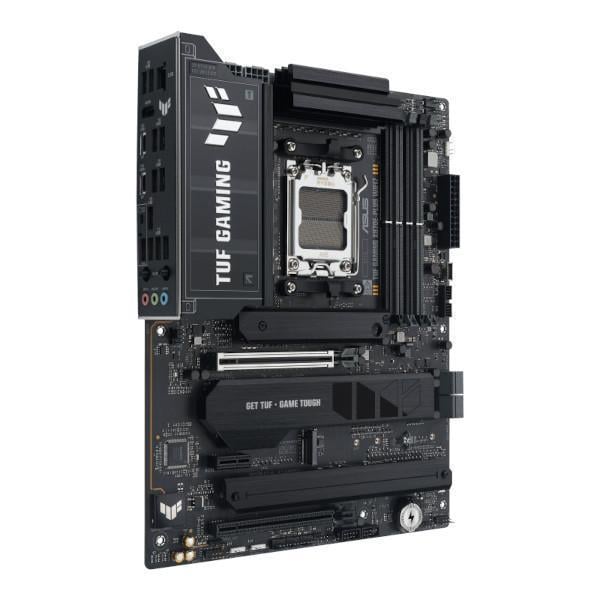

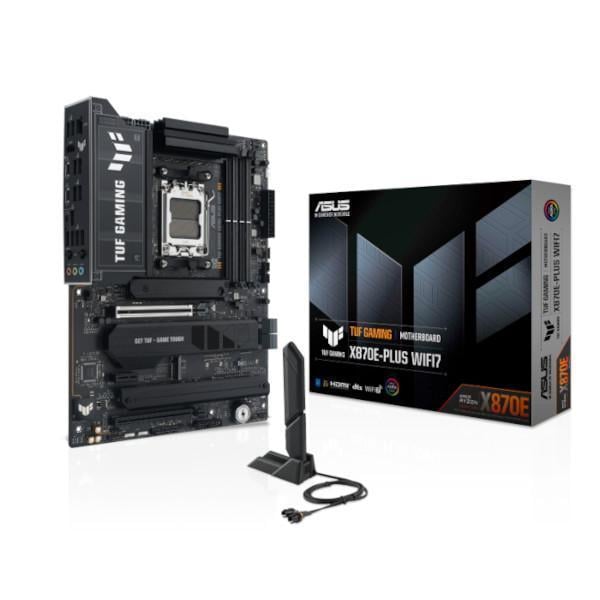

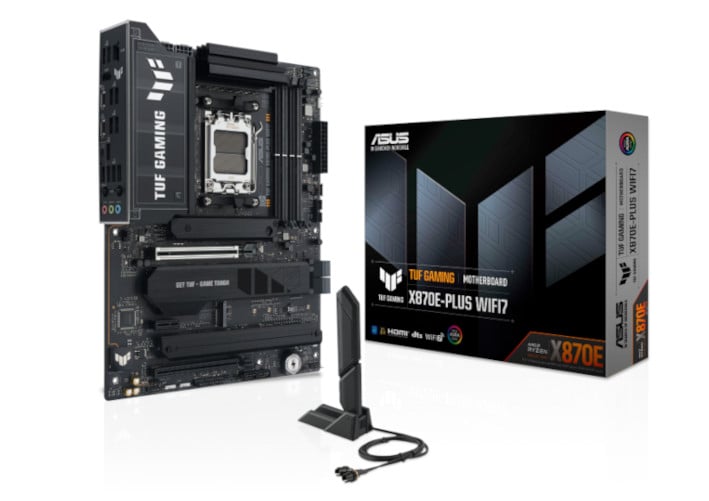

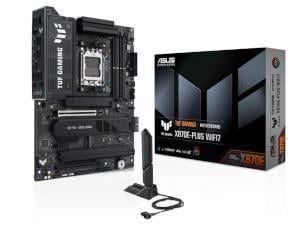

TUF GAMING X870E-PLUS WIFI7ATX, AM5, DDR5, 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16(x4), 1 x PCIe 3.0 x1 Slot, 4 x M.2, 1 x 2.5 Gb LAN, USB 4.0, WIFI 7
£315.98
£279.98 inc vat
£233.32 ex vat
You save £36.00
Or £12.09 for 24 monthswith 10% deposit of £28.00
ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
| CPU Support | Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors |
| CPU Socket | AM5 |
| Chipset | X870E |
| Memory Support | 4 x DDR5 memory slots Dual Channel Memory Architecture Supporting up to 256GB Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered NOTE: Actual Memory data rate varies on CPU |
| Expansion Slots |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 Slot |
| Onboard Graphics | 1 x HDMI® port 2 x USB4® (40Gbps) ports support USB Type-C® display outputs NOTE: Display support varies on CPU |
| Storage |
AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot is not supported AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s |
| RAID | Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10 |
| USB Rear I/O | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
| USB Internal Connectors | 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| RGB LED Connectors | 3 x Addressable Gen2 headers |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel" Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers Audio cover Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| LAN | 1 x Intel® 2.5Gb Ethernet |

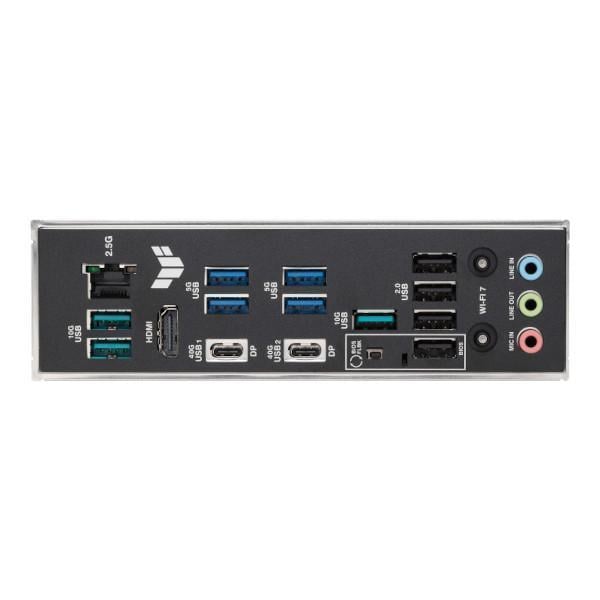

| Back Panel Connectors | 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal Connectors |
Fan and Cooling 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
| Form Factor | ATX 305mm x 244mm |
| Operating System Support | Windows 11 64-bit |
