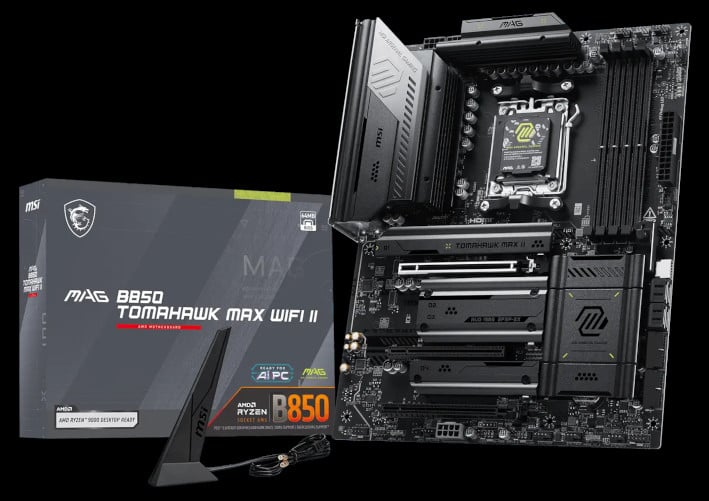

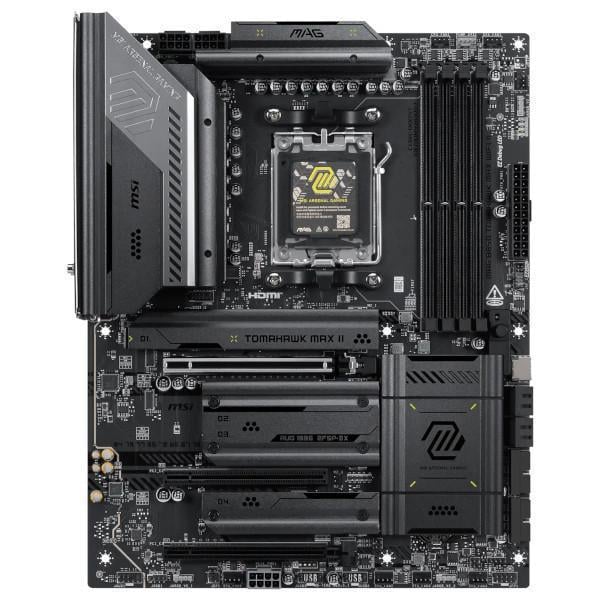

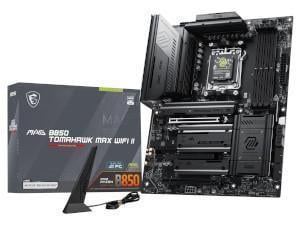

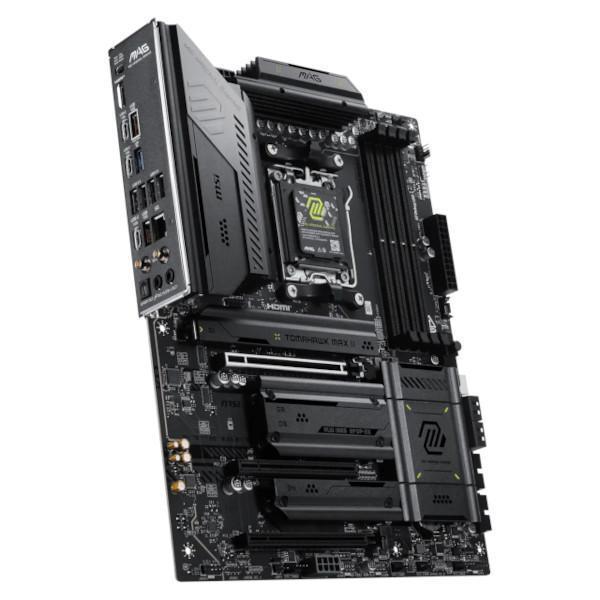

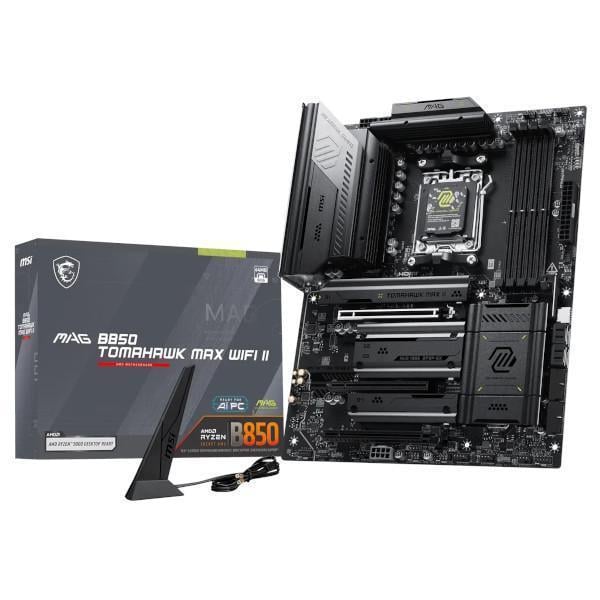

MSI MAG B850 TOMAHAWK MAX WIFI II AMD B850 Chipset AM5 ATX Motherboard - MAG B850 TOMAHAWK MAX WIFI II

MSI MAG B850 TOMAHAWK MAX WIFI II AMD B850 Chipset (AM5) ATX Motherboard overview

MAG B850 TOMAHAWK MAX WIFI II

MAG B850 TOMAHAWK MAX WIFI II is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with the latest Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

CPU Support	Supports AMD Ryzen 9000 Series Desktop Processors Supports AMD Ryzen 8000 Series Desktop Processors Supports AMD Ryzen 7000 Series Desktop Processors
Chipset	AMD B850 Chipset
Memory Support	4 x DDR5 memory slots supporting up 256GB Dual Channel Technology Supports up to 8400Mhz non-ECC, un-buffered memory NOTE: Actual Memory data rate varies on CPU
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors PCI_E1 Gen PCIe 4.0 Supports PCIe 4.0 x8 (From CPU) AMD Ryzen™ 8500 & 8300 Series Desktop Processors PCI_E1 Gen PCIe 4.0 Supports PCIe 4.0 x4 (From CPU) AMD B850 Chipset PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Onboard Graphics	>1 x HDMI NOTE: Display support varies on CPU
Storage	4 x SATA 6Gb/s AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8700/ 8600/ 8400 Series Desktop Processors M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8500/ 8300 Series Desktop Processors M.2_1 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x2 mode) AMD X870E Chipset M.2_3 slot (Key M), type 2260/2280 (supports PCIe 4.0 x2 mode) M.2_4 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
RAID	M.2 NVMe storage devices RAID 0/1/10
USB Rear I/O	4 x USB 2.0 1 x USB 5Gbps Type A 2 x USB 10Gbps Type A 3 x USB 10Gbps Type C
USB Internal Connectors	4 x USB 2.0 4 x USB 5Gbps Type A 1 x USB 20Gbps Type C
RGB LED Connectors	3 x Addressable Gen 2 headers
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
LAN	1 x Realtek 5GB LAN
WIRELESS	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM

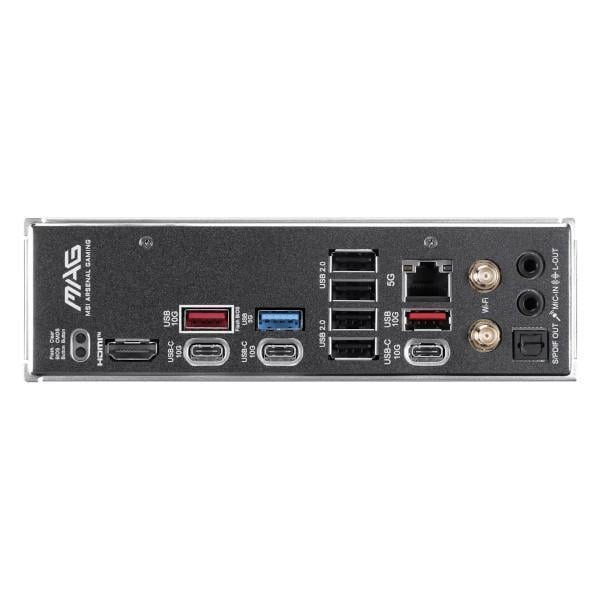

Back Panel Connectors	1 x Clear CMOS Button 2 x USB 10Gbps Type-A 1 x USB 5Gbps Type-A 4 x USB 2.0 1 x 5G LAN 1 x Wi-Fi / Bluetooth 1 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI™ 3 x USB 10Gbps Type-C 1 x Optical S/PDIF-OUT
Internal Connectors	Fan and Cooling 1 x CPU Fan 1 x Combo Fan (Pump_Sys Fan) 6 x System Fan Power 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x 8-pin PCIe Power connector Storage 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 20Gbps Type C ports Miscellaneous 1 x EZ Conn-header (JAF_2) 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 3 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 2 x Direct OC Jumper (JBCLK)
Form Factor	ATX 305mm x 244mm
